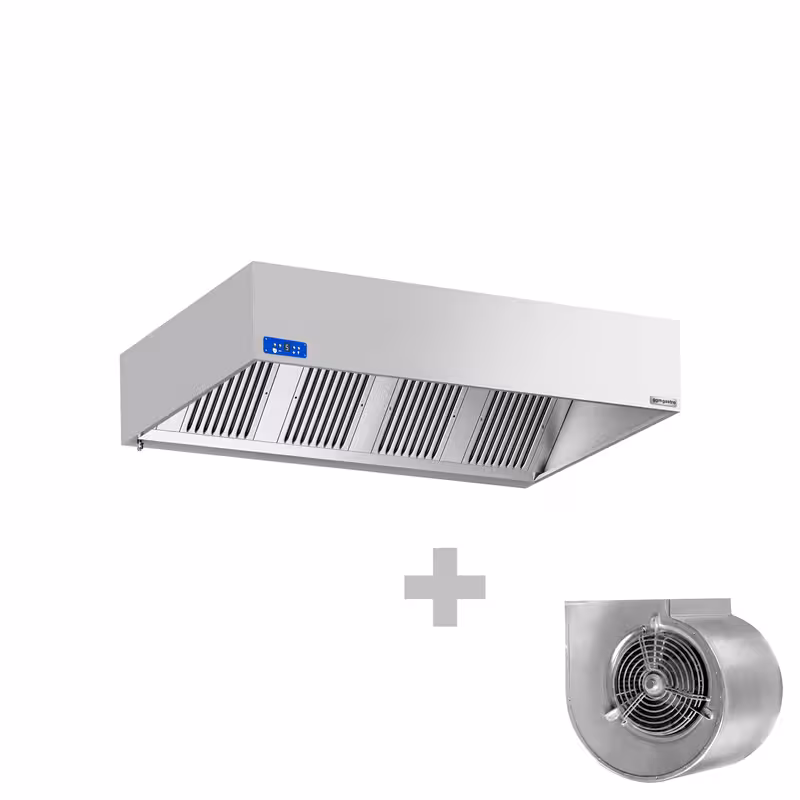

Commercial Wall-Mounted Extractor Hood with Motor - 2200mm - with Speed Controller, Baffle Filters & Lighting
Installation depth: 1400 mm
SKU KLS2214M
* The picture may slightly differ from the original.
Print* net price | gross price incl. 19% VAT.: €1,533.90
Commercial Wall-Mounted Extractor Hood with Motor - 2200mm - with Speed Controller, Baffle Filters & Lighting
SKU KLS2214M
Installation depth: 1400 mm
Print* net price | gross price incl. 19% VAT.: €1,533.90
Accessories (5)
Spare Parts (4)
Product Advantages
- Made in Italy: Represents high-quality Italian manufacturing and guarantees first-class product quality.
- Single-block structure made of AISI 304 stainless steel: Provides high stability and durability through robust material.
- Grease-free labyrinth filters made of 18/10 stainless steel: Ensure efficient fat separation and facilitate cleaning.
Description
Robust Box Canopy with Integrated Motor
This box canopy with motor offers an ideal solution for professional kitchens and industrial applications with a width of 2200 mm. It impresses with its compact yet robust design, ensuring a long service life. Thanks to the integrated lighting, optimal illumination of the work area is guaranteed. The built-in controller allows for simple and precise power regulation.High-Quality Materials and Thoughtful Construction
Manufactured from AISI 304 stainless steel, the canopy stands out due to its high-quality workmanship and an electronically welded single-block structure. The drip-free, hermetic gutter safely collects fats and, with drain taps, ensures easy cleaning. The grease-free labyrinth filter made of 18/10 stainless steel guarantees efficient filtration and long maintenance intervals. The surface is Scotch-Brite satin-finished, providing an attractive appearance and easy care.Conclusion and Areas of Application
This box canopy is perfectly suited for use in large-scale kitchens, restaurants, or other commercial areas where reliable extraction and grease separation are necessary. The quick installation and easy operation make it particularly user-friendly. With its high-quality material mix and thoughtful construction, it offers a durable and effective solution for demanding kitchen environments.Installation & Operation
- ⚠️ Pipe diameters should always remain consistent or only be professionally reduced as planned.
- ⚠️ An incorrect reduction can affect the entire system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel are designed to be cleaned in a commercial dishwasher.
- Daily cleaning prevents burning in or resin build-up.
- Carefully lift the filter out of the holder (caution: fat droplets!).
- In case of heavy soiling, rinse off coarse fat with hot water.
- Wash in the dishwasher at high temperatures (at least 60–70 °C) using a fat-dissolving detergent.
- The filters must be completely dry before being reinserted to prevent mould or bacterial growth.
Technical data
Dimensions
| Width | 2.200 mm |
|---|---|
| Depth | 1.400 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 500 mm |
Drain dimensions:
| Width | 260 mm |
|---|---|
| Depth | 300 mm |
Details
| Number of filters | 4 |
|---|---|
| Extraction rate | 2.400 m³/h |
| Air turnover per hour | 2.200 m³ |
Connected load
| Power | 420 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 80 kg |
| Net weight | 61 kg |
Download / Exploded drawing
Download / Exploded drawing
Safety and disposal instructions
Safety and disposal instructions
Download / Exploded drawing
Safety and disposal instructions
