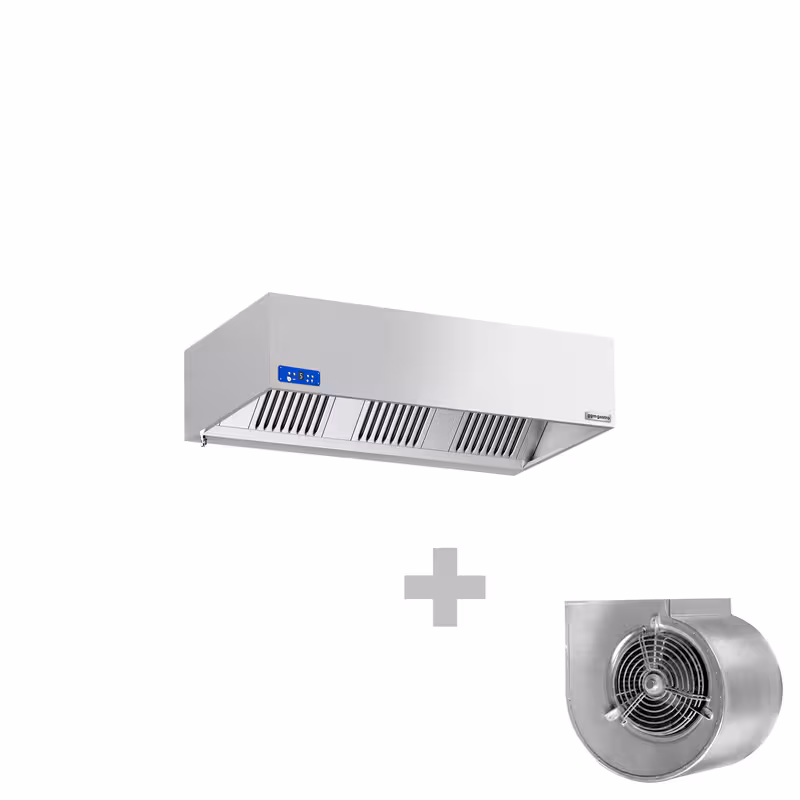

Commercial Wall-Mounted Extractor Hood with Motor - 1800mm - with Speed Controller, Baffle Filters & Lighting
* The picture may slightly differ from the original.
Commercial Wall-Mounted Extractor Hood with Motor - 1800mm - with Speed Controller, Baffle Filters & Lighting
Product Advantages
- Made in Italy: Represents high-quality craftsmanship and Italian quality standards.
- Single-block structure made of AISI 304 stainless steel: Ensures durable robustness and easy cleaning.
- Grease-free labyrinth filters made of 18/10 stainless steel: Guarantee effective grease separation and hygienic operation.
Description
Robust box canopy with integrated motor
This high-quality box canopy with a width of 1800 mm is ideal for use in professional kitchens or industrial work areas. It impresses with a compact and robust design that guarantees long service life and reliable operation. Thanks to the integrated motor with controller, the ventilation levels can be precisely adjusted, ensuring optimal air circulation.
Thoughtful details for maximum functionality
The canopy is electronically welded and features a drip-free, hermetic gutter for collecting grease, equipped with practical drain taps. This allows for easy cleaning and prevents unpleasant odours. The surface is Scotch-Brite satin finish, which not only looks appealing but is also resistant to scratches and dirt. Additionally, lighting is integrated to illuminate the work area optimally. The grease-free labyrinth filters made of 18/10 stainless steel guarantee efficient filtration and are easy to clean.
Conclusion and areas of application
This box canopy is perfectly suited for kitchens, workshops, or laboratory areas where reliable extraction and grease separation are necessary. The combination of high-quality materials and thoughtful design makes it a durable and low-maintenance solution. Thanks to the installation in minutes, it is quickly ready for use and immediately provides optimal air quality.
Installation & Operation
- ⚠️ Pipe diameters should always remain consistent or only be reduced with professional planning.
- ⚠️ An incorrect reduction can affect the entire system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel are designed to be cleaned in a commercial dishwasher.
- Daily cleaning prevents burning in or resin build-up.
- Carefully lift the filter out of the holder (caution: fat droplets!).
- In case of heavy soiling, rinse off coarse fat with hot water.
- Wash in the dishwasher at high temperatures (at least 60–70 °C) using a fat-dissolving detergent.
- The filters must be completely dry before being reinserted to prevent mould or bacterial growth.
Technical data
Dimensions
| Width | 1.800 mm |
|---|---|
| Depth | 900 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 500 mm |
Drain dimensions:
| Width | 210 mm |
|---|---|
| Depth | 230 mm |
Details
| Number of filters | 3 |
|---|---|
| Extraction rate | 1.800 m³/h |
| Air turnover per hour | 1.300 m³ |
Connected load
| Power | 147 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 75 kg |
| Net weight | 52 kg |
Download / Exploded drawing
