Commercial Wall-Mounted Extractor Hood with Motor - 1600mm - with Speed Controller, Baffle Filters & LED Lighting
* The picture may slightly differ from the original.

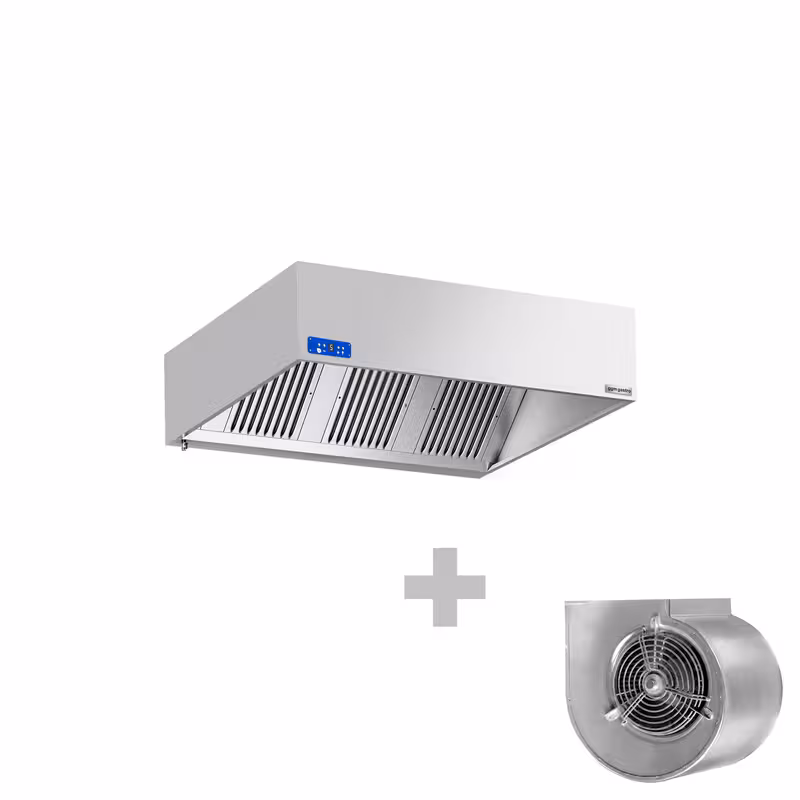

Commercial Wall-Mounted Extractor Hood with Motor - 1600mm - with Speed Controller, Baffle Filters & LED Lighting
Product Advantages
- Made in Italy: Signifies high-quality craftsmanship and durable quality.
- Single-block structure made of AISI 304 stainless steel: Provides robust stability and easy cleaning.
- Fat-free labyrinth filters made of 18/10 stainless steel: Ensure efficient fat separation and hygienic operation.
Description
Product Overview
The box canopy with motor is a powerful and compact solution for professional ventilation in commercial kitchens. With a width of 1600 mm, it provides sufficient surface area to effectively extract cooking vapours. The integrated lighting system ensures optimal visibility while working. The built-in controller allows the power to be flexibly adjusted according to demand.
Product Details
The canopy impresses with its high-quality workmanship, featuring electronically welded seams that ensure long-lasting stability. The drip-free, hermetic gutter safely collects fats and is equipped with practical drain taps that facilitate easy cleaning. The material is Scotch-Brite satin finish and made from AISI 304 stainless steel, providing a robust and hygienic surface. The fat drain tap and the fat-free labyrinth filters made of 18/10 stainless steel guarantee efficient fat separation and easy maintenance. The quick assembly in minutes makes installation especially time-saving.
Conclusion and Areas of Application
This box canopy is ideal for use in demanding kitchen environments where hygiene and performance are top priorities. It is perfect for catering businesses, canteens, and large-scale kitchens that require a reliable and low-maintenance ventilation solution. Thanks to its compact design and high-quality materials, it convinces with durability and efficiency. This canopy improves air quality while simultaneously creating a safer working environment.
Installation & Operation
- ⚠️ Pipe diameters should always remain consistent or only be reduced following professional planning.
- ⚠️ An incorrect reduction can affect the entire system.
Cleaning & Maintenance
Cleaning & Maintenance
- Modern stainless steel flame protection filters are designed to be cleaned in a commercial dishwasher.
- Daily cleaning prevents burning on/resin build-up.
- Carefully lift the filter out of the holder (caution: fat droplets!).
- For heavy soiling, rinse off coarse fat with hot water.
- Wash in the dishwasher at high temperatures (at least 60–70 °C) using a degreasing detergent.
- The filters must be completely dry before being reinstalled to prevent mould or bacterial growth.
Technical data
Dimensions
| Width | 1.600 mm |
|---|---|
| Depth | 1.400 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 500 mm |
Drain dimensions:
| Width | 210 mm |
|---|---|
| Depth | 230 mm |
Details
| Number of filters | 3 |
|---|---|
| Extraction rate | 1.600 m³/h |
| Air turnover per hour | 1.300 m³ |
Connected load
| Power | 147 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 70 kg |
| Net weight | 54 kg |
Download / Exploded drawing
