Commercial Wall-Mounted Extractor Hood with Motor – 1400mm – with Speed Controller, Baffle Filters & Lighting
* The picture may slightly differ from the original.
Commercial Wall-Mounted Extractor Hood with Motor – 1400mm – with Speed Controller, Baffle Filters & Lighting
Product Advantages
- Made in Italy: Stands for high-quality workmanship and Italian quality standards.
- Single-block structure made of AISI 304 stainless steel: Ensures durability and easy cleaning of the hood.
- Grease-free labyrinth filters made of 18/10 stainless steel: Increase efficiency in grease separation and are particularly hygienic.
Description
Product Overview

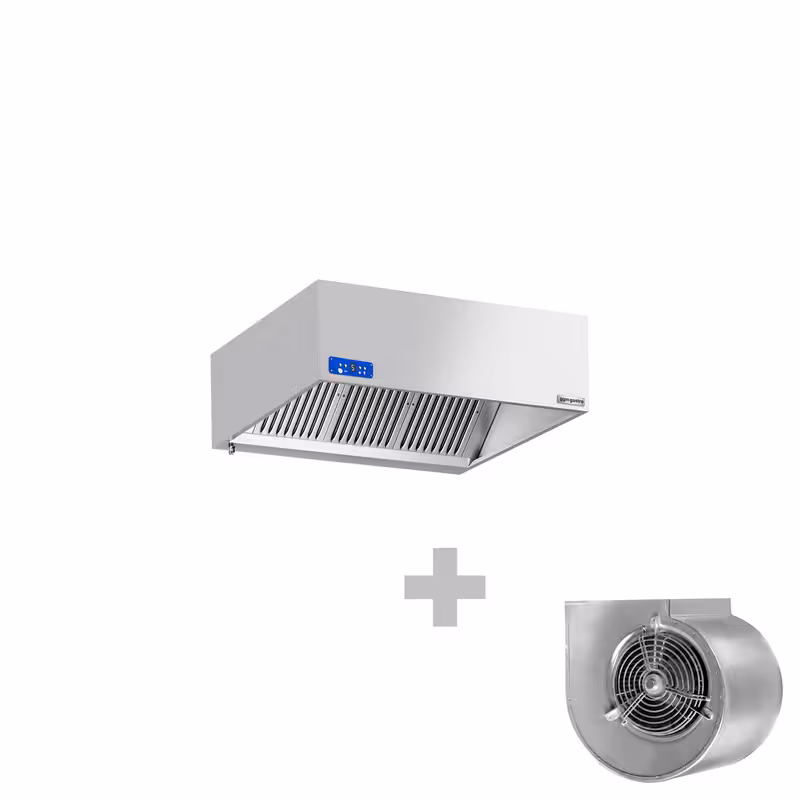

The box canopy with motor is a high-quality extraction system with a width of 1400mm, ideally suited for professional use in kitchens and industrial settings. It impresses with its compact and robust design, ensuring a long service life. Thanks to integrated lighting, the work surface is always optimally illuminated, facilitating operation.
Product Details
The canopy is made of AISI 304 stainless steel and features an electronically welded single-block structure that guarantees maximum stability. A drip-free, hermetic gutter with drain taps ensures safe collection and easy disposal of grease. The grease-free labyrinth filter made of 18/10 stainless steel provides effective and hygienic filtration. The surface is Scotch-Brite satin finish, which simplifies cleaning and offers an attractive design. Installation takes just minutes, saving time and effort.
Conclusion and Areas of Application
This box canopy is perfectly suited for use in commercial kitchens, catering establishments, and industrial environments where reliable and hygienic extraction is required. The combination of a powerful motor, efficient grease filter, and practical control makes it a versatile solution for clean air and optimal working conditions. Thanks to the robust materials and thoughtful construction, it offers long-lasting and low-maintenance use.
Installation & Operation
- ⚠️ Pipe diameters should always remain consistent.
- ⚠️ Reductions must be professionally planned.
- ⚠️ An incorrect reduction impairs the system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel are designed to be cleaned in a commercial dishwasher.
- Daily cleaning prevents burning in or resin build-up.
- Carefully lift the filter out of the holder (caution: fat droplets!).
- In case of heavy soiling, rinse off coarse fat with hot water.
- Wash in the dishwasher at high temperatures (at least 60–70 °C) using a fat-dissolving detergent.
- The filters must be completely dry before being reinserted to prevent mould or bacterial growth.
Technical data
Dimensions
| Width | 1.400 mm |
|---|---|
| Depth | 1.100 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 500 mm |
Drain dimensions:
| Width | 210 mm |
|---|---|
| Depth | 230 mm |
Details
| Number of filters | 3 |
|---|---|
| Extraction rate | 1.800 m³/h |
| Air turnover per hour | 1.300 m³ |
Connected load
| Power | 147 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 64 kg |
| Net weight | 50 kg |
Download / Exploded drawing
Safety and disposal instructions
