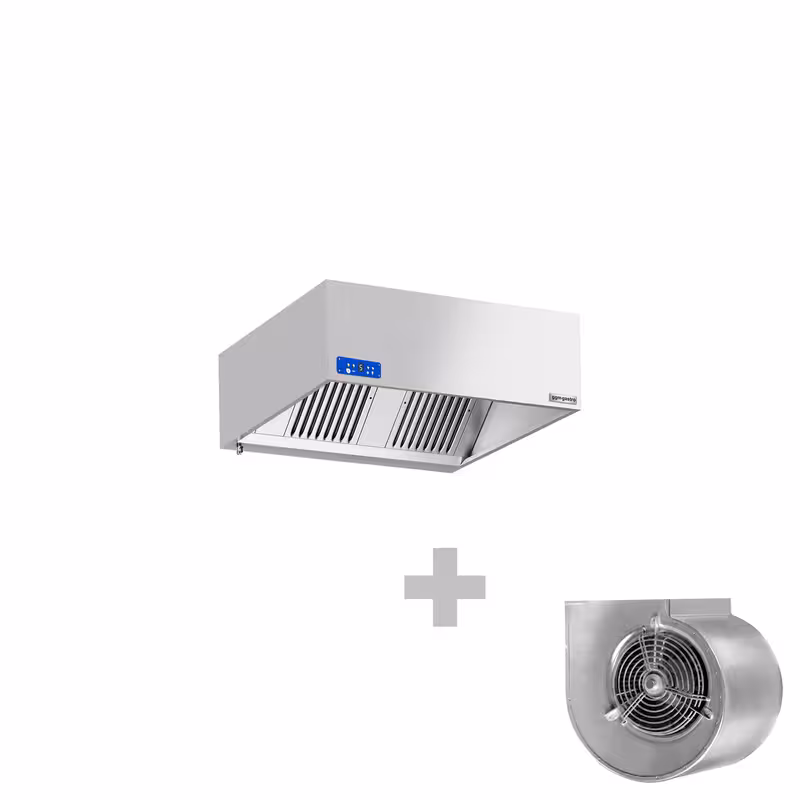

Commercial Wall-Mounted Extractor Hood with Motor – 1200mm – with Speed Controller, Baffle Filters & Lighting
* The picture may slightly differ from the original.
Commercial Wall-Mounted Extractor Hood with Motor – 1200mm – with Speed Controller, Baffle Filters & Lighting
Product Advantages
- Made in Italy: Represents high-quality craftsmanship and first-class quality from Italian manufacturing.
- Single-block structure made of AISI 304 stainless steel: Provides robust durability and easy cleaning thanks to the high-quality material selection.
- Grease-free labyrinth filters made of 18/10 stainless steel: Ensure effective grease separation and facilitate maintenance.
Description
Product Overview
The canopy hood with motor, with a width of 1200 mm, is ideal for efficient extraction in commercial kitchens. It impresses with a compact and robust design that ensures long service life and reliable operation. Thanks to the integrated lighting, optimal illumination of the cooking area is guaranteed.
Product Details
Manufactured from high-quality AISI 304 stainless steel, the hood offers a durable and hygienic surface. The electronically welded construction ensures a stable and drip-free finish. A hermetic gutter with drain taps allows for easy collection and removal of fats, facilitating cleaning. The grease-free labyrinth filter made of 18/10 stainless steel guarantees effective filtration without blockages. Installation takes just minutes, saving time and effort.
Conclusion and Areas of Application
This hood is perfectly suited for use in professional kitchens where hygiene and efficiency are top priorities. It provides reliable extraction and easy maintenance thanks to its thoughtful design. It is ideal for restaurants, canteens, and catering operations that require a powerful and durable extraction solution.
Installation & Operation
- ⚠️ Pipe diameters should always remain consistent or only be professionally reduced as planned.
- ⚠️ An incorrect reduction can affect the entire system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel are designed to be cleaned in a commercial dishwasher.
- Daily cleaning prevents burning in or resin build-up.
- Carefully lift the filter out of the holder (caution: fat droplets!).
- In case of heavy soiling, rinse off coarse fat with hot water.
- Wash in the dishwasher at high temperatures (at least 60–70 °C) using a fat-dissolving detergent.
- The filters must be completely dry before being reinserted to prevent mould or bacterial growth.
Technical data
Dimensions
| Width | 1.200 mm |
|---|---|
| Depth | 1.100 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 500 mm |
Drain dimensions:
| Width | 210 mm |
|---|---|
| Depth | 230 mm |
Details
| Number of filters | 2 |
|---|---|
| Extraction rate | 1.400 m³/h |
| Air turnover per hour | 1.300 m³ |
Connected load
| Power | 147 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 60 kg |
| Net weight | 47 kg |
Download / Exploded drawing
