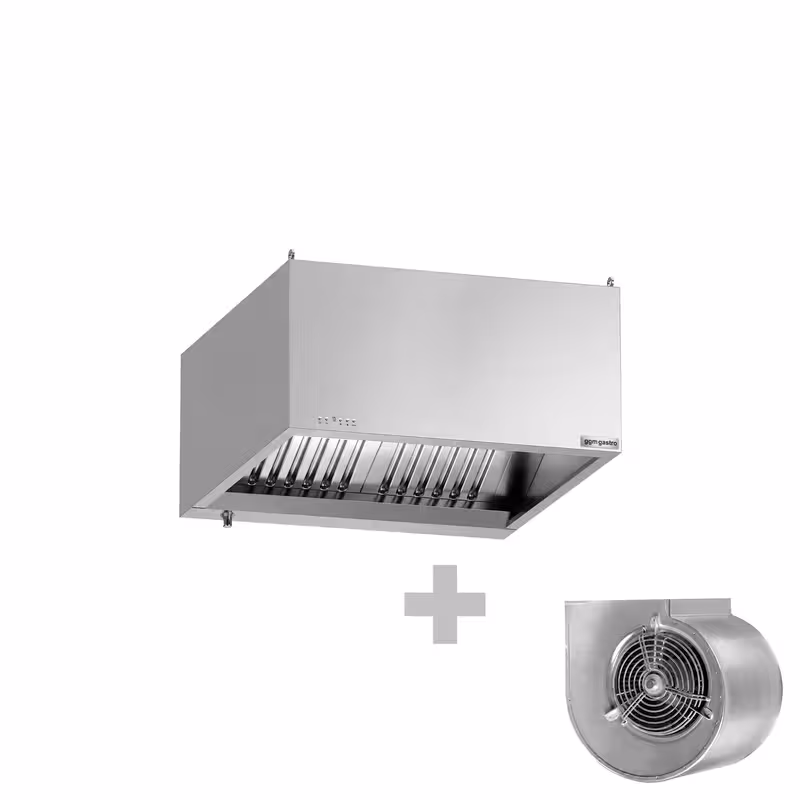

Commercial Wall-Mounted Extractor Hood with Motor – 1000 mm – Controller, Filters & Light
Depth 900 mm
SKU KLR109M
* The picture may slightly differ from the original.
Guaranteed: Order by 12 noon for immediate dispatch!
Print* net price | gross price incl. 19% VAT.: €736.60
Commercial Wall-Mounted Extractor Hood with Motor – 1000 mm – Controller, Filters & Light
SKU KLR109M
Depth 900 mm
Print* net price | gross price incl. 19% VAT.: €736.60
Accessories (2)
Product Advantages
- Made in Italy: Represents high-quality workmanship and durable materials.
- High air performance: Ensures rapid and efficient removal of fumes and odours in professional kitchens.
- Stainless steel labyrinth filter: Provides effective flame protection and prevents grease deposits in the exhaust duct.
- Hermetically sealed grease collection trough with drain valve: Allows hygienic and time-saving cleaning of the hood.
Description
Product Overview
This box canopy with motor is specially designed for use in the gastronomy sector. It impresses with a compact and robust construction that guarantees a long service life. With a width of 1000mm, it fits perfectly into professional kitchens and ensures efficient air extraction. The integrated lighting facilitates work under the canopy and provides optimal visibility.Product Details and Features
The canopy is equipped with a grease drain valve, allowing for easy cleaning and maintenance. Thanks to the separate collection and extraction areas, the air is effectively filtered, significantly improving hygiene and air quality. The spot-welded monoblock structure ensures high torsional rigidity and stability. Made from high-quality AISI 430 stainless steel, the canopy is particularly resistant to corrosion and well suited to the demands of kitchen environments. An integrated controller allows for easy operation of the motor and air supply.Conclusion and Areas of Application
This box canopy is the perfect solution for professional kitchens where hygiene, performance, and durability are required. It is ideal for restaurants, canteens, and catering businesses that need reliable extraction. The combination of robust material, thoughtful design, and practical features makes it an indispensable device for the gastronomy sector. This canopy improves air quality and creates a safer and more pleasant working environment.Installation & Operation
- ⚠️ Pipe diameters should always remain consistent or only be reduced following professional planning.
- ⚠️ An incorrect reduction can affect the entire system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel are designed to be cleaned in a commercial dishwasher.
- Daily cleaning prevents burning in or resin build-up.
- Carefully lift the filter out of the holder (caution: fat droplets!).
- In case of heavy soiling, rinse off coarse fat with hot water.
- Wash in the dishwasher at high temperatures (at least 60–70 °C) using a fat-dissolving detergent.
- The filters must be completely dry before being reinserted to prevent mould or bacterial growth.
Technical data
Dimensions
| Width | 1.000 mm |
|---|---|
| Depth | 900 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Height | 500 mm |
Details
| Colour | Stainless Steel |
|---|---|
| Lighting | LED |
| Conveyor volume | 1.130 m³/h/h |
| Motor speed levels | 3 |
| Number of filters | 2 |
| Filter type | Type B |
Connected load
| Power engine | 147 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 40,50 kg |
| Net weight | 33 kg |
