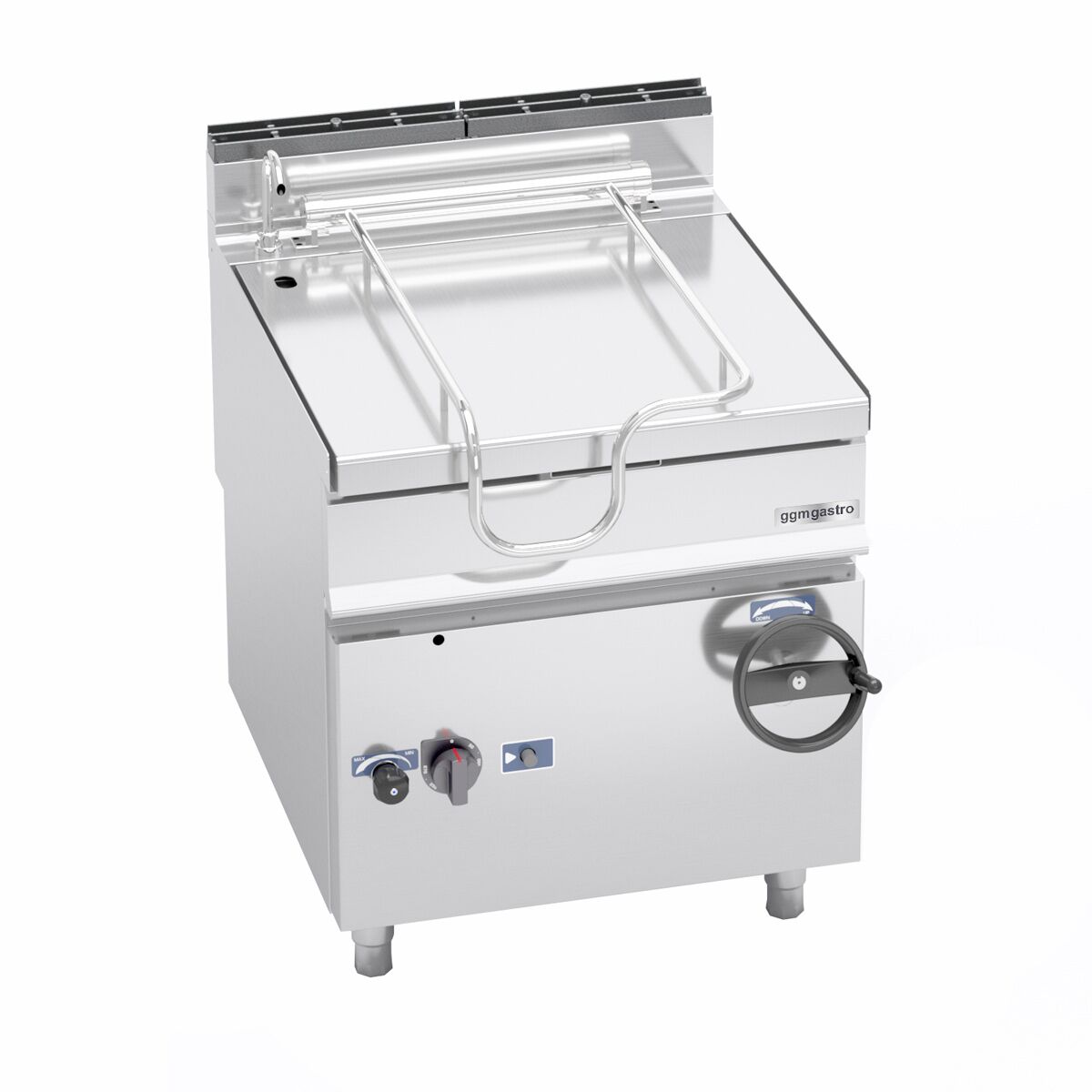

Gas Bratt Pan - 65L - 14.4kW - with Water Fill Tap
SKU GBB899MFloor-standing unit - 900 Deep
** The picture may slightly differ from the original.

Print* net price | gross price incl. 20% VAT.: €4,914.94
** The picture may slightly differ from the original.
Gas Bratt Pan - 65L - 14.4kW - with Water Fill Tap
SKU GBB899MFloor-standing unit - 900 Deep
Print* net price | gross price incl. 20% VAT.: €4,914.94
Accessories (7)
Spare Parts (6)
Product Advantages
- Made in Italy: Stands for high quality and careful craftsmanship.
- All-rounder: Replaces multiple appliances and allows versatile cooking such as frying, braising, boiling, and steaming.
- Mass catering professional: Prepares large quantities in just one go, saving time and effort.
- Easy pouring: The tilting function makes pouring easier without heavy lifting.
Description
- Actual capacity: 65 l
- Heating elements and electronics made in Germany
- Ventilation of cooking vapours via integrated chimney
- Tap for filling and rinsing the container
- Piezoelectric ignition
- Compatible with other products in the "Lorenzo 900" series
Professional high-capacity gas tilting frying pan
The gas tilting frying pan with an 80-litre volume is ideal for professional kitchen operations. It features an actual capacity of 65 l, making it perfect for large portions and versatile cooking tasks. The robust design made from high-quality AISI-304 and AISI-316 stainless steel ensures durability and optimal heat conduction. The integrated piezoelectric ignition allows for easy and safe start-up. With a tilt angle of up to 80°, the appliance is excellent for braising and making sauces.Efficient use and flexible applications
Thanks to the integrated chimney for ventilating cooking vapours and the practical tap for filling and rinsing, the workflow is significantly simplified. Combining with other products in the "Lorenzo 900" series offers additional flexibility. The safety thermoelements and automatic gas shut-off ensure the highest level of operational safety. With height-adjustable stainless steel feet and a self-balancing hinge, the tilting frying pan is versatile and user-friendly.Installation & Operation
- ⚠️ Please note that all gas appliances must be installed by a qualified professional.
- We would like to point out that the use of an extraction system is recommended to ensure the best possible performance and optimal use of the product.
Cleaning & Maintenance
- Allow the pan to cool to approximately 50 °C to 60 °C before cleaning to prevent material damage (cracks/distortion) caused by extreme temperature shocks.
- Soak crusts with warm water. Do not use steel wool or knives; use only soft sponges, brushes, or plastic scrapers.
- After cleaning, thoroughly remove all detergent and cleaner residues with clear water to ensure nothing contaminates the food during the next cooking process.
- Clean the spout, lip, and lid seals especially thoroughly, as these areas tend to accumulate germs and grease residues.
- Never rinse the appliance with a high-pressure cleaner or strong water jet (risk to electrical/mechanical components) and leave the lid slightly open after cleaning to allow drying.
Technical data
Dimensions
| Width | 800 mm |
|---|---|
| Depth | 900 mm |
| Height | 1.068 mm |
Pan dimensions
| Width | 760 mm |
|---|---|
| Depth | 590 mm |
| Height | 225 mm |
Details
| Temperature | 100 °C to 300 °C |
|---|---|
| Gross volume | 80 l |
| Actual filling quantity | 65 l (common) |
Connected load
| Connection | Gas |
|---|---|
| Power | 14,40 kW |
| Kcal/h | 17.200 |
| Btu/h | 68.240 |
| Propane gas (G30 / G31) | 1,56 kg/h |
| Natural gas H (G20) | 2,12 m³/h |
| Natural gas L ( G25 ) | 2,47 m³ |
Connection: Electrical
| Voltage | 230V |
|---|---|
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 191 kg |
| Net weight | 163 kg |
Download / Exploded drawing
Download / Exploded drawing
Safety and disposal instructions
Safety and disposal instructions
Download / Exploded drawing
Safety and disposal instructions
