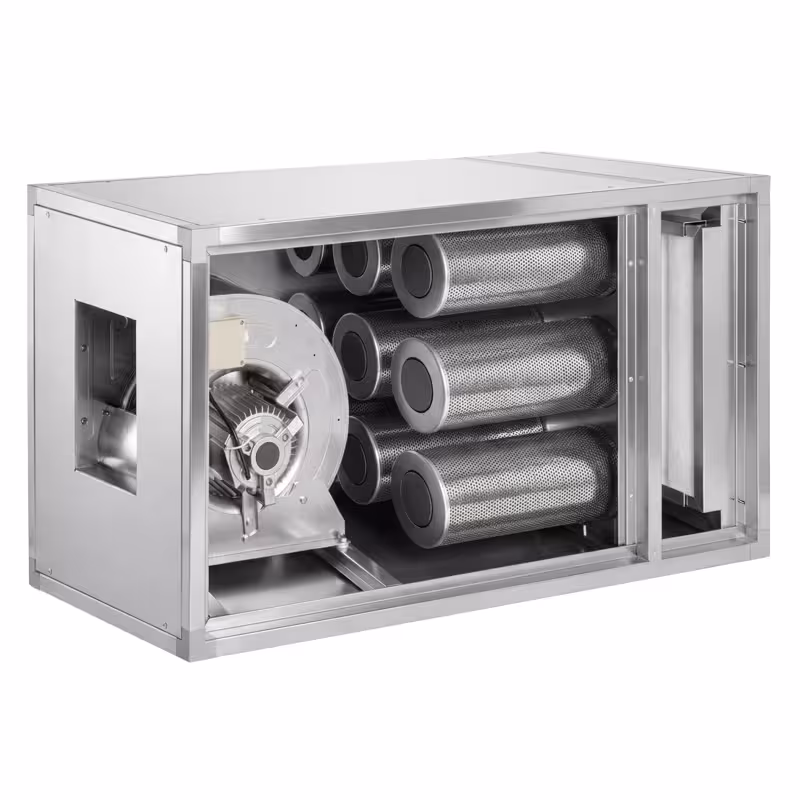

Exhaust Air Purification System with Motor - 2700m³/h - with Pre‑Filter & Activated Carbon Filter

SKU AMC2700VA230V - 550 Watt

** The picture may slightly differ from the original.

1.340,69 € ^*

RRP €2,759.99

In stock: 3 - 5 Days

incl. Lowest Price Guarantee

Free delivery^**

Print* net price | gross price incl. 20% VAT.: €1,608.83

** The picture may slightly differ from the original.

Exhaust Air Purification System with Motor - 2700m³/h - with Pre‑Filter & Activated Carbon Filter

SKU AMC2700VA230V - 550 Watt

€1,340.69 ^*

RRP €2,759.99

In stock: 3 - 5 Days

incl. Lowest Price Guarantee

Free delivery^**

Print* net price | gross price incl. 20% VAT.: €1,608.83

Accessories (4)

Product Advantages

Made in Italy: Represents high-quality craftsmanship and Italian quality standards.
Filtration & Deodorisation: Effectively removes unwanted odours and ensures clean air.

Description

Efficient Exhaust Air Purification System for Clean Air

This exhaust air purification system with motor offers a capacity of 2700 m³ and reliably ensures the purification of exhaust air. It is ideally suited to filter pollutants and odours from the air, thereby improving air quality in commercial or industrial areas. The integrated motor guarantees a constant and powerful airflow.

High-Quality Filtration Technology and Robust Construction

The system features a pre-filter and activated carbon filter, achieving a separation efficiency of 70% and thus effectively binding pollutants. The low-noise and weatherproof casing ensures quiet operation and reliably protects the technology from environmental influences. The housing is made of fire-galvanised sheet metal on the inside and stainless steel on the outside, combined with a 5 mm thick thermal and sound insulating foam certified according to UNI EN 13501-1. The robust aluminium frame construction with one-sided panel cladding guarantees durability and stability.

Conclusion and Areas of Application

This exhaust air purification system is the perfect solution for companies seeking efficient and environmentally friendly air purification with low energy consumption. It is excellently suited for use in workshops, production halls, or other commercial areas where contaminated exhaust air must be reliably filtered. With its combination of performance, durability, and quiet operation, it ensures a healthy working environment and sustainable environmental protection.

Installation & Operation

⚠️ To prevent possible damage to the motor and/or the appliance, it is absolutely essential to connect the thermal protection to the speed controller, provided the wiring diagram shows two designated lines for this purpose.
⚠️ Damage caused by faulty electrical connections is excluded from the warranty.
⚠️ Only original spare parts guarantee the specified performance values regarding efficiency, air flow rate, and pressure.
⚠️ The use of non-original components that impair the proper functioning of the appliance is excluded from the warranty.
For single-phase motors, the thermal protection is often integrated into the motor, so no external connections to the speed controller are required.
Always carefully check the electrical connections before commissioning the fan and/or appliance. These may be located on the fan/appliance itself or in the junction box.

Technical data

Dimensions

Width	1.200 mm
Depth	670 mm
Height	670 mm

Dimensions prefilter

Width	500 mm
Depth	625 mm
Height	48 mm

Dimensions activated charcoal filter

Width	160 mm
Depth	160 mm
Height	400 mm

Details

Speed regulation	Governor
Number of activated carbon filters	9 Piece
Number of prefilters	1 Piece
Air turnover per hour	2.700 m³
Degree of separation	70%
Transient air temperature	50 °C
Ambient temperature	-20 °C ~ 40 °C
