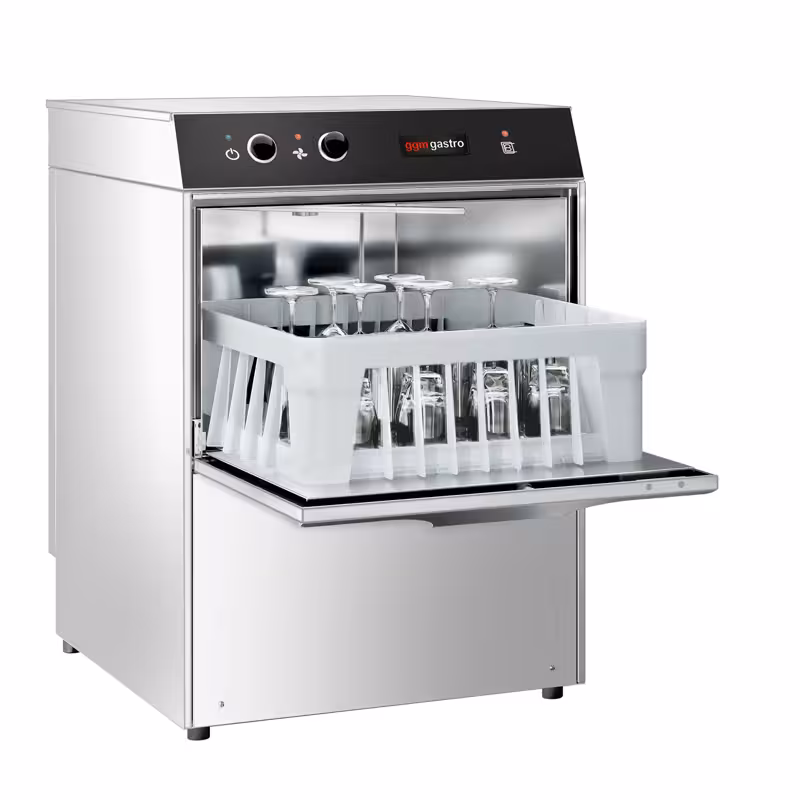

Double-skinned Compact Glasswasher - Manual - 2.77kW - with Rinse Aid Pump

* The picture may slightly differ from the original.
Double-skinned Compact Glasswasher - Manual - 2.77kW - with Rinse Aid Pump
Product Advantages
- Made in Italy: Signifies high-quality craftsmanship and reliable quality.
- Reduced noise level: The double-walled insulation ensures significantly quieter operation.
- Efficient thermal insulation: Minimises heat radiation and increases energy efficiency.
- High washing performance: Guarantees excellent cleaning results for optimal cleanliness.
Description
Product Overview
The double-walled mini glasswasher is a particularly small and compact appliance, ideal for use in confined kitchen spaces. With a power output of 2.77 kW, it ensures efficient and rapid cleaning of glasses. The manual control concept and the integrated rinse aid pump guarantee easy handling and optimal washing results.
Product Details
The appliance is constructed with double walls, providing better thermal insulation and thus lower energy consumption. The door opening with safety system ensures maximum protection during operation. Inside, there are 2 rinse arms at the top and bottom as well as a wash arm for effective cleaning, which, thanks to their rotating and non-clogging design, deliver thorough washing performance. The wash chamber made of high-quality stainless steel is robust and durable, complemented by a dual filtration system for clean wash water. The maintenance-free electromechanical control makes operation straightforward and reliable.
Conclusion and Areas of Application
This mini glasswasher is perfect for hospitality businesses, bars, and cafés seeking a space-saving and powerful solution for glass cleaning. Its robust stainless steel construction and efficient washing technology make it a durable and dependable partner in daily operations. Particularly advantageous is the combination of compact design and high washing quality, making it ideal for small to medium-sized establishments.
Installation & Operation
- ⚠️ Information on the mains voltage can be found in the operating manual.
- ⚠️ The appliance can be operated with either a hot water or cold water connection.
- ⚠️ The wash programmes operate optimally only with a hot water connection.
- A detailed manual is available under the "Download" tab.
- Additional instructions can be found in the "Video" section.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable only for chlorine-free cleaners.
Technical data
Dimensions
| Width | 423 mm |
|---|---|
| Depth | 466 mm |
| Height | 589 mm |
Basket dimensions
| Width | 350 mm |
|---|---|
| Depth | 350 mm |
Rack height
| Height | 220 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Rinsing time | 120.00 s |
|---|---|
| Baskets / hour | 30 |
| Max. Glass height | 205 mm |
| Inlet water temperature | 55 °C |
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
Capacity
| Tank capacity | 11 l |
|---|---|
| Boiler capacity | 2,70 l |
Connected load
| Power | 2,77 kW |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 35 kg |
| Net weight | 26 kg |
Download / Exploded drawing
