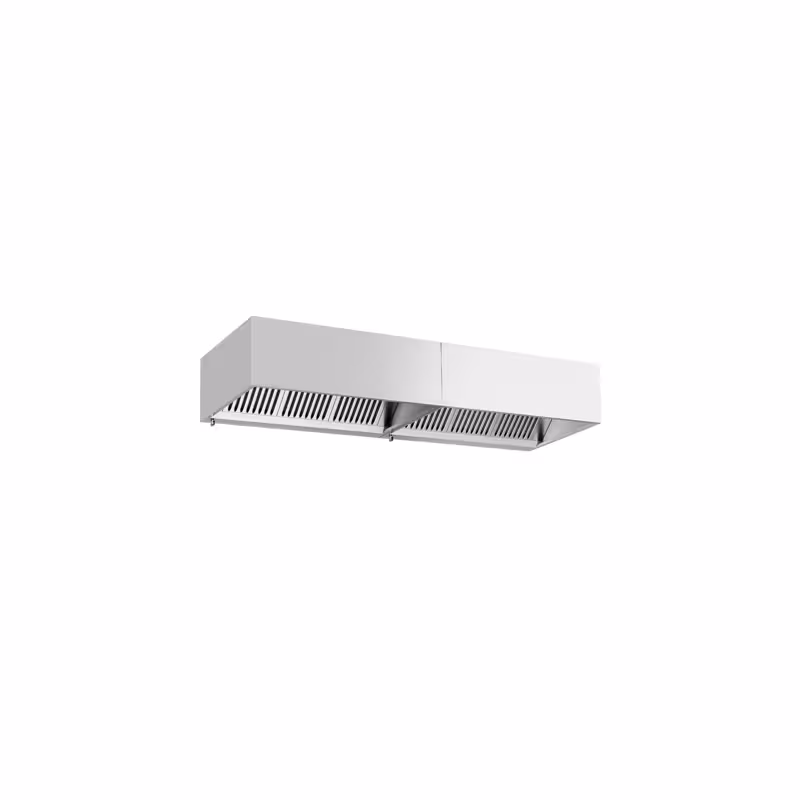

Commercial Wall-Mounted Extractor Hood – 2800mm – with Baffle Filters & Lighting
SKU KLP289#SETInstallation depth: 900 mm
Rate now
** The picture may slightly differ from the original.

Print* net price | gross price incl. 20% VAT.: €1,060.74
** The picture may slightly differ from the original.
Commercial Wall-Mounted Extractor Hood – 2800mm – with Baffle Filters & Lighting
SKU KLP289#SETInstallation depth: 900 mm
Rate now
Print* net price | gross price incl. 20% VAT.: €1,060.74
Description
Overview of the Box Canopy
The box canopy with a length of 2800mm is specially designed for use in the gastronomy sector. It impresses with a compact and robust construction that ensures a long service life and high durability. Thanks to the integrated filters and lighting, it is ideally suited to effectively extract cooking fumes while simultaneously providing good illumination of the work areas.Details and Features
The canopy is made from high-quality AISI 430 stainless steel and spot-welded, ensuring particularly stable and hygienic workmanship. A grease drain valve significantly facilitates cleaning and maintenance. The two-block structure allows for simple and rapid assembly, keeping installation effort to a minimum. The integrated lighting improves visibility when cooking and working under the canopy.Conclusion and Areas of Application
This box canopy is the ideal solution for professional kitchens in restaurants, canteens, and large-scale kitchens that value quality and functionality. It ensures efficient extraction of cooking vapours and grease particles, contributing to a clean and hygienic working environment. Thanks to its robust construction and easy assembly, it is perfect for permanent use in demanding gastronomic settings.Installation & Operation
- Pipe diameters should always remain consistent or only be reduced according to professional planning. An incorrect reduction can affect the entire system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel are designed to be cleaned in a commercial dishwasher.
- Daily cleaning prevents burning-on/resin build-up.
- Carefully lift the filter out of the holder (caution: fat droplets!).
- In case of heavy soiling, rinse coarse fat off with hot water.
- Wash in the dishwasher at high temperatures (at least 60–70 °C) using a fat-dissolving detergent.
- The filters must be completely dry before being reinserted to prevent mould or bacteria formation.
Technical data
Total dimensions
| Width | 2.800 mm |
|---|---|
| Depth | 900 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 500 mm |
Details
| Appliance type | extractor hood |
|---|---|
| Extraction rate | 2.400 m³/h |
| Number of filters | 6 |
Connected load
| Voltage | 230V |
|---|---|
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 46 kg |
| Net weight | 46 kg |
Download / Exploded drawing
Download / Exploded drawing
