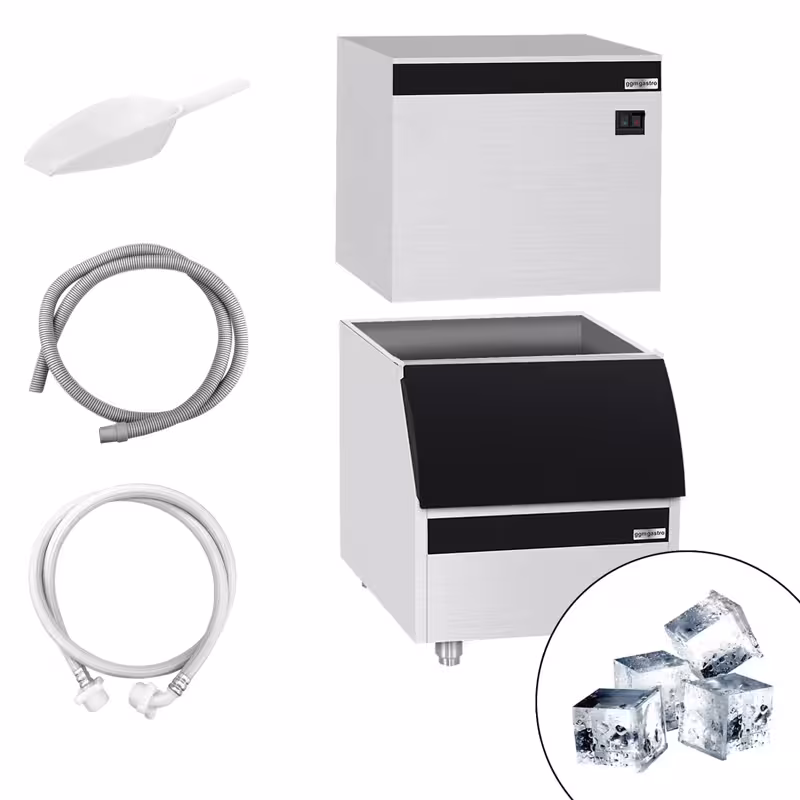

Commercial Ice Machine - Cube - 230 kg/ /24 h incl. storage container
** The picture may slightly differ from the original.
** The picture may slightly differ from the original.
Commercial Ice Machine - Cube - 230 kg/ /24 h incl. storage container
Description
- High-quality touchscreen display
- Strong and consistently maintained cooling
Efficient ice cube makers for professional requirements
The ice cube maker reliably produces up to 230 kg of ice cubes per 24 hours and is equipped with a generous storage container. The high-quality touchscreen display allows for easy and intuitive operation. Thanks to the electronic control, the operation is optimally regulated to always ensure the best results. The body made of high-quality AISI 304 stainless steel guarantees durability and an appealing design.
Powerful and versatile
The ice cube maker is excellent for professional use, for example in gastronomy, hotels or bars. The strong and consistently maintained cooling guarantees consistently high ice quality. With an ice storage container of 210 kg, flexible and efficient storage of ice cubes is possible, optimally covering demand during peak times.
Installation & Operation
- Water drainage is required.
- A 25 amp fuse is necessary for this appliance.
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If you have installed a descaler in advance, please note that the cartridge must be regenerated after approximately 230 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
Technical data
Dimensions
| Product Dimensions (WxDxH) | 765 x 842 x 1728 mm |
|---|
Details
| Ice Cube Shape | Whole cubes |
|---|---|
| Perfect for | Fast-food restaurant |
| Dimensions of a full ice cube | 22 x 22 x 22 mm |
| Weight of a full ice cube | 12 g |
| Dimensions of half-ice cubes | 22 x 10 x 28 mm |
| Weight of ice cubes | 6 g |
| Production per cycle | 360 Stk. |
| Ice Production per Day | 230 kg |
| Maximum filling quantity | 210 kg |
| Water pressure | 1 bis 5 bar |
Composition
| Product material | Stainless Steel AISI 304 |
|---|
Cooling performance
| Cooling type | Ventilation |
|---|---|
| Environmental temperature | 10 bis 32 °C |
| Refrigerant Type | R290 |
| Refrigerant Quantity | 0,14 kg |
Connected load
| Operation | Digital |
|---|---|
| Power | 1,20 kW |
| Power Connection | 230V |
| Phase | 1N/PE |
| Current intensity | 16 A |
| Water Connection | In/Outlet |
| Dimension water inlet | 3/4" |
Delivery
| Shipping Method | Haulage |
|---|---|
| Delivery condition | Mounted |
| Gross Weight | 135 kg |
| Net Weight | 157 kg |
Download / Exploded drawing
