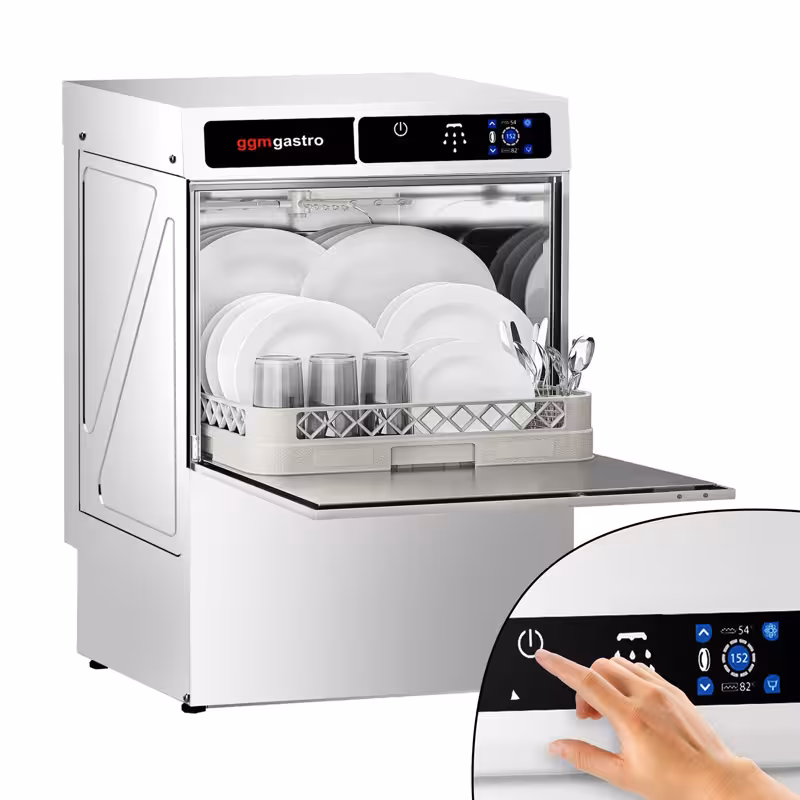

Commercial Glasswasher - Touchscreen – 3.30 kW – with detergent pump, rinse aid pump & drain pump
Rate now
SKU GLOZ40
Insertion height: 330mm
Guaranteed: Order by 12 noon for immediate dispatch!
Print* net price | gross price incl. 20% VAT.: €1,045.61
Accessories
Spare Parts
Description
Product advantages
- Intuitive touchscreen operation with remaining running time display and a wide range of setting options for maximum convenience.
- Automatic detergent & rinse aid supply
Design
- Glasswasher with drain pump
- Substructure device
- with cleaner pump
- Polypropylene wash arms
- Door opening mechanism with integrated safety system
- Adjustable feet for height optimization
- Superior rinsing
- Easy start-up: one push of a button to fill and heat the water in the boiler tank
- with 3 cycles
Quality
- Made from high-quality Stainless Steel
- Fully sealed housing to ensure IPX5 water protection
- Digitally controlled rinse and wash temperature for efficient washing
- Electrical components and wiring according to international standards and safety regulations
Technology
- Electrical rinse aid feed
- Rotating, non-clogging wash and rinse jets
- Drain pump pumps dirty water over a height difference into the wastewater connection
Connection
- Power: 3,30 kW
- Electrical connection: 230V / 1N/PE / 50 Hz
Scope of delivery
- 1 glass basket with cutlery and cup holder
- Device is delivered without plug!
Guidelines
- Manufactured in accordance with relevant hygiene and safety standards
- CE marking as proof of conformity with EU regulatory standards
Notes
- Information on the supply voltage can be found in the user manual
- To shorten the heating time, a hot water connection should be used. The maximum temperature of 50°C must not be exceeded.
- Only suitable for chlorine free detergents.
- For smooth rinsing, the appliance and components should be descaled with a connected descaler (art. no.: ENS12)!
- If you have used a descaler upstream, note that after approx. 1500 - 2000 L water flow rate the cartridge must be regenerated. The actual maximum flow rate depends on the water hardness.
- Detailed instructions can be found under the tabs 'Download' and 'Video'.
Technical data
Dimensions
| Width | 475 mm |
|---|---|
| Depth | 540 mm |
| Height | 765 mm |
Basket dimensions
| Width | 400 mm |
|---|---|
| Depth | 400 mm |
Rack height
| Height | 330 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water drain | R 3/4 |
Details
| Operation | Touchscreen |
|---|---|
| Washing pump power | 270 Watt |
| Maximum volume | 70 dB |
| Max. Crockery height | 320 mm |
Flushing process
| Washing temperature | 55 - 60 °C |
|---|---|
| Purge temperature | 80 °C - 85 °C |
| Washing program 1 | Washing time 105 seconds, 33 baskets / hour |
| Washing program 2 | Washing time 135 seconds, 26 baskets / hour |
| Rinse program 3 | Rinse time 195 seconds, 18 baskets / hour |
| Water consumption per run | 2,50 l |
Capacity
| Tank capacity | 18,40 l |
|---|---|
| Boiler capacity | 2,80 l |
Connected load
| Power | 3,30 kW |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Weight | 40 kg |
Download
Download / Exploded drawing
Download / Exploded drawing
