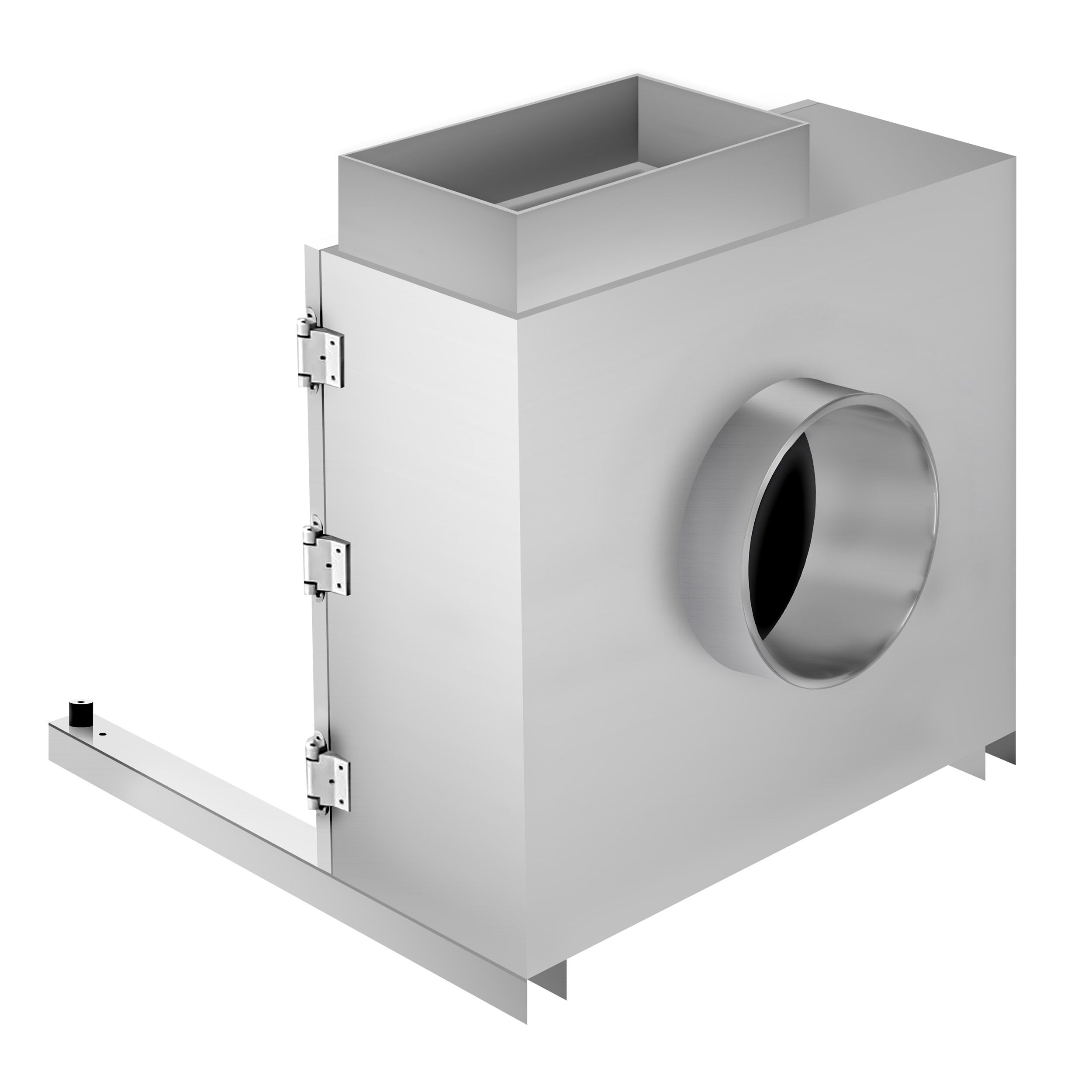

Airbox Pro Commercial Extractor Fan - 4000m³/h - 230V - Flip-top

SKU AS4000WPROup to 120°C air temperature - VDI 4000 W PRO 1F 4P 1V

** The picture may slightly differ from the original.

  • Airbox Pro Commercial Extractor Fan - 4000m³/h - 230V - Flip-top
  • Airbox Pro Commercial Extractor Fan - 4000m³/h - 230V - Flip-top
  • Airbox Pro Commercial Extractor Fan - 4000m³/h - 230V - Flip-top
  • Airbox Pro Commercial Extractor Fan - 4000m³/h - 230V - Flip-top
  • Airbox Pro Commercial Extractor Fan - 4000m³/h - 230V - Flip-top
  • Airbox Pro Commercial Extractor Fan - 4000m³/h - 230V - Flip-top
1.737,28 € *
RRP €3,799.99
In stock: 3 - 5 Days
Free delivery**
Print* net price | gross price incl. 20% VAT.: €2,084.74

** The picture may slightly differ from the original.

Accessories (8)

Product Advantages

  • Made in Italy: Represents high quality standards and meticulous craftsmanship.
  • Flip-up inspection opening: Significantly facilitates maintenance and cleaning.
  • Heat resistant up to 110 °C: Ensures safe operation even at high temperatures.
  • Ideal for charcoal grills: Optimal exhaust solution specifically for charcoal grills.

Description

Robust and Powerful Ventilation Solution

The Airbox Pro is a high-quality ventilation system specifically designed for use with charcoal grills and at high temperatures. With a maximum motor capacity of 4,000 m³ per hour, it ensures efficient and powerful air circulation. The foldable design allows for easy handling and maintenance, while the weather-resistant casing made of galvanised steel sheet guarantees durability and protection against environmental influences.

Thoughtful Technology and Easy Cleaning

Equipped with a backward-curved centrifugal fan, the Airbox Pro provides reliable ventilation with low power consumption. The fan is easily removable, which significantly simplifies cleaning and maintenance. The self-supporting structure made of sandwich panels with polyurethane rigid foam insulation ensures effective heat and sound insulation. Additionally, a factory-installed grease drain is included to enhance hygiene and safety.

Conclusion and Versatile Applications

The Airbox Pro is ideal for professional and private use where high temperatures and charcoal grills are employed. It impresses with its environmentally friendly design and the combination of high performance and easy care. Whether in the gastronomy sector or at demanding barbecue events – this ventilation system ensures optimal air quality and safety. A reliable partner for all who value quality and efficiency.

Installation & Operation

  • To prevent possible damage to the motor and/or the device, it is essential to connect the thermal protection to the speed controller, provided that the wiring diagram shows two lines designated for this purpose.
  • In single-phase motors, the thermal protection is often integrated into the motor, so no external connections to the speed controller are required.
  • Before commissioning the fan and/or device, always carefully check the electrical connections. These may be located on the fan/device itself or in the terminal box.
  • Damage caused by faulty electrical connections is excluded from the warranty.

Technical data

Dimensions

Width 820 mm
Depth 870 mm
Height 913 mm

Details

Air turnover per hour 4.000 m³
Diameter of suction support 360 mm
Pumping medium - temperature -20 °C to 110 °C

Connected load

Power 250 Watt
Voltage 230V
Phase(s) 1N/PE
Frequency 50 Hz
Amperage 2,30 A

Delivery

Shipping method Haulage
Delivered as Mounted
Gross weight 98 kg
Net weight 0 kg

Download / Exploded drawing

Safety and disposal instructions
