* The picture may slightly differ from the original.

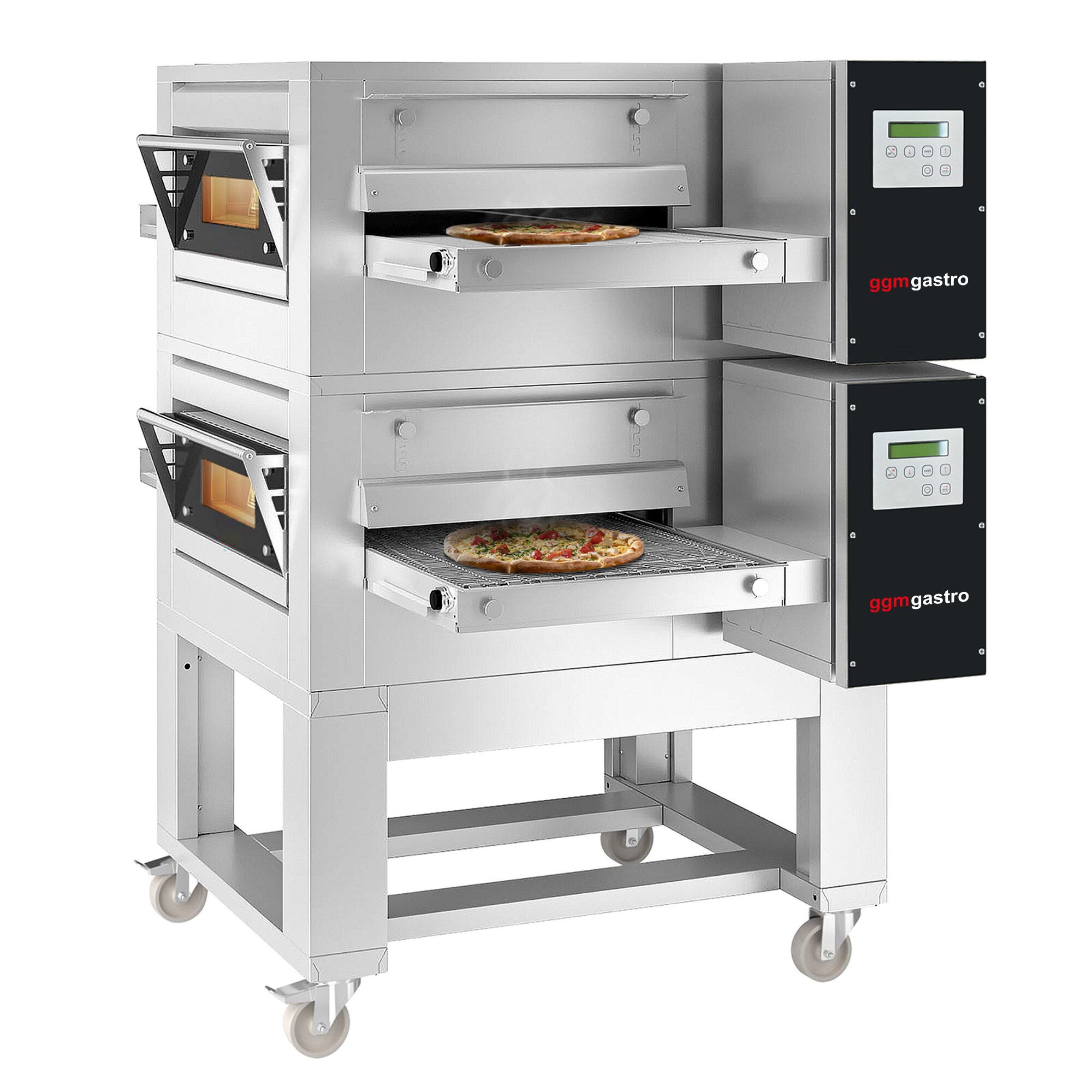

(2 pieces) Commercial Gas Conveyor Pizza Oven – Double Stack - 650mm Belt - 210 pizzas/h Ø30 cm - Digital
Rate now
SKU 2#DPZ10530G#UDZ1053G5
Ca. 210 pizzas per hour
Print* net price | gross price incl. 20% VAT.: €20,966.60
Accessories
Description
Product advantages
- Made in Italy - quality product made in Italy
- No. 1 among continuous ovens in Europe
- The maximum temperature of 320 °C is more than sufficient to achieve perfect results, thanks to the optimized ventilation system
- 10 Cooking programs - setting options for each program: cooking time, temperature and power for the upper and lower part of the oven
- ECONOMY function for lower production quantities - save money and energy
Notes
- When first turning on the oven, allow it to heat up slowly. Increase the temperature by 50°C every 30 minutes until a temperature of 300 °C is achieved. Keeping the door open, maintain a temperature of 300 °C for a period of four hours.
- The direction of travel of the conveyor belt can be changed by a specialist
- We would like to point out that the use of an exhaust air system is recommended to ensure the best possible performance and optimal use of the product.
Design
- With safety thermocouple that monitors the flame and automatically switches off the gas supply to the appliance when the flame goes out
- Set article consisting of: 2 x pizza oven & base
- Professional device for staff costs savings
- For 105 pizzas in /hrs. of Ø 30 cm
- Maximum energy saving thanks to top-quality insulation
- Integrated safety thermostat
- With digital temperature display
- Programmable baking time
- Patented system for a cool external housing
- Heat-resistant control window
- Efficient use with gas
- All DPZ pass-through ovens can be stacked
- Easy to use
Quality
- Body made from high-quality Stainless Steel
- Base frame made of Stainless Steel
Oven chamber
- Optimal and even heat distribution
- Operating temperature is reached in record time
- Electronic temperature control
- Easily accessible interior
- pass-through oven ( reccirculating air ventilation)
- Temperature: 320 °C
- High hourly productivity
- Perfect baking results, even without prior experience
- Opening and closing of doors is no longer necessary
- No monitoring of the baking process necessary
- No more shovels or push-in devices necessary
- Always crispy baking results
- Product is transported directly to the area of use
- Side access ( for monitoring of the baking process)
Scope of delivery
- Frame
- 4 castors
- Nozzles for liquid gas and natural gas
Guidelines
- Manufactured in accordance with relevant hygiene and safety standards
- CE marking as proof of conformity with EU regulatory standards
- Material complies with European food standards
Technical data
Overall dimensions
| Width | 2.000 mm |
|---|---|
| Depth | 1.550 mm |
| Height | 1.650 mm |
Dimensions per furnace
| Net outer dimension Width | 2.000 mm |
|---|---|
| Net external dimension Depth | 1.550 mm |
| Net external dimension Height | 550 mm |
Inner dimension per oven
| Width of the Interior | 650 mm |
|---|---|
| Depth Interior | 1.100 mm |
| Height Interior | 100 mm |
Base frame dimensions
| Net Width Underframe | 1.320 mm |
|---|---|
| Net Depth Underframe | 1.100 mm |
| Net Height Underframe | 560 mm |
Details
| Operation | Digital |
|---|---|
| Number of baking chambers | 2 Baking chambers |
| Bandwidth | 650 mm |
| Minimum baking time | 2,33 ' |
| Maximum baking time | 30 ' |
Baking method
| Temperature to: | 320 °C |
|---|
Connected load
| Operation type | Gas |
|---|---|
| Power | 48 kW |
| Diameter gas connection | 1/2" |
| Power Connection | 230V |
| Phase | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping Method | Haulage |
|---|---|
| Delivery condition | Partly Mounted |
| Gross Weight | 830 kg |
Download
Download / Exploded drawing
Download / Exploded drawing
