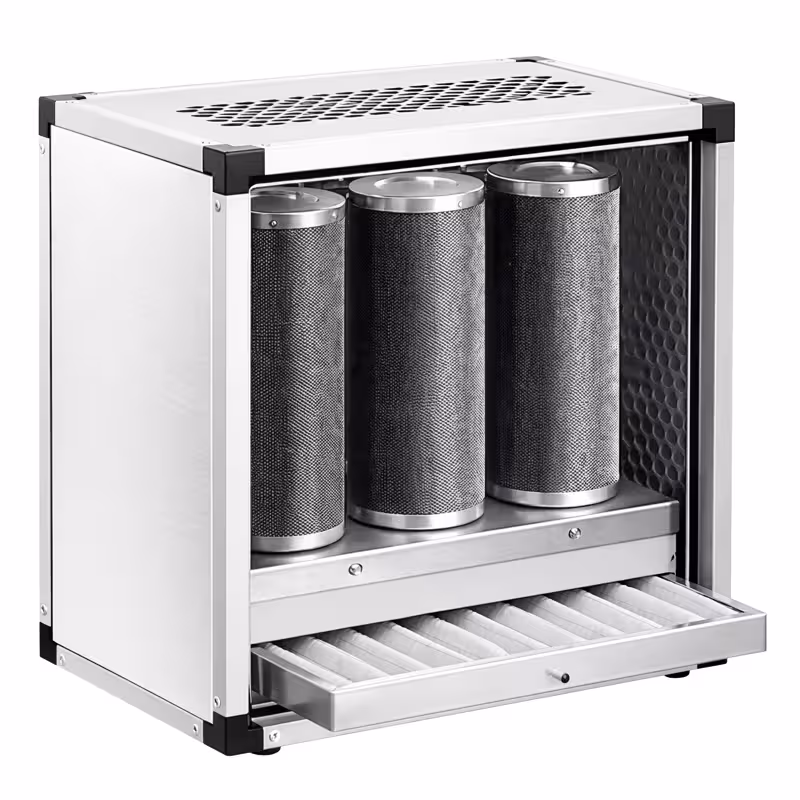

Exhaust Air Purification System without Motor - 2500m³/h - with Pre‑Filter & Activated Carbon Filter

* The picture may slightly differ from the original.
Exhaust Air Purification System without Motor - 2500m³/h - with Pre‑Filter & Activated Carbon Filter
Product Advantages
- Made in Italy: Represents high-quality craftsmanship and reliability. This ensures a long service life of the system.
- Low energy consumption: Leads to lower operating costs and is environmentally friendly. Enables efficient use of resources.
- Deodorisation (removal of unwanted odours): Improves air quality through effective odour elimination. Provides a more pleasant indoor climate.
Description
Efficient Exhaust Air Purification for Diverse Applications
The low-noise exhaust air purification system without a motor is ideally suited to reliably filter airflows with a volume of up to 2,500 m³ per hour. With a separation efficiency of 70%, it ensures a significant reduction of pollutants and odours. Particularly practical is the combination of pre- and activated carbon filters, which guarantees effective filtration and deodorisation.
Robust Construction and Energy-Efficient Filter Technology
The system is characterised by a stable frame construction made of aluminium profiles with a single-panel cladding that is both soundproof and pressure-resistant. The integrated thermal and sound insulation with 5 mm thick foam certified according to UNI EN 13501-1 ensures quiet operation and high safety. Since the system operates without a motor, it is especially energy-efficient and environmentally friendly in use.
Conclusion: Reliable Air Purification for Industry and Commerce
This exhaust air purification system is perfect for use in areas where low-noise and energy-efficient air filtration is required. It impresses with its high performance at low energy consumption and its robust, durable construction. Whether in industry, workshops, or other commercial environments – this system ensures clean and odour-free exhaust air.
Installation & Operation
- ⚠️ Only original spare parts guarantee the specified performance values.
- ⚠️ Only original parts ensure efficiency, airflow volume, and pressure.
- ⚠️ Non-original components may impair functionality.
- ⚠️ Warranty is void if foreign components are used.
Technical data
Dimensions
| Width | 670 mm |
|---|---|
| Depth | 670 mm |
| Height | 670 mm |
Dimensions prefilter
| Width | 500 mm |
|---|---|
| Depth | 625 mm |
| Height | 48 mm |
Dimensions activated charcoal filter
| Width | 160 mm |
|---|---|
| Depth | 160 mm |
| Height | 400 mm |
Details
| Number of prefilters | 1 Piece |
|---|---|
| Number of activated carbon filters | 9 Piece |
| Air turnover per hour | 2.500 m³ |
| Degree of separation | 70% |
| Transient air temperature | 50 °C |
| Ambient temperature | -20 °C ~ 40 °C |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 78 kg |
| Net weight | 80 kg |
Download / Exploded drawing
Safety and disposal instructions
