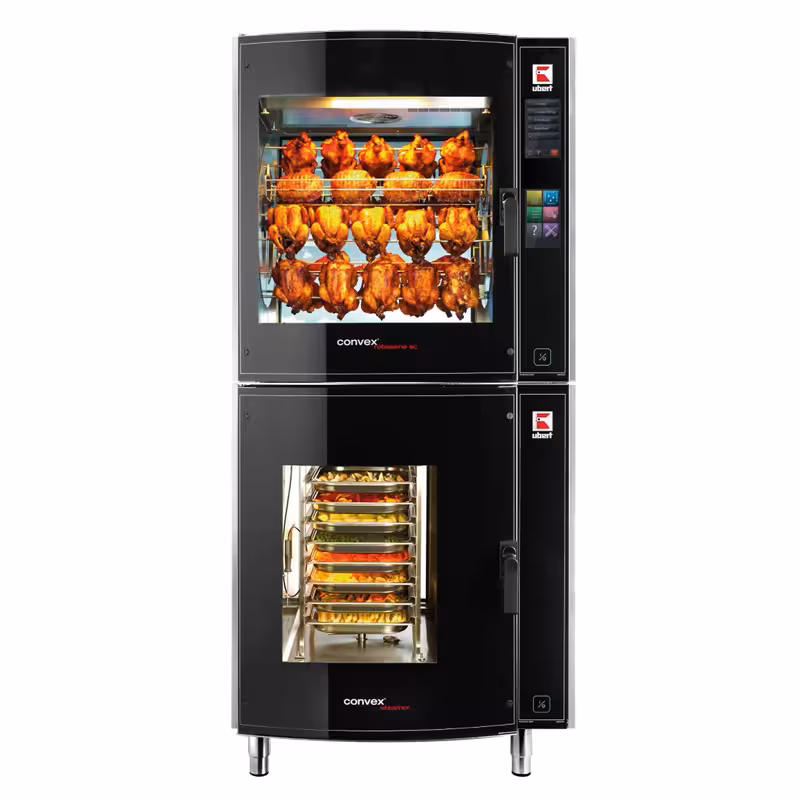

UBERT | Rotating chicken grill & combi oven – pass-through - 8x GN 1/1 - 48 chickens - self-cleaning

CONVEX® Combi-Tower - by UBERT - Made in Germany

Two-in-One - The advantages

• Combined arrangement for minimum space requirement. This also avoids long distances between salesroom

• The globally unique pass-through function of both devices allows the rotisserie and combi-steamer to be operated from both sides and ensures maximum hygiene

• Self-Cleaning System SC. Automatic self-cleaning system in both units for hygienic cleanliness and optimum unit care even with intensive soiling.

• Convex double glass doors for perfect product presentation, minimal heat loss and extremely low contact temperatures

• Intuitive operator guidance through clear text display

• Software update via USB interface

• Shorter cooking times of less than one hour for grilled chickens, each with 1kg raw weight

• Programmable climate control in the cooking chamber for a perfect grilling result

The new CONVEX® rotisserie

Equipped with 3 heating systems in one unit:

• 1. infrared for optimal tanning

• 2. convection for fast and even cooking.

• 3. steam for juicier products

CONVEX® damper

• For the operating modes steam, combination, hot air, regeneration

• 8 levels (lengthwise insertion) for 1/1 GN each

• Tray control

• Controlled climate/humidity regulation

Design

• Double skewers: 8 + 8 x 1/1 GN

• Chicken: 40 - 48 + 8 x 1/1 GN

• Miscellaneous grilled food: up to 85 kg + 8 x 1/1GN

• Water drain left

Quality

• Made in Germany

Connection

• Power: 24,30 kW

• Electrical connection: 400V / 3N/PE / 50 Hz

Dimensions

• External dimensions W x D x H: 1.000 mm x 938 mm x 2.225 mm

Guidelines

• Manufactured in accordance with relevant hygiene and safety standards

• CE marking as proof of conformity with EU regulatory standards

• Material complies with European food standards
