• Lead flashing: The extremely flexible material adapts seamlessly to the profile of roof tiles. This ensures rainwater is safely channelled over the roof surface.
• Weather collar: It seals the critical gap between the pipe and the roof penetration. This catches water running down the pipe and directs it outwards in a controlled manner.

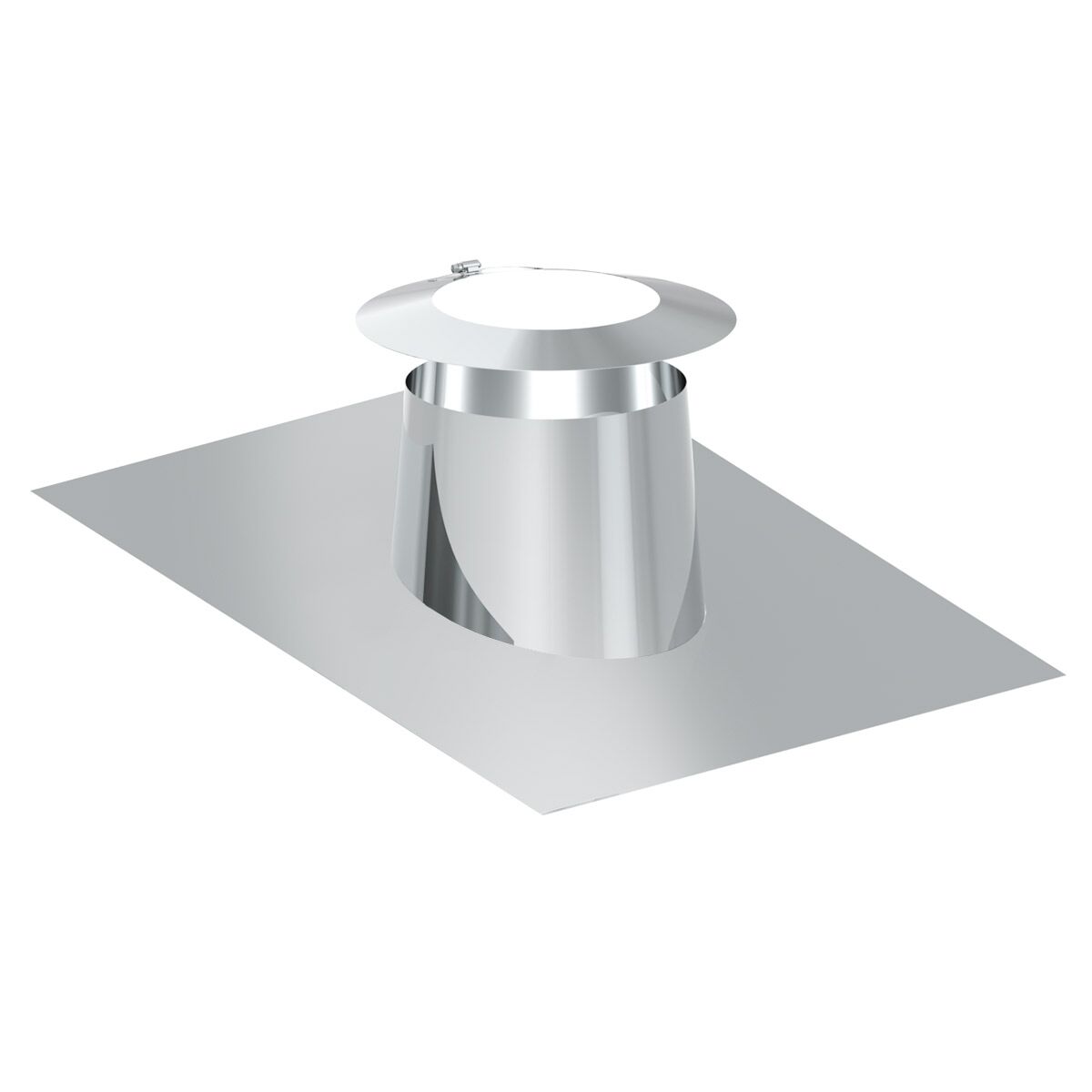

Robust Roof Penetration for Pitched Roofs

The roof penetration with a pitch angle of 5° to 15° is specifically designed for pitched roofs with clay tiles or roof shingles. It provides a reliable solution for safely routing pipes through the roof without compromising watertightness. The integrated lead edge and weather collar ensure optimal protection against penetrating rainwater and perfectly adapt to the shape of the roof.

High-Quality Materials and Thoughtful Construction

Manufactured from high-quality, double-walled stainless steel with a material thickness of 0.50 mm, the roof penetration impresses with its extreme robustness and durability. With an internal diameter of 515 mm and an external diameter of 550 mm, it is ideally sized for a wide range of applications. The double wall guarantees uncompromising rain protection, while the design specifically addresses two common weak points in roof penetrations: water backflow on the tiles and protection of the pipe gap.

Conclusion and Areas of Application

This roof penetration is the perfect choice for anyone seeking a reliable and weatherproof solution for pitched roofs. It is particularly suitable for roofs with clay tiles or roof shingles and offers long-term protection against moisture due to its robust construction. Whether for new builds or renovations – this roof penetration ensures the roof is optimally sealed and protected against water damage.

• Pipe diameters should always remain the same or only be reduced in a professionally planned manner. Incorrect reduction can affect the entire system.
• More detailed information on the dimensions and the graphic drawings can be found under Downloads!
