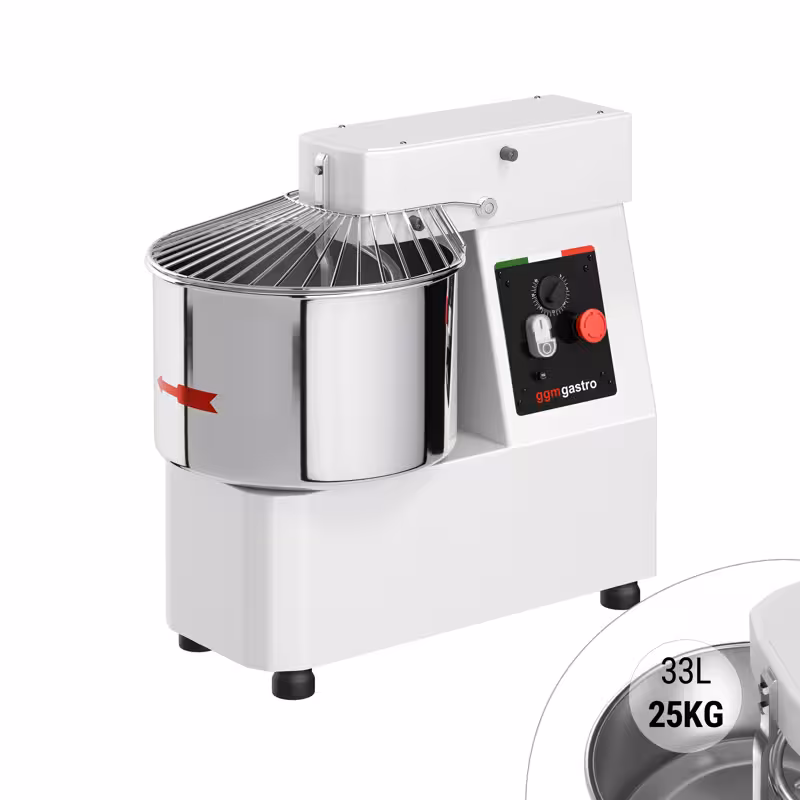

Professional Spiral Dough Mixer – 33 Litre - Fixed Bowl - 1 speed - 400V/3 phase - 25 kg dough

Please note filling quantity! (see picture)

Notes

• Please note that the boiler must always rotate in the direction of the arrow during the kneading process. If the boiler rotates in the direction opposite to the arrow, a specialist must check the assignment of phases

• The device must be installed by a specialist

• Installation instructions can be found on the device

Design

• Exceptionally quiet

• Oversized, cone-shaped spiral

• Suitable for doughs with at least 60% hydration

• Maximum filling quantity: 80% of the boiler volume

• Superior performance with low power consumption (good for the environment)

• Manual timer

• With emergency stop switch

Quality

• High-quality stainless steel

• Stainless steel bowl (non removable)

Technology

• Gear motor in oil bath

• Chain tensioner for axis alignment

• Compressed spiral thread

Connection

• Power: 1,50 kW

• Electrical connection: 400V / 3N/PE / 50 Hz

Dimensions

• External dimensions W x D x H: 830 mm x 430 mm x 720 mm

Guidelines

• Manufactured in accordance with relevant hygiene and safety standards

• CE marking as proof of conformity with EU regulatory standards

• Material complies with European food standards
