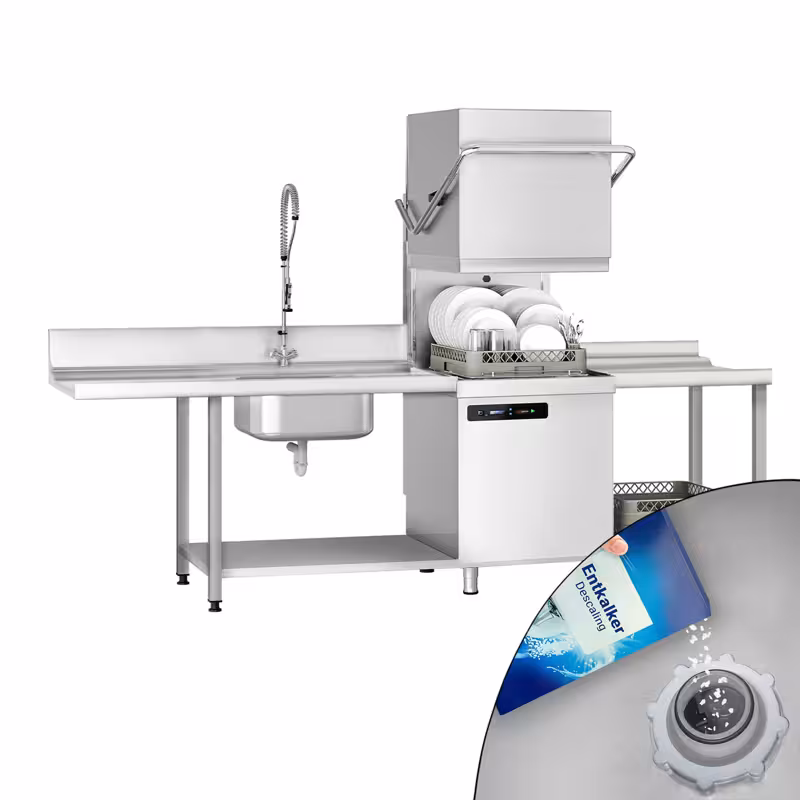

Pass Through Dishwasher - Digital Controls - 7.1kW - incl. Inlet Table left, Outlet Table right - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
Insertion height: 430mm
SKU DS430L#SET-R
* The picture may slightly differ from the original.
Print* net price | gross price incl. 20% VAT.: £3,819.30
Pass Through Dishwasher - Digital Controls - 7.1kW - incl. Inlet Table left, Outlet Table right - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
Rate now
SKU DS430L#SET-R
Insertion height: 430mm
Print* net price | gross price incl. 20% VAT.: £3,819.30
Accessories (8)
Spare Parts (9)
Product Advantages
- Made in Italy: Represents high-quality craftsmanship and reliable quality.
- Automatic wash cycle start: Saves time and increases efficiency by starting automatically after closing the hood.
- Adjustable running rails: Allow flexible loading and unloading options of the baskets from all sides.
- Inlet and outlet tables can be positioned at an angle: Offers versatile installation options for optimal space utilisation.
- Special rinsing system and insulated boiler: Ensure constant temperature and rinse water pressure during operation.
- Integrated descaling system: Eliminates the need for external descaler and reduces maintenance effort.
- Built-in stand-by system: Helps save energy and lowers operating costs.
Description
Product Overview
The pass-through dishwasher is a powerful freestanding unit specifically designed for professional use in the gastronomy sector. With a power output of 7.1 kW, it ensures fast and thorough cleaning of dishes and pots. The machine is equipped with a left-hand inlet table and a right-hand outlet table, optimising kitchen workflow and enabling easy integration into existing dishwashing lines.Product Details
The dishwasher features a caustic pump, a detergent pump, and a rinse aid pump, guaranteeing effective dosing and distribution of cleaning agents. The wash chamber is equipped with a dual filtration system that prevents blockages and increases cleaning efficiency. Two rotating wash and rinse arms ensure even and thorough cleaning. The body and tables are made from high-quality AISI 304 stainless steel, providing durability and ease of cleaning. The electromechanical control system is maintenance-free and allows reliable operation. Additionally, the door opening is fitted with a safety system to ensure safe operation.Conclusion and Areas of Application
This pass-through dishwasher is ideal for use in large-scale kitchens, canteens, or catering operations that prioritise efficient and hygienic cleaning. It combines robust construction with innovative technology, offering a reliable solution for daily dishwashing needs. Thanks to the integrated inlet and outlet tables, the machine can be flexibly incorporated into existing workflows. Overall, the unit impresses with its efficient cleaning power and user-friendly handling, making it the perfect choice for professional kitchens.Installation & Operation
- ⚠️ Information about the mains voltage can be found in the operating instructions.
- ⚠️ The appliance can be operated with either a hot or cold water connection.
- ⚠️ The washing programmes work optimally only with a hot water connection.
- ⚠️ A detailed manual is available under "Download" and "Video".
Cleaning & Maintenance
- For smooth washing, we recommend regularly descaling the appliance and its components!
- If you have a descaler installed upstream, please note that the cartridge needs to be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable exclusively for chlorine-free detergents.
Technical data

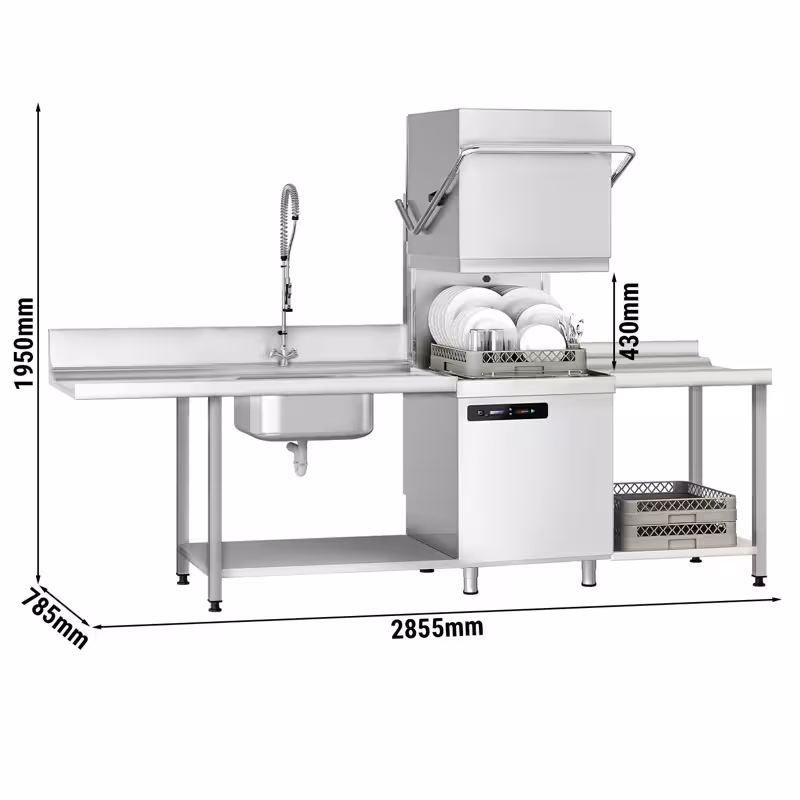

Overall dimensions
| Width | 2.855 mm |
|---|---|
| Depth | 785 mm |
| Height closed | 1.480 mm |
| Height open | 1.930 mm |
Dimensions per item
| Dimensions push-through dishwasher W x D x H | 655 mm x 785 mm x 1.480 mm |
|---|---|
| Dimensions of feeder table W x D x H | 1.200 mm x 700 mm x 850 mm |
| Dimensions dish spray W x D x H | 140 mm x 600 mm x 1.070 mm |
| Dimensions discharge table W x D x H | 1.000 mm x 520 mm x 865 mm |
| Basin dimensions W x D x H | 500 mm x 400 mm x 260 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Insertion height | 430 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water outlet | Ja |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Max. Crockery height | 405 mm |
Flushing process
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 20 Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
| Water consumption per run | 2,60 l |
Capacity
| Tank capacity | 30 l |
|---|---|
| Boiler capacity | 7 l |
Connected load
| Power | 7,10 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N/PE |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 190 kg |
| Net weight | 161 kg |
Download / Exploded drawing
Download / Exploded drawing
Safety and disposal instructions
Safety and disposal instructions
Download / Exploded drawing
Safety and disposal instructions
