Manifold - Extraction Duct - Ø190mm
** The picture may slightly differ from the original.
** The picture may slightly differ from the original.
Save 5% with the GGM Gastro App – exclusive until November 30.
With code APP-05 you save £1.98 on this item.
Open in appManifold - Extraction Duct - Ø190mm
Save 5% with the GGM Gastro App – exclusive until November 30.
With code APP-05 in the app you pay £1.98 less for this item.
Description
- Exclusively compatible with a 200 mm pipe
- Hole diameter: 190 mm
- Projection: 60 mm to plate, welded flush at 90°

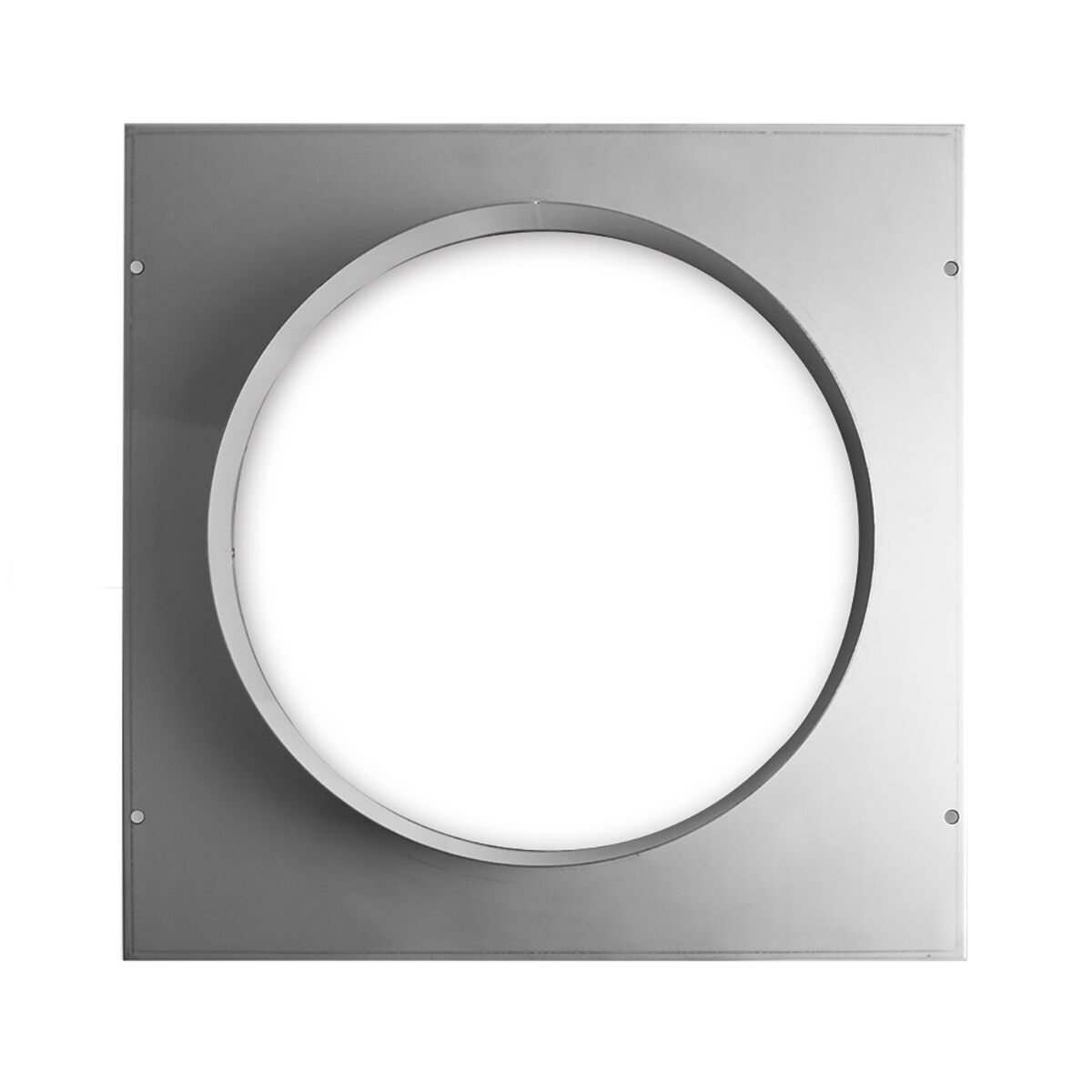

Robust stainless steel intake nozzle
The intake nozzle is specially designed for use with a 200 mm pipe. It impresses with high-quality stainless steel 1.4301 III-C matt finish, which guarantees durability and corrosion resistance. Featuring four drilled holes and a base plate, it offers stable and secure mounting. The construction is functional and designed for easy integration.
Versatile application and reliability
Ideally suited for industrial and technical applications where precise and reliable intake is required. The flush-welded projection ensures a solid connection to the plate. Thanks to the hole diameter of 190 mm, the nozzle fits perfectly into the corresponding pipe system. Its robust design makes it the optimal choice for demanding areas of use.
Installation & Operation
- Pipe diameters should always remain the same or only be reduced in a professionally planned manner. Incorrect reduction can affect the entire system.
- More detailed information on the dimensions and the graphic drawings can be found under Downloads!
Technical data
Dimensions
| Width | 400 mm |
|---|---|
| Depth | 400 mm |
Details
| Surrounding bevelling | 10 mm |
|---|---|
| Hole diameter | 190 mm |
| Material thickness | 1 mm |
| Lip | 60 mm zur Platte 90° stumpf verschweißt |
| Stainless steel (CNS) | 1.4301 III-C Matt |
Delivery
| Shipping method | Package |
|---|---|
| Condition on delivery | Assembled |
| Weight | 1,6 kg |
Download / Exploded drawing
