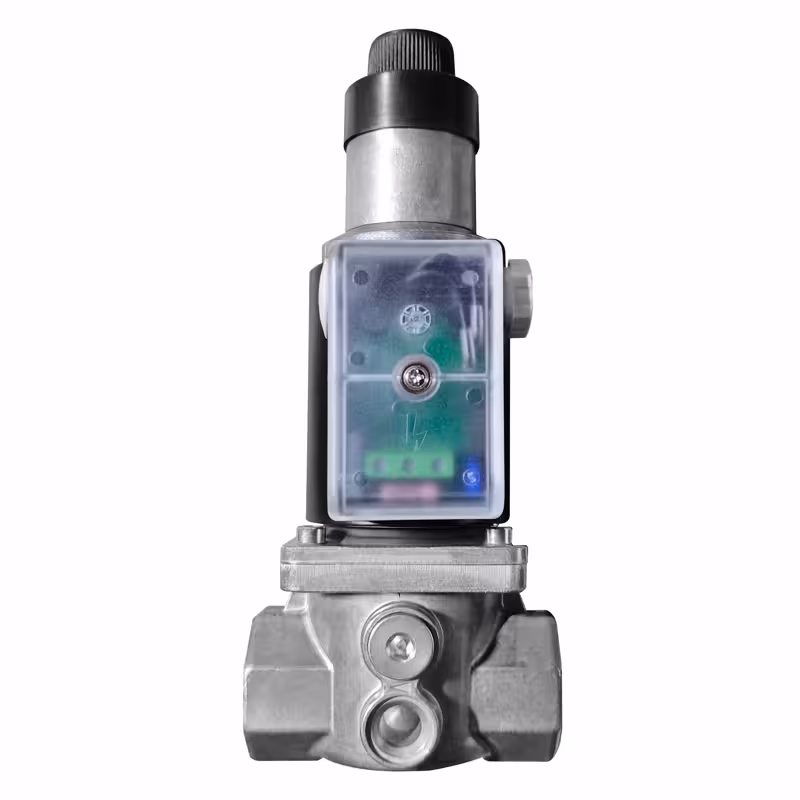

Gas solenoid valve - 3/4 - VML

Design

• gas safety valve class A acc.to EN 161

• For securing, regulating and controlling the gas and air supply of gas consumer installations

• Slow opening, fast closing

• Adjustable opening time and adjustable flow rate

• In the normal state, the valve is closed; when the power supply is switched on, the valve opens slowly

• The blue indicator light illuminates during operation

• When the power supply is switched off, it closes immediately and the indicator light goes out

• screw plugs on both sides

• With integrated filter and G1/4 bypass holes

Quality

• Aluminum alloy valve body

• Spring made of stainless steel AISI 302

• High quality

• Highly robust

Suitable for

• Natural gas, liquid gas, methane, etc.

• suitable for cycle and continuous operation

Notes

• On first use, after switching on the factory setting mode, the opening time, the flow rate at the outlet and the switchover between fast opening or slow opening within the opening range can be reset

• suitable tools are absolutely necessary for the mounting

Guidelines

• Manufactured in accordance with relevant hygiene and safety standards

• CE marking as proof of conformity with EU regulatory standards

• Complies with British and European gas standards

• Material complies with European food standards
