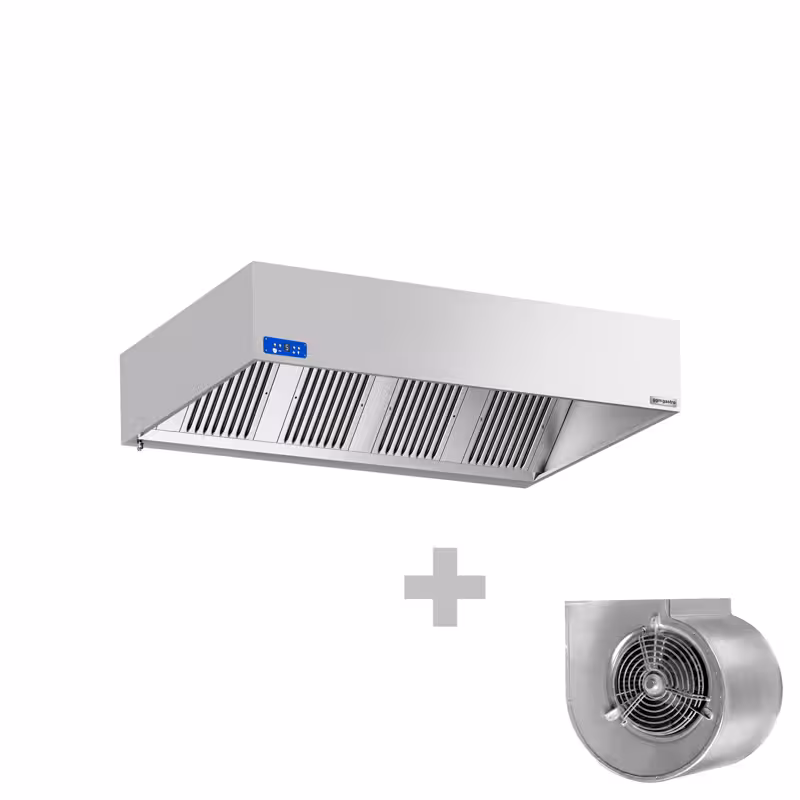

Commercial Wall-Mounted Extractor Hood with Motor - 2200mm - with Speed Controller, Baffle Filters & Lighting
* The picture may slightly differ from the original.
Commercial Wall-Mounted Extractor Hood with Motor - 2200mm - with Speed Controller, Baffle Filters & Lighting
Product Advantages
- Made in Italy: Represents high-quality Italian manufacturing and guarantees first-class product quality.
- Single-block structure made of AISI 304 stainless steel: Provides high stability and durability through robust material.
- Grease-free labyrinth filters made of 18/10 stainless steel: Ensure efficient fat separation and facilitate cleaning.
Description
Product Overview
The box canopy with motor is a high-quality ventilation solution specifically designed for professional use in kitchens and industrial environments. With a width of 2200 mm, it provides effective extraction and ensures a clean and safe working environment. The combination of motor, controller, filter, and integrated lamp makes this product a versatile and functional solution.
Product Details
The canopy impresses with its high-quality workmanship, ensured by electronic welding and a single-block structure made of AISI 304 stainless steel. This guarantees a robust and durable construction. The drip-free, hermetic gutter effectively collects fats and features practical drain taps that facilitate cleaning. The surface is Scotch-Brite satin finish, which is not only visually appealing but also simplifies maintenance. For optimal hygiene, it is equipped with grease-free labyrinth filters made of 18/10 stainless steel. The integrated lighting improves visibility at the workstation, while the controller allows easy operation of the motor. Installation is completed in minutes, making fitting especially convenient.
Conclusion and Areas of Application
This box canopy is ideal for use in commercial kitchens, large-scale kitchens, or other industrial settings where reliable and powerful extraction is required. It stands out due to its robust materials and thoughtful design, which facilitate cleaning and maintenance. Thanks to the integrated lighting and controller, it is particularly user-friendly. Overall, the canopy offers an efficient solution to improve air quality and comply with high hygiene standards.
Installation & Operation
- ⚠️ Pipe diameters should always remain consistent or only be professionally reduced as planned.
- ⚠️ An incorrect reduction can affect the entire system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel are designed to be cleaned in a commercial dishwasher.
- Daily cleaning prevents burning in or resin build-up.
- Carefully lift the filter out of the holder (caution: fat droplets!).
- In case of heavy soiling, rinse off coarse fat with hot water.
- Wash in the dishwasher at high temperatures (at least 60–70 °C) using a fat-dissolving detergent.
- The filters must be completely dry before being reinserted to prevent mould or bacterial growth.
Technical data
Dimensions
| Width | 2.200 mm |
|---|---|
| Depth | 1.400 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 500 mm |
Drain dimensions:
| Width | 260 mm |
|---|---|
| Depth | 300 mm |
Details
| Number of filters | 4 |
|---|---|
| Extraction rate | 2.400 m³/h |
| Air turnover per hour | 2.200 m³ |
Connected load
| Power | 420 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 80 kg |
| Net weight | 61 kg |
Download / Exploded drawing
Safety and disposal instructions
