Commercial Wall-Mounted Extractor Hood with Motor – 1600mm – with Speed Controller, Baffle Filters & Lighting
* die Abbildung kann vom Original leicht abweichen.
Commercial Wall-Mounted Extractor Hood with Motor – 1600mm – with Speed Controller, Baffle Filters & Lighting
Produktvorteile
- Made in Italy: Signifies high-quality craftsmanship and durable quality.
- Single-block structure made of AISI 304 stainless steel: Provides robust stability and easy cleaning.
- Fat-free labyrinth filters made of 18/10 stainless steel: Ensure efficient fat separation and hygienic operation.
Beschreibung
Product Overview

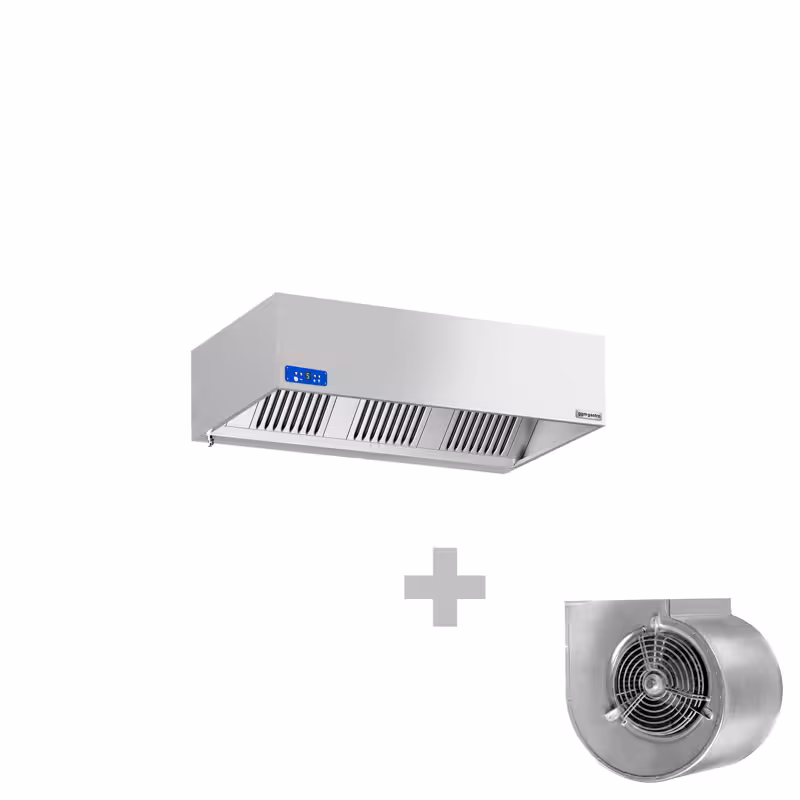

The box canopy with motor is a high-quality and robust solution for efficient air extraction in commercial kitchens. With a length of 1600 mm, it provides ample surface area to reliably capture vapours and grease. The integrated lighting ensures optimal visibility during work, while the built-in controller allows easy adjustment of the power.
Details and Features
The canopy impresses with its high-quality workmanship, made from AISI 304 stainless steel in a compact and durable single-block construction. The surface is Scotch-Brite satin-finished, which is not only visually appealing but also facilitates cleaning. The drip-free, hermetic gutter safely collects grease and features practical drain taps for easy maintenance. The grease-free 18/10 stainless steel labyrinth filter ensures effective filtration and long service life.
Conclusion and Areas of Application
This box canopy is perfectly suited for use in professional kitchens where hygiene and efficiency are top priorities. Thanks to the installation in minutes, it can be quickly mounted and put into operation. The combination of motor, controller, filter, and lamp makes it a versatile and reliable solution for extracting cooking vapours and grease particles.
Installation & Bedienung
- Pipe diameters should always remain consistent or only be reduced according to professional planning. An incorrect reduction can affect the entire system.
Reinigung & Pflege
- Modern flame protection filters made of stainless steel are designed to be cleaned in a commercial dishwasher.
- Daily cleaning prevents burning-on/resin build-up.
- Carefully lift the filter out of the holder (caution: fat droplets!).
- In case of heavy soiling, rinse coarse fat off with hot water.
- Wash in the dishwasher at high temperatures (at least 60–70 °C) using a fat-dissolving detergent.
- The filters must be completely dry before being reinserted to prevent mould or bacteria formation.
Technische Daten
Dimensions
| Width | 1.600 mm |
|---|---|
| Depth | 900 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 500 mm |
Drain dimensions:
| Width | 210 mm |
|---|---|
| Depth | 230 mm |
Details
| Number of filters | 3 |
|---|---|
| Extraction rate | 1.800 m³/h |
| Air turnover per hour | 1.300 m³ |
Connected load
| Power | 147 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 66 kg |
| Net weight | 50 kg |
Download / Explosionszeichnung
