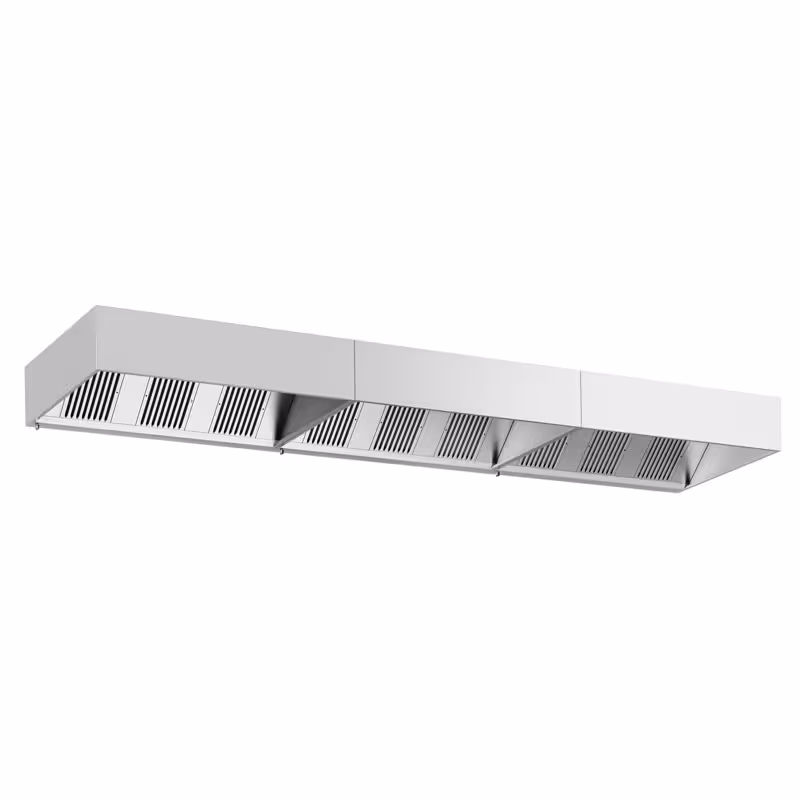

Commercial Wall-Mounted Extractor Hood – 6000mm – with Baffle Filters & Lighting
** The picture may slightly differ from the original.
** The picture may slightly differ from the original.
Commercial Wall-Mounted Extractor Hood – 6000mm – with Baffle Filters & Lighting
Product Advantages
- Made in Europe: Quality and reliability are ensured through European manufacturing.
- High-quality workmanship: Durability and robust design guarantee long-lasting use.
- Single-block structure made of AISI 304 stainless steel: Provides high stability and easy cleaning.
- Grease-free labyrinth filters made of 18/10 stainless steel: Efficient grease separation ensures clean air and reduced maintenance effort.
Description
Product Overview
The box canopy with a length of 6000mm is a professional solution for efficient extraction in gastronomy and industry. It impresses with its compact and robust design, which guarantees a long service life. Thanks to the integrated lighting, it provides optimal visibility at the workplace.
Product Details
The canopy is made of high-quality stainless steel AISI 304 and electronically welded, ensuring an especially stable and durable construction. The surface is Scotch-Brite satin finish, making it easy to maintain and resistant to scratches. For cleaning, a drip-free, hermetic gutter with drain taps is integrated, facilitating the collection and draining of fat. Additionally, the canopy features grease-free labyrinth filters made of stainless steel 18/10, ensuring effective grease separation. Installation is completed within minutes thanks to the well-designed single-block structure.
Conclusion and Areas of Application
This box canopy is ideally suited for large kitchens, canteens, and industrial kitchens where reliable and hygienic extraction is required. It combines functional design with high quality and simplifies cleaning and maintenance through its thoughtful details. With its efficient grease separation and integrated lighting, it ensures optimal working conditions and safety.
Installation & Operation
- Pipe diameters should always remain consistent or only be reduced according to professional planning. An incorrect reduction can affect the entire system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel are designed to be cleaned in a commercial dishwasher.
- Daily cleaning prevents burning on/resin build-up.
- Carefully lift the filter out of the holder (caution: fat droplets!).
- In case of heavy soiling, rinse coarse fat off with hot water.
- Wash in the dishwasher at high temperatures (at least 60–70 °C) using a fat-dissolving detergent.
- The filters must be completely dry before being reinserted to prevent mould or bacteria from forming.
Technical data
Dimensions
| Width | 6.000 mm |
|---|---|
| Depth | 1.400 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 500 mm |
Details
| Number of filters | 9 |
|---|---|
| Conveyor volume | 6.000 m³/h/h |
Connected load
| Voltage | 230V |
|---|---|
| Phase(s) | 1N~/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 165 kg |
| Net weight | 150 kg |
Download / Exploded drawing
Safety and disposal instructions
