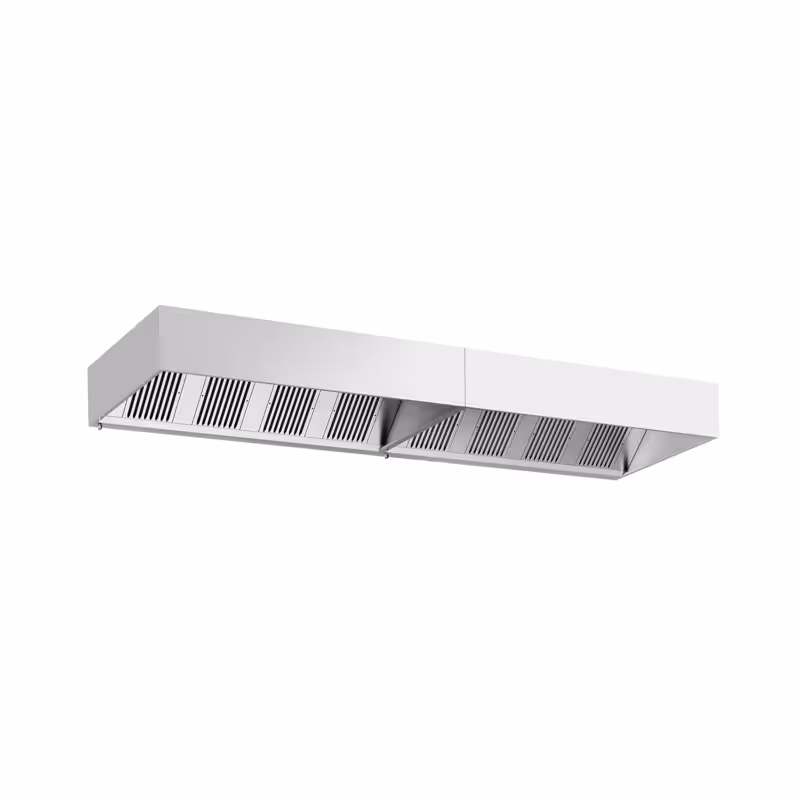

Commercial Wall-Mounted Extractor Hood – 4800mm – with Baffle Filters & Lighting
* The picture may slightly differ from the original.
Commercial Wall-Mounted Extractor Hood – 4800mm – with Baffle Filters & Lighting
Product Advantages
- Made in Europe: Ensures high quality standards and reliability through European manufacturing.
- High-quality workmanship: Guarantees durability and an appealing appearance of the product.
- Single-block structure made of AISI 304 stainless steel: Provides robustness and easy cleaning through the use of premium materials.
- Grease-free labyrinth filters made of 18/10 stainless steel: Increases efficiency in grease separation and facilitates maintenance.
Description
Product Overview
The box canopy with a length of 4800 mm is a high-quality ventilation solution specially designed for professional use. It impresses with its compact and robust construction, which ensures durable and reliable performance. Thanks to the integrated lighting, optimal illumination of the work area is guaranteed at all times.
Product Details
Manufactured from AISI 304 stainless steel, the canopy features electronically welded processing that provides stability and hygiene. The drip-free, hermetic gutter safely collects fats and is equipped with practical drain taps for easy cleaning. Additionally, the canopy is fitted with a grease-free labyrinth filter made of 18/10 stainless steel, which guarantees effective air purification. The surface is Scotch-Brite satin-finished, making it particularly easy to maintain. Installation takes only a few minutes thanks to the well-designed single-block structure.
Conclusion and Areas of Application
This box canopy is ideal for use in commercial kitchens and other areas where reliable and hygienic ventilation is required. It combines functional efficiency with easy maintenance and ensures a clean working environment. Its robust construction and high-quality materials make it the perfect choice for professional ventilation requirements.
Installation & Operation
- ⚠️ Pipe diameters should always remain consistent or only be reduced following professional planning.
- ⚠️ An incorrect reduction can affect the entire system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel can be cleaned in the commercial dishwasher.
- Daily cleaning prevents the filters from burning on and becoming resinous.
- Carefully lift the filter out of the holder, Caution: fat droplets!
- For heavy soiling, rinse coarse fat off with hot water.
- Wash in the dishwasher at high temperatures (at least 60–70 °C) using a grease-dissolving detergent.
- The filters must be completely dry before being reinserted to prevent mould and bacterial growth.
Technical data
Dimensions
| Width | 4.800 mm |
|---|---|
| Depth | 1.400 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 500 mm |
Details
| Number of filters | 8 |
|---|---|
| Conveyor volume | 4.800 m³/h/h |
Connected load
| Voltage | 230V |
|---|---|
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 105 kg |
| Net weight | 105 kg |
Download / Exploded drawing
