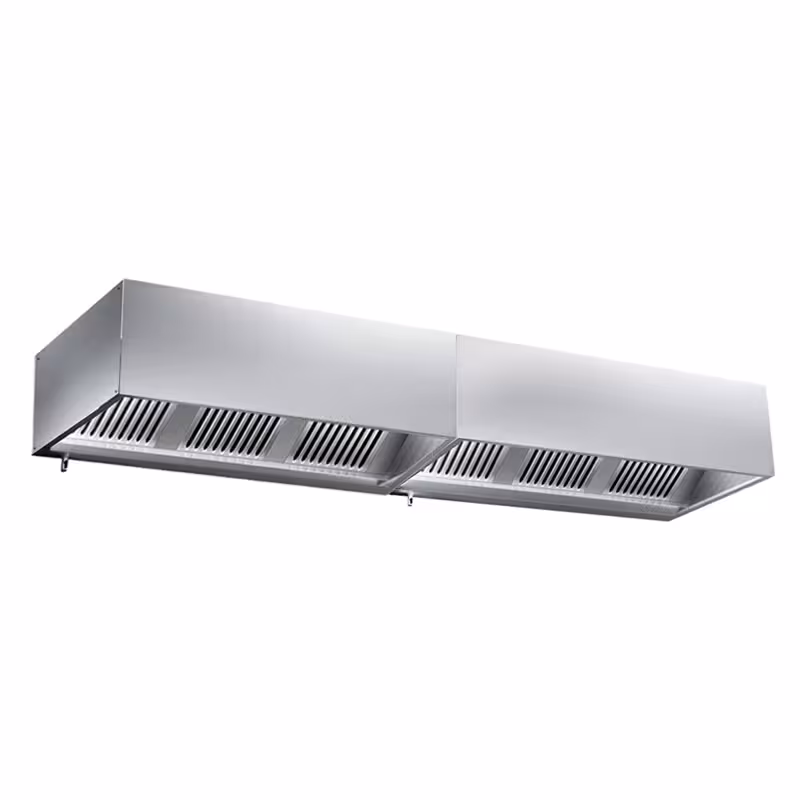

Commercial Wall-Mounted Extractor Hood – 4000mm – with Baffle Filters & Lighting

Installation depth: 900 mm
SKU KLP409#SET
  • Commercial Wall-Mounted Extractor Hood – 4000mm – with Baffle Filters & Lighting
  • Commercial Wall-Mounted Extractor Hood – 4000mm – with Baffle Filters & Lighting
  • Commercial Wall-Mounted Extractor Hood – 4000mm – with Baffle Filters & Lighting
  • Commercial Wall-Mounted Extractor Hood – 4000mm – with Baffle Filters & Lighting
  • Commercial Wall-Mounted Extractor Hood – 4000mm – with Baffle Filters & Lighting
  • Commercial Wall-Mounted Extractor Hood – 4000mm – with Baffle Filters & Lighting
  • Commercial Wall-Mounted Extractor Hood – 4000mm – with Baffle Filters & Lighting
  • Commercial Wall-Mounted Extractor Hood – 4000mm – with Baffle Filters & Lighting
  • Commercial Wall-Mounted Extractor Hood – 4000mm – with Baffle Filters & Lighting
  • Commercial Wall-Mounted Extractor Hood – 4000mm – with Baffle Filters & Lighting

* The picture may slightly differ from the original.

Guaranteed: Order by 12 noon for immediate dispatch!
£1,056.84 *
RRP £2,119.93
In stock: 1 - 3 Days
Free delivery**
Quantity:
Print* net price | gross price incl. 20% VAT.: £1,268.21

Description

Product Overview

The box canopy with a length of 4000mm is specially designed for use in the gastronomy sector. It impresses with a compact and robust design that guarantees long-lasting use. Thanks to the integrated filters and lighting, it is ideal for effectively extracting cooking vapours while simultaneously providing optimal visibility. The canopy is perfectly suited for professional kitchens where hygiene and functionality are top priorities.

Product Details

The canopy is made from high-quality AISI 430 stainless steel and is spot-welded, ensuring a stable and durable construction. A grease drain valve significantly facilitates cleaning and maintenance. The two-block structure ensures simple and quick assembly, allowing the canopy to be ready for use in minutes. The integrated lighting provides bright and even illumination of the work area, enhancing safety and efficiency in the kitchen.

Conclusion and Areas of Application

This box canopy is the optimal solution for catering businesses seeking a reliable and durable ventilation system. It stands out due to its robust construction, easy assembly, and practical cleaning. It is especially suitable for large kitchens, restaurants, and catering companies that value a clean and well-lit working environment. This canopy improves air quality and efficiently supports kitchen operations.

Installation & Operation

  • ⚠️ Pipe diameters should always remain consistent or only be reduced following professional planning.
  • ⚠️ An incorrect reduction can affect the entire system.

Cleaning & Maintenance

  • Modern flame protection filters made of stainless steel can be cleaned in the commercial dishwasher.
  • Daily cleaning prevents the filters from burning on and becoming resinous.
  • Carefully lift the filters out of the holder, as there may be drops of fat present.
  • In case of heavy soiling, rinse coarse fat off with hot water.
  • Wash in the dishwasher at a minimum of 60–70 °C using a degreasing detergent.
  • The filters must be completely dry before being reinserted to prevent mould and bacterial growth.

Technical data

Total dimensions

Width 4.000 mm
Depth 900 mm
Height 450 mm

Filter dimensions

Width 400 mm
Depth 500 mm

Details

Appliance type extractor hood
Conveyor volume 4.200 m³/h / h
Number of filters 6

Connected load

Voltage 230V
Phase(s) 1N/PE
Frequency 50 Hz

Delivery

Shipping method Haulage
Delivered as Mounted
Gross weight 152 kg
Net weight 80 kg

Download / Exploded drawing

Safety and disposal instructions

TUV
