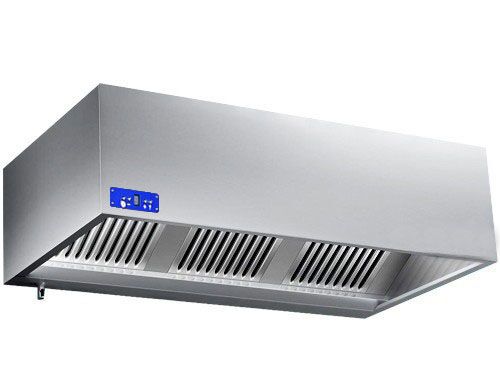

Commercial Wall-Mounted Extractor Hood - 2400mm - with Speed Controller, Baffle Filters & Lighting
* The picture may slightly differ from the original.
Commercial Wall-Mounted Extractor Hood - 2400mm - with Speed Controller, Baffle Filters & Lighting
Product Advantages
- Made in Italy: High-quality workmanship guarantees long-lasting quality and reliability.
- Single-block structure made of AISI 304 stainless steel: Robust construction ensures stability and easy cleaning.
- Fat-free labyrinth filters made of 18/10 stainless steel: Effective fat separation improves air quality and reduces maintenance effort.
Description
Product Overview
The boxed canopy with motor is a high-quality ventilation solution specially designed for professional use in kitchens and industrial areas. With a length of 2400mm, it offers efficient extraction and ensures clean air. The canopy is equipped with a controller, a filter, and an integrated lamp, significantly enhancing ease of use and functionality.
Product Details
The canopy impresses with its electronically welded construction, which ensures a robust and durable design. The drip-free, hermetic trough allows for the collection of fats with practical drain taps, facilitating cleaning and improving hygiene. The material consists of high-quality AISI 304 stainless steel with a Scotch-Brite satin finish, which is not only visually appealing but also corrosion-resistant and easy to maintain. The grease-free labyrinth filters made of 18/10 stainless steel guarantee effective grease separation and contribute to air purification. Thanks to its compact and sturdy design, installation can be completed in minutes.
Conclusion and Areas of Application
This boxed canopy is the ideal choice for anyone seeking a reliable and powerful ventilation solution that is also easy to operate and maintain. It is perfectly suited for use in commercial kitchens, large-scale kitchens, and other areas where efficient grease separation and air purification are required. The integrated lighting also provides optimal visibility during work. Overall, the canopy offers a perfect combination of functionality, quality, and ease of handling.
Installation & Operation
- ⚠️ Pipe diameters should always remain consistent or be professionally reduced.
- ⚠️ An incorrect reduction can affect the entire system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel can be cleaned in the commercial dishwasher.
- Daily cleaning prevents the filters from burning in and becoming resinous.
- Carefully lift the filters out of the holder, as there may be drops of fat present.
- For heavy soiling, rinse coarse fat off with hot water.
- Wash in the dishwasher at a minimum of 60–70 °C using a degreasing detergent.
- The filters must be completely dry before being reinstalled.
- This prevents the formation of mould and bacteria.
Technical data
Dimensions
| Width | 2.400 mm |
|---|---|
| Depth | 1.400 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 500 mm |
Drain dimensions:
| Width | 260 mm |
|---|---|
| Depth | 300 mm |
Details
| Number of filters | 4 |
|---|---|
| Extraction rate | 2.400 m³/h |
| Air turnover per hour | 2.200 m³ |
Connected load
| Power | 420 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 109 kg |
| Net weight | 64 kg |
Download / Exploded drawing
Safety and disposal instructions
