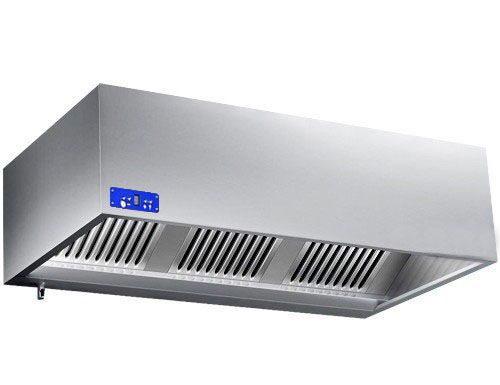

Commercial Wall-Mounted Extractor Hood – 1400mm – with Speed Controller, Baffle Filters & Lighting
* The picture may slightly differ from the original.
Commercial Wall-Mounted Extractor Hood – 1400mm – with Speed Controller, Baffle Filters & Lighting
Product Advantages
- Made in Italy: Stands for high-quality workmanship and Italian quality standards.
- Single-block structure made of AISI 304 stainless steel: Ensures durability and easy cleaning of the hood.
- Grease-free labyrinth filters made of 18/10 stainless steel: Increase efficiency in grease separation and are particularly hygienic.
Description
Product Overview
The box canopy with motor is a high-quality ventilation solution specifically designed for use in kitchens and commercial areas. With a width of 1400 mm, it offers efficient extraction and ensures a clean indoor climate. The integrated lighting improves visibility in the work area, making the canopy particularly practical.
Product Details
The canopy features a electronically welded, robust construction made of AISI 304 stainless steel, ensuring long service life and easy cleaning. The drip-free, hermetic gutter reliably collects fats and is equipped with drain taps to facilitate maintenance. The grease-free labyrinth filter made of 18/10 stainless steel guarantees effective grease separation without blockages. Thanks to the compact single-block design, installation is possible within minutes. A controller allows easy adjustment of the motor power.
Conclusion and Areas of Application
This box canopy is ideal for professional kitchens and catering establishments that value reliable air purification and easy maintenance. It impresses with its durable workmanship and practical features such as lighting and grease drain tap. Perfectly suited for use in restaurants, canteens, and catering businesses, it provides a pleasant working environment and optimal hygiene.
Installation & Operation
- ⚠️ Pipe diameters should always remain consistent.
- ⚠️ Reductions must be professionally planned.
- ⚠️ An incorrect reduction impairs the system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel can be cleaned in the commercial dishwasher.
- Daily cleaning prevents the filters from burning in and becoming resinous.
- Carefully lift the filters out of the holder, as there may be drops of fat present.
- For heavy soiling, rinse coarse fat off with hot water.
- Wash in the dishwasher at a minimum of 60–70 °C using a degreasing detergent.
- The filters must be completely dry before being reinstalled.
- This prevents the formation of mould and bacteria.
Technical data
Dimensions
| Width | 1.400 mm |
|---|---|
| Depth | 1.100 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 500 mm |
Drain dimensions:
| Width | 210 mm |
|---|---|
| Depth | 230 mm |
Details
| Number of filters | 3 |
|---|---|
| Extraction rate | 1.800 m³/h |
| Air turnover per hour | 1.300 m³ |
Connected load
| Power | 147 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 64 kg |
| Net weight | 50 kg |
Download / Exploded drawing
Safety and disposal instructions
