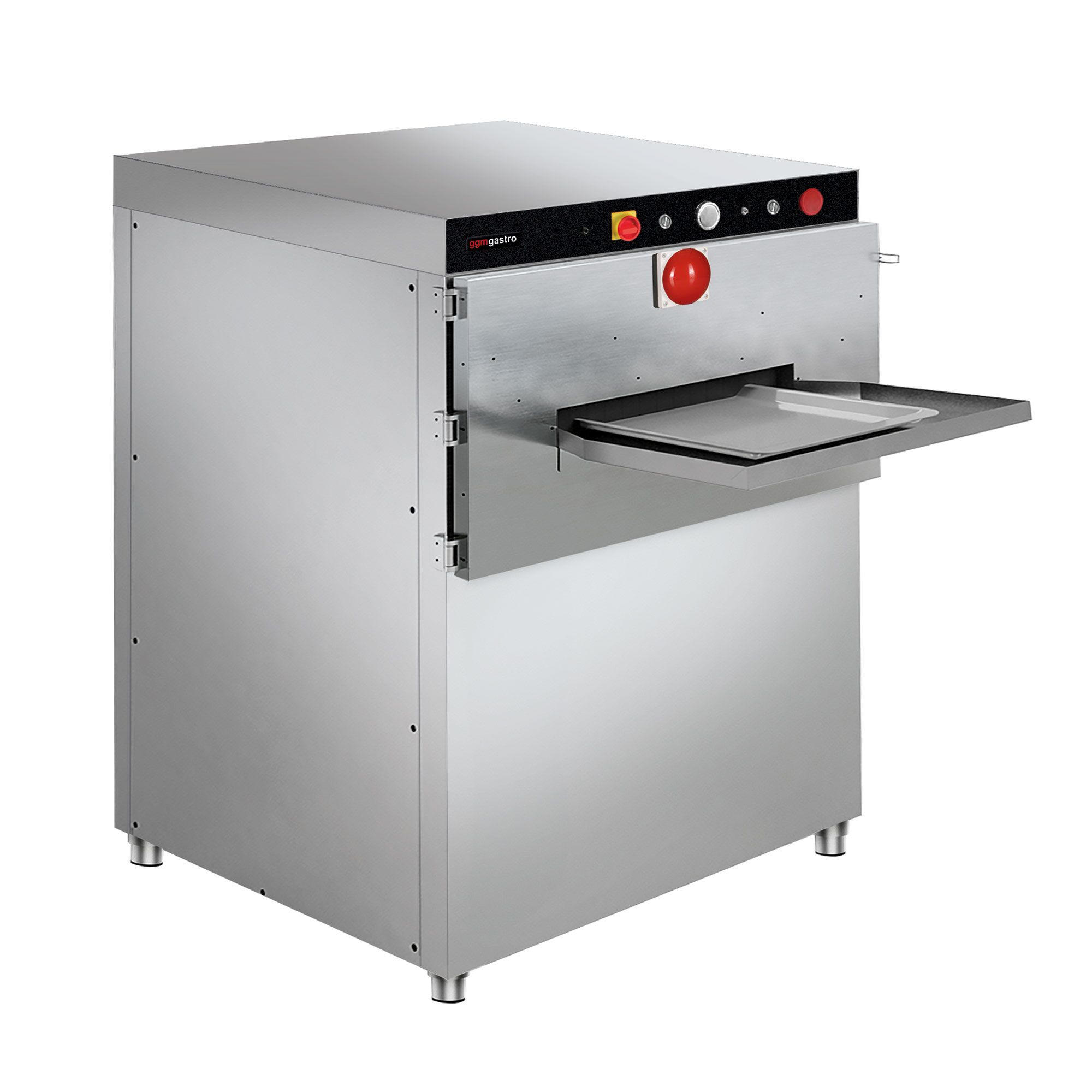

Commercial Tray Dishwasher – Single-tray operation - 600x400mm trays - 3.2 kW
** The picture may slightly differ from the original.

** The picture may slightly differ from the original.
Commercial Tray Dishwasher – Single-tray operation - 600x400mm trays - 3.2 kW
Description
Product Overview
The tray dishwasher with 3.20 kW is the ideal solution for the efficient cleaning of trays in commercial kitchens and large-scale catering facilities. It impresses with its high washing performance, enabling thorough and rapid cleaning. Thanks to the simple and intuitive control panel, the machine is quickly ready for use and easy to operate, significantly easing daily work routines.
Product Details
Equipped with an integrated water heating system, the dishwasher ensures optimal temperatures during the washing process. The adjustment of washing intensity via a rotary control allows flexible adaptation to different levels of soiling. The machine is made of high-quality stainless steel, which is not only durable but also particularly hygienic. The feet made of stainless steel ensure stability and longevity. A drain valve for dirty water facilitates cleaning and maintenance. Additionally, the sealed lid structure prevents water leakage, while the water tray at the basin outlet safely collects drip water. The removable washing brushes inside allow for uncomplicated cleaning of the machine itself.
Conclusion and Areas of Application
This tray dishwasher is perfectly suited for use in canteens, hospitals, schools, and other facilities with high washing volumes. Its robust construction and flexible adjustment options make it a reliable partner for daily hygiene. With its combination of performance, ease of use, and hygiene, it meets all the requirements of a professional dishwasher.
Installation & Operation
- When the device is installed and started up for the first time, the water heating system will only be activated once the automatic water inlet is complete
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1500-2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
Technical data
Dimensions
| Width | 790 mm |
|---|---|
| Depth | 1.390 mm |
| Height | 1.270 mm |
max. tray size
| Width | max 600 mm |
|---|---|
| Depth | max 400 mm |
Water connection
| Water inlet | 3/4" |
|---|
Details
| Capacity | 360 Trays per hour |
|---|
Connected load
| Power | 3,50 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N~/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 160 kg |
| Net weight | 140 kg |
Download / Exploded drawing
