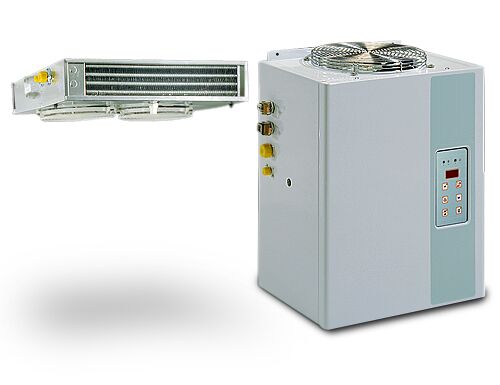

Commercial Split Cooling Unit Premium PLUS - up to 23,9 m³

Design

• Protection type IP 23
• With lighting
• Condensation water drain
• Electronic control
• Expansion with capillary hose
• Connection for pre-filled coolant lines
• Door contact switch - high pressure switch and remote control panel
• Self-supporting housing (galvanised powder-coated sheet)
• Hermetically compressor with thermal winding protection
• Heat exchanger with copper piping and aluminium lamellae
• Particularly hygienic due to easy cleaning

High quality

• Long service life
• High quality split unit
• High precision and stability
• Compact chiller unit as split device
• Superior product made in Europe

Insulation

• Corresponding to the EU guidelines (Halon regulations)
• Particularly energy-efficient due to the insulation at the top
• Top-quality insulation values through the use of polyurethane

Cooling performance

• With refrigerant
• Temperature: -5 °C to +8 °C
• Room volume: 23,9 m³
• Refrigerant: R452a / 2280 g
• Air cooled condensers
• Ambient air temperatures up to +43 °C
• Powerful, continuous cooling
• Automatic defrosting can be programmed by a regulator

Connection

• Compressor output: 1575 W
• Electrical connection: 400 V / 50 Hz

Dimensions

• Outer dimension of the refrigeration unit W x D x H: 650 x 390 x 840 mm
• Outer dimension of the vaporiser W x D x H: 1314 x 402 x 350 mm

Supplied with

• Including contact switch
• Includes the interior lighting for the cooling room
• Supplied without refrigeration cell

Please note:

• The refrigeration cell must be ordered separately
• Winter equipment for outdoor use available subject to a surcharge

Compliance with standards

• Manufactured in accordance with relevant hygiene and safety standards
• Meets CE,EU standards ISO 9001 (international TÜV certificate)
• Materials comply with European food safety standards

OPTIONAL ACCESSORIES:

• KC range of refrigeration cell
