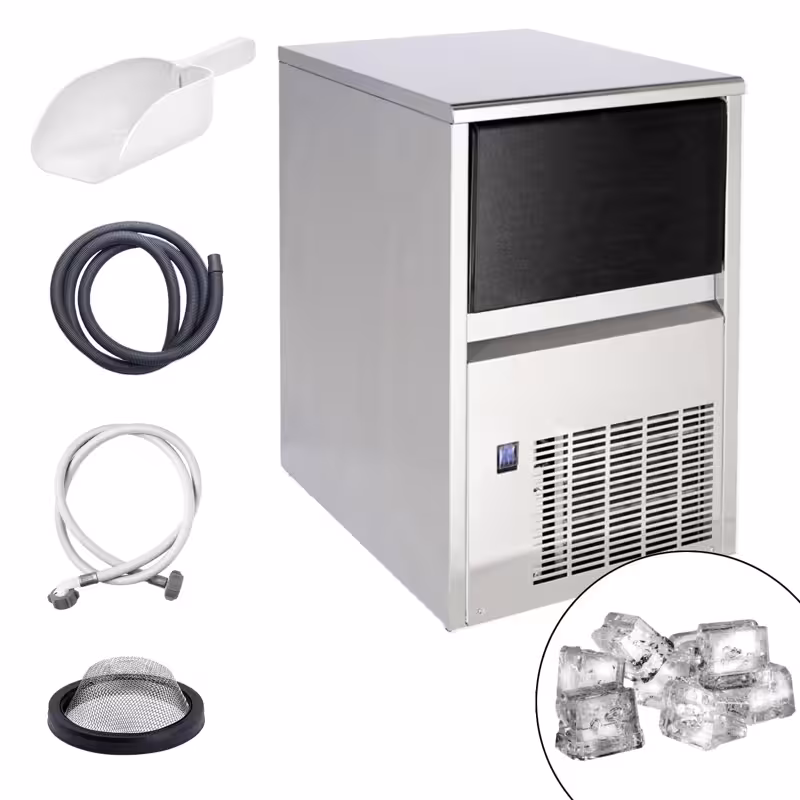

Commercial Ice Machine - Cube - 23 kg/24 h
* die Abbildung kann vom Original leicht abweichen.
Commercial Ice Machine - Cube - 23 kg/24 h
Beschreibung
- Ice cube mould: full cube
- Anti-limescale spray system
- "Never Stop" motor pump
Efficient ice cube maker for professional use
The ice cube maker produces solid, crystal-clear full cubes and is ideal for businesses with limited space. Equipped with an anti-limescale spray system and a "Never Stop" motor pump, it guarantees reliable performance even with hard water. The electronic control allows operation under extreme climatic conditions.
Versatility and sustainability in ice production
The body made of high-quality AISI 304 stainless steel ensures durability and hygiene. The machine is environmentally friendly, energy-efficient and particularly water-saving. Due to strong and consistently maintained cooling, it achieves higher efficiency and production volume while generating less heat during operation.
Installation & Bedienung
- This appliance requires a fixed water connection!
- A water drainage system is necessary.
- Warning: The integrated containers are not suitable for the permanent storage of ice cubes!
Reinigung & Pflege
- For flawless operation, it is recommended to descale the device regularly – suitable descaling agents are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
Technische Daten
Dimensions
| Product Dimensions (WxDxH) | 350 x 475 x 595 mm |
|---|
Details
| Ice Cube Shape | Whole cubes |
|---|---|
| Dimensions of a full ice cube | 36 x 26 x 23 mm |
| Ice Production per Day | 23 kg |
| Maximum filling quantity | 6 kg |
Composition
| Product material | Stainless Steel AISI 304 |
|---|---|
| Water pressure | 1 bis 6 bar |
Cooling performance
| Cooling type | Ventilation |
|---|---|
| Water temperature | 5 bis 43 °C |
| Environmental temperature | 5 bis 43 °C |
| Refrigerant Type | R290 |
| Refrigerant Quantity | 0,07 kg |
Connected load
| Operation | manual |
|---|---|
| Power | 258 Watt |
| Power Connection | 230V |
| Phase | 1N/PE |
| Current intensity | 10 A |
| Water Connection | In/Outlet |
| Dimension water inlet | 3/4" |
Delivery
| Shipping Method | Haulage |
|---|---|
| Delivery condition | Mounted |
| Gross Weight | 33 kg |
| Net Weight | 30 kg |
Download / Explosionszeichnung
