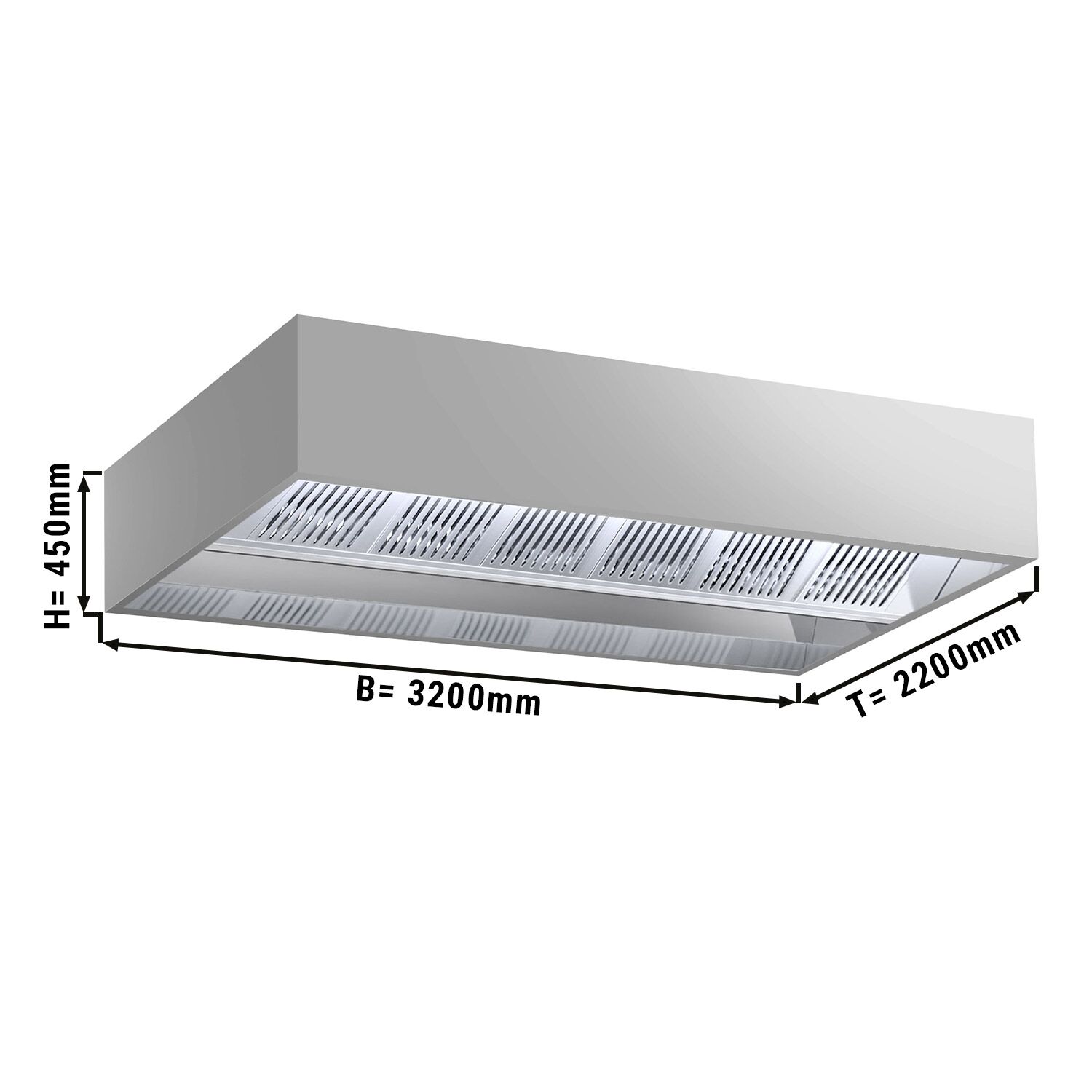

Commercial Extraction Canopy - Ceiling-Suspended - 3200mm - without Motor (for External Fan) - with Grease Filters - Induction Series
Installation depth: 2200 mm
SKU IDHK3222
* The picture may slightly differ from the original.
Print* net price | gross price incl. 20% VAT.: £5,097.22
Commercial Extraction Canopy - Ceiling-Suspended - 3200mm - without Motor (for External Fan) - with Grease Filters - Induction Series
Rate now
SKU IDHK3222
Installation depth: 2200 mm
Print* net price | gross price incl. 20% VAT.: £5,097.22
Accessories (3)
Spare Parts (1)
Product Advantages
- Two-stage system: Ensures simultaneous extraction of warm kitchen vapours and targeted supply air at the hood body. This guarantees a balanced air exchange.
- Higher efficiency: The capture rate is significantly increased, so less vapour escapes sideways from the hood. This contributes to a cleaner kitchen environment.
- Better cleanliness: Vapours are captured more precisely, resulting in less grease depositing on surfaces outside the extraction area. This makes cleaning easier.
- Less draught: The air is expelled directly at the hood, reducing unpleasant air currents in the room. This ensures a more comfortable indoor climate.
Description
Product Overview
Discover the induction ceiling hood with a length of 3200 mm, specially designed for professional kitchens. This hood comes without a motor and is equipped with 12 type B filters to ensure efficient air purification. It is ideal for use in large kitchens, restaurants, or other catering establishments that require a powerful and hygienic extraction solution.Product Details
The hood impresses with its high-quality workmanship featuring a spot-welded, single-block structure made of AISI 304 stainless steel, ensuring durability and easy cleaning. The drip-free, hermetic gutter with drain taps allows for the collection and easy disposal of fats, significantly simplifying maintenance. Integrated LED internal lighting provides optimal visibility in the working environment. With an air extraction volume of 5400 m³/h, the hood guarantees effective removal of vapours and odours.Conclusion and Areas of Application
This induction ceiling hood is the perfect solution for those seeking a robust, low-maintenance, and high-performance extraction hood without a motor. It is particularly suitable for use in professional kitchens where hygiene and efficiency are top priorities. Thanks to the high-quality materials and thoughtful design, it offers reliable support in air purification and grease separation. Ideal for gastronomy, large kitchens, and catering operations.Installation & Operation
- ⚠️ Pipe diameters should always remain consistent or only be reduced following professional planning.
- ⚠️ An incorrect reduction can affect the entire system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel are dishwasher safe.
- Clean the filters daily to prevent burning in and resin build-up.
- Carefully lift the filters out of the holder, as fat droplets may be present.
- For heavy soiling, rinse off coarse fat with hot water.
- Wash in the dishwasher at a minimum of 60–70 °C using a degreasing detergent.
- Allow the filters to dry completely before reinserting to prevent mould formation.
Technical data
Dimensions
| Width | 3.200 mm |
|---|---|
| Depth | 2.200 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 400 mm |
Details
| Exhaust air capacity | 5.400 m³/h |
|---|---|
| Supply air flow rate | 3.800 l |
| Number of filters | 12 |
Connected load
| Voltage | 230V |
|---|---|
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 241,20 kg |
| Net weight | 201 kg |
