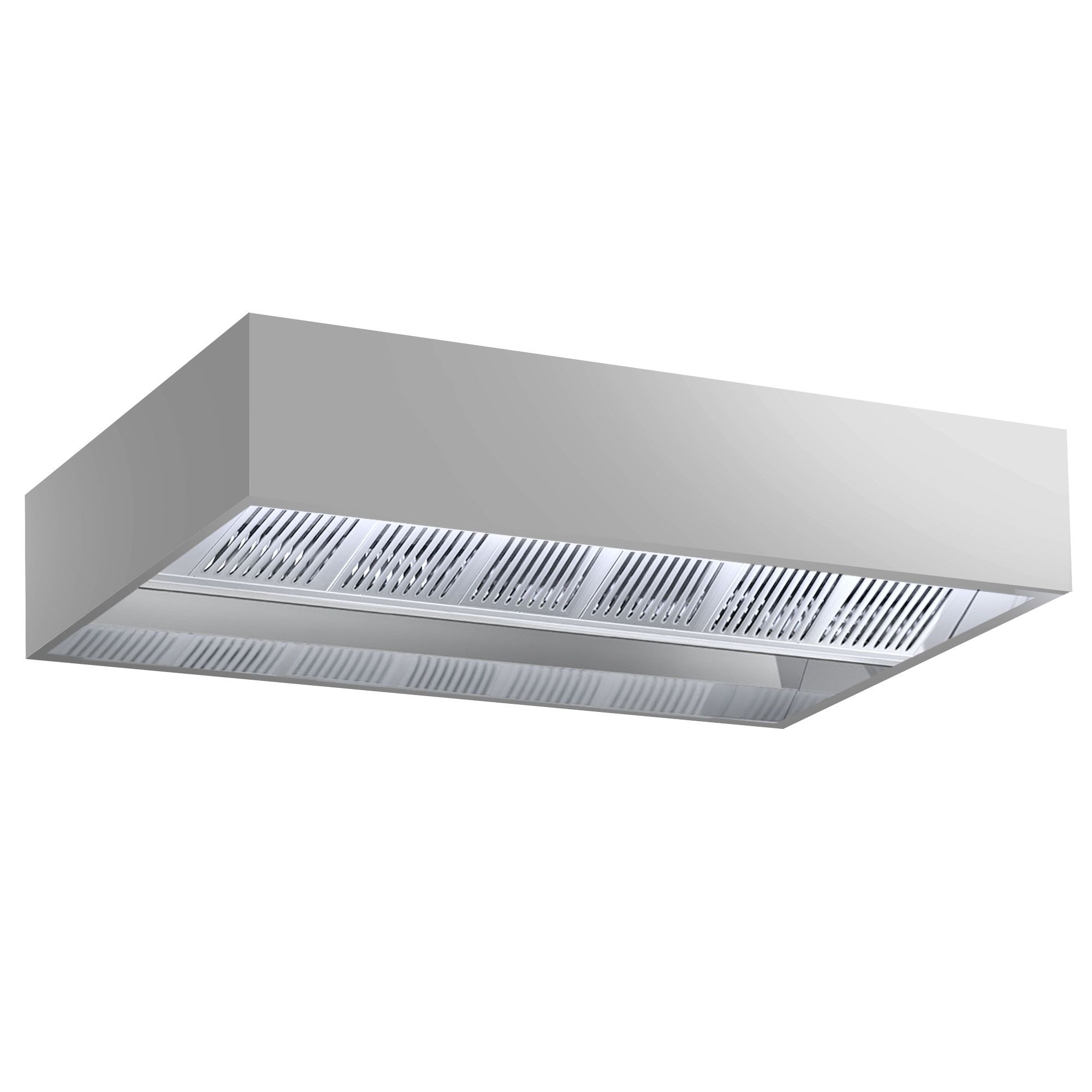

Commercial Extraction Canopy - Ceiling-Suspended - 3000mm - without Motor (for External Fan) - with Grease Filters - Induction Series
Installation depth: 1800 mm
Art.-Nr. IDHK3018
* die Abbildung kann vom Original leicht abweichen.
Drucken* Nettopreis | Bruttopreis inkl. 20% MwSt.: £3,440.70
Commercial Extraction Canopy - Ceiling-Suspended - 3000mm - without Motor (for External Fan) - with Grease Filters - Induction Series
Jetzt bewerten
Art.-Nr. IDHK3018
Installation depth: 1800 mm
Drucken* Nettopreis | Bruttopreis inkl. 20% MwSt.: £3,440.70
Zubehör (3)
Ersatzteile (1)
Produktvorteile
- Two-stage system: It extracts warm kitchen exhaust air while simultaneously directing fresh outside air directly at the hood body, ensuring optimal air circulation.
- Higher efficiency: The capture rate is significantly higher, resulting in less vapour escaping into the kitchen at the sides of the hood.
- Better cleanliness: The targeted capture of fumes reduces the deposition of grease on surfaces outside the extraction area.
- Less draught: The air is expelled directly at the hood, reducing unpleasant air currents in the rest of the room.
Beschreibung
Product Overview
The induction ceiling hood with a length of 3000mm is a high-quality solution for professional use in large kitchens. It is specially designed to effectively extract cooking vapours, thereby ensuring a pleasant indoor climate. The absence of a motor makes it ideal for connection to existing ventilation systems, which are operated separately.Product Details
Made from AISI 304 stainless steel, the hood impresses with its robust and durable construction. The spot-welded design guarantees stability and a clean finish. A drip-free, hermetic gutter with drain taps effectively collects fats and facilitates cleaning. The surface is Scotch-Brite satin-finished, which is not only visually appealing but also simplifies maintenance. Integrated LED lighting ensures optimal visibility.Conclusion and Areas of Application
This ceiling hood is perfectly suited for use in commercial kitchens where high standards of hygiene and functionality are required. It provides reliable extraction of cooking vapours and fats, supporting a clean and safe working environment. Thanks to the high-quality materials and thoughtful details, it is particularly durable and easy to maintain. Ideal for restaurants, canteens, or large-scale kitchens seeking an efficient and hygienic ventilation solution.Installation & Bedienung
- Pipe diameters should always remain consistent or only be reduced according to professional planning. An incorrect reduction can affect the entire system.
Reinigung & Pflege
- Modern flame protection filters made of stainless steel are designed to be cleaned in a commercial dishwasher.
- Daily cleaning prevents burning-on/resin build-up.
- Carefully lift the filter out of the holder (caution: fat droplets!).
- In case of heavy soiling, rinse coarse fat off with hot water.
- Wash in the dishwasher at high temperatures (at least 60–70 °C) using a fat-dissolving detergent.
- The filters must be completely dry before being reinserted to prevent mould or bacteria formation.
Technische Daten
Dimensions
| Width | 3.000 mm |
|---|---|
| Depth | 1.800 mm |
| Height | 450 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 400 mm |
Details
| Exhaust air capacity | 5.400 m³/h |
|---|---|
| Supply air flow rate | 3.800 m³/h |
| Number of filters | 12 |
Connected load
| Voltage | 230V |
|---|---|
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 201,60 kg |
| Net weight | 168 kg |
