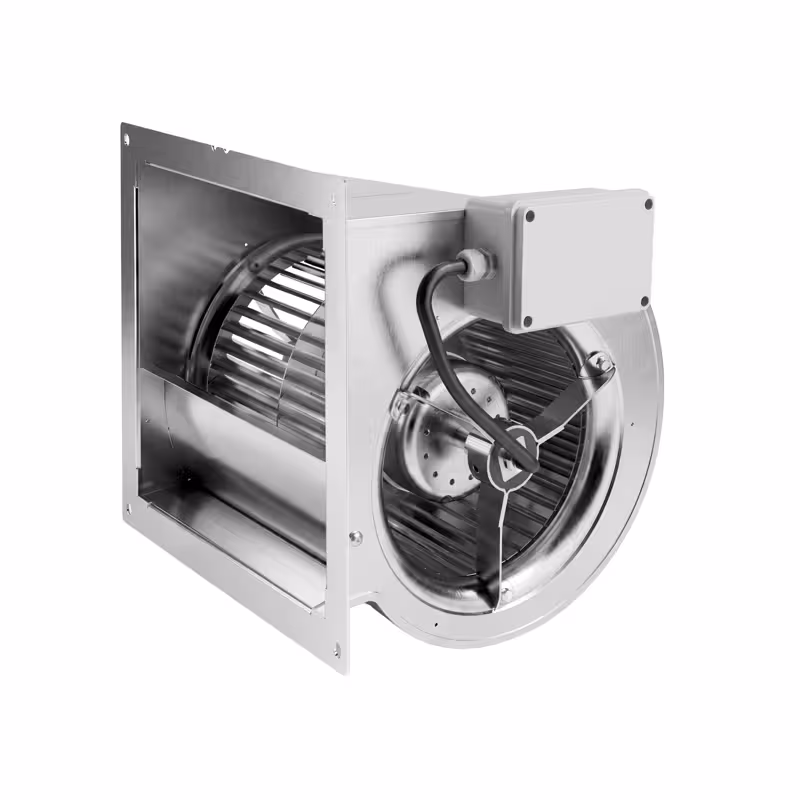

Commercial Centrifugal Extract Fan 2200 m³/h - for Wall‑Mounted Extraction Canopy
SKU RS2520H
DARE 9/9R XPL 2031004 1F 4P 1V + GR +FL
Print* net price | gross price incl. 20% VAT.: £274.54
Accessories
Description
Design
- Built-in motor for wall hoods
- TOP performance 2.500 m³
- Low energy consumption
- Environmentally-friendly
- Self-aligning lubricant nozzle
- Without speed regulator and feet
- Practical, maintenance-free machine
- Simple assembly
- Quiet operation
Quality
- Radial fan made of galvanised steel
- Fan wheel made of galvanised steel
Scope of delivery
Guidelines
- Manufactured in accordance with relevant hygiene and safety standards
- CE marking as proof of conformity with EU regulatory standards
- Material complies with European food standards
Notes
- To prevent possible damage to the motor and/or the appliance, it is essential to connect the thermal protection to the speed controller if the wiring diagram shows two lines provided for this purpose
- With single-phase motors, the thermal protection is often integrated in the motor so that no external connections to the speed controller are required
- Always check the electrical connections carefully before commissioning the fan and/or appliance. These may be located on the fan/device itself or in the connection box
- Damage caused by faulty electrical connections is excluded from the warranty
Technical data
Dimensions
| Width | 376 mm |
|---|---|
| Depth | 320 mm |
| Height | 348 mm |
Details
| Speed regulation | Governor |
|---|---|
| Air outlet dimensions | 261 mm |
| Air turnover per hour | 2.500 m³ |
| Temperature | -20 °C to 40 °C |
Connected load
| Power | 400 Watt |
|---|---|
| Voltage | 230V |
| Frequency | 50 Hz |
| Phases | 1N/PE |
| Amperage | 3,40 A |
Delivery
| Shipping method | Parcel |
|---|---|
| Delivered as | Mounted |
| Weight | 16,18 kg |
Download
Download / Exploded drawing
Download / Exploded drawing
