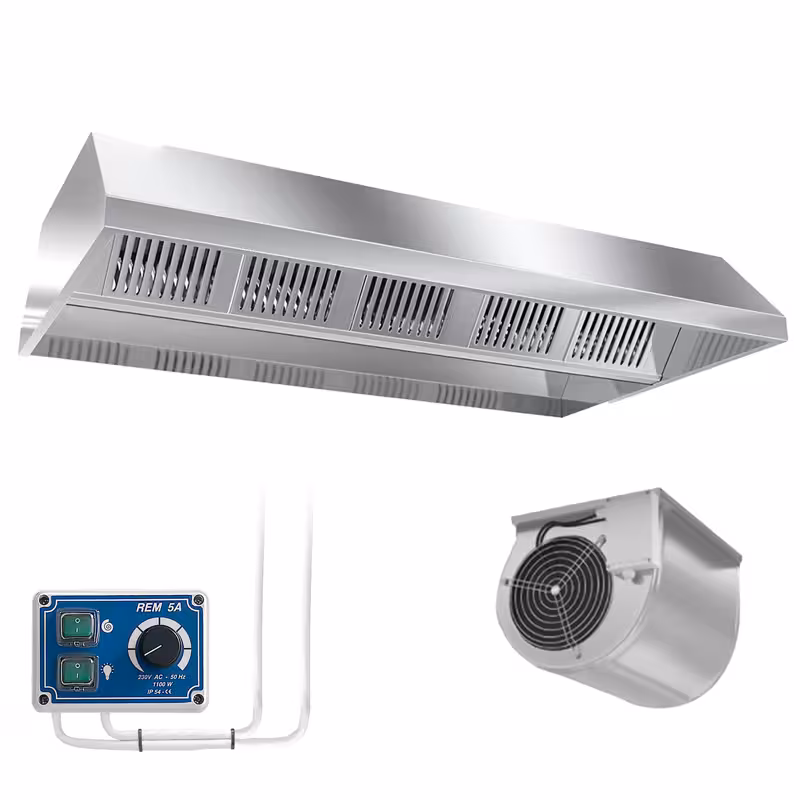

Commercial Ceiling-Mounted Extraction Canopy with Integral Fan - 3000mm - with External Speed Controller, Baffle Filters & LED Lights - 1500mm Deep
* The picture may slightly differ from the original.
Commercial Ceiling-Mounted Extraction Canopy with Integral Fan - 3000mm - with External Speed Controller, Baffle Filters & LED Lights - 1500mm Deep
Product Advantages
- Made in Italy: Represents high-quality craftsmanship and reliable quality from Italian manufacturing.
- Single-block structure made of AISI 304 stainless steel: Ensures durability and easy cleaning through robust materials.
- Grease-free labyrinth filters made of 18/10 stainless steel: Provides efficient filtration and hygienic operation without grease deposits.
Description
Product Overview
The ceiling hood with motor and a length of 3000 mm is a high-quality solution for professional ventilation systems in the gastronomy and industrial sectors. It impresses with its compact and robust design, which guarantees durable and reliable use. The unit is ideally suited for efficiently extracting fats and vapours, thus ensuring a pleasant indoor climate.
Product Details
Particularly noteworthy is the externally mounted control panel, which allows both the fan speed and lighting to be easily and comfortably adjusted. The welded construction ensures stability and longevity, while the drip-free, hermetic trough safely collects fats and drains them via drain taps. The surface is Scotch-Brite satin finish, which is not only visually appealing but also facilitates cleaning. The single-block stainless steel construction made from AISI 304 guarantees the highest hygiene and quality standards. In addition, the labyrinth-style grease filters made from 18/10 stainless steel are particularly effective and easy to clean.
Conclusion and Areas of Application
This ceiling hood is perfect for use in kitchens and commercial areas where a powerful and hygienic ventilation solution is required. The quick installation also makes it very user-friendly. Whether in restaurants, large kitchens, or production facilities – this hood ensures efficient air purification and grease separation, significantly easing the daily work routine.
Installation & Operation
- ⚠️ Pipe diameters should always remain consistent or be professionally reduced.
- ⚠️ An incorrect reduction compromises the entire system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel can be cleaned in the commercial dishwasher.
- Daily cleaning prevents the filters from burning in and becoming resinous.
- Carefully lift the filters out of the holder, as there may be drops of fat present.
- For heavy soiling, rinse coarse fat off with hot water.
- Wash in the dishwasher at a minimum of 60–70 °C using a degreasing detergent.
- The filters must be completely dry before being reinstalled.
- This prevents the formation of mould and bacteria.
Technical data
Dimensions
| Width | 3.000 mm |
|---|---|
| Depth | 1.500 mm |
| Height | 450 mm |
Drain size
| Width | 260 mm |
|---|---|
| Height | 230 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 400 mm |
Details
| Conveyor volume | 2.800 m³/h / h |
|---|---|
| Number of filters | 12 |
| Air turnover per hour | 2.200 m³ |
Connected load
| Power | 420 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 158 kg |
| Net weight | 124 kg |
Download / Exploded drawing
