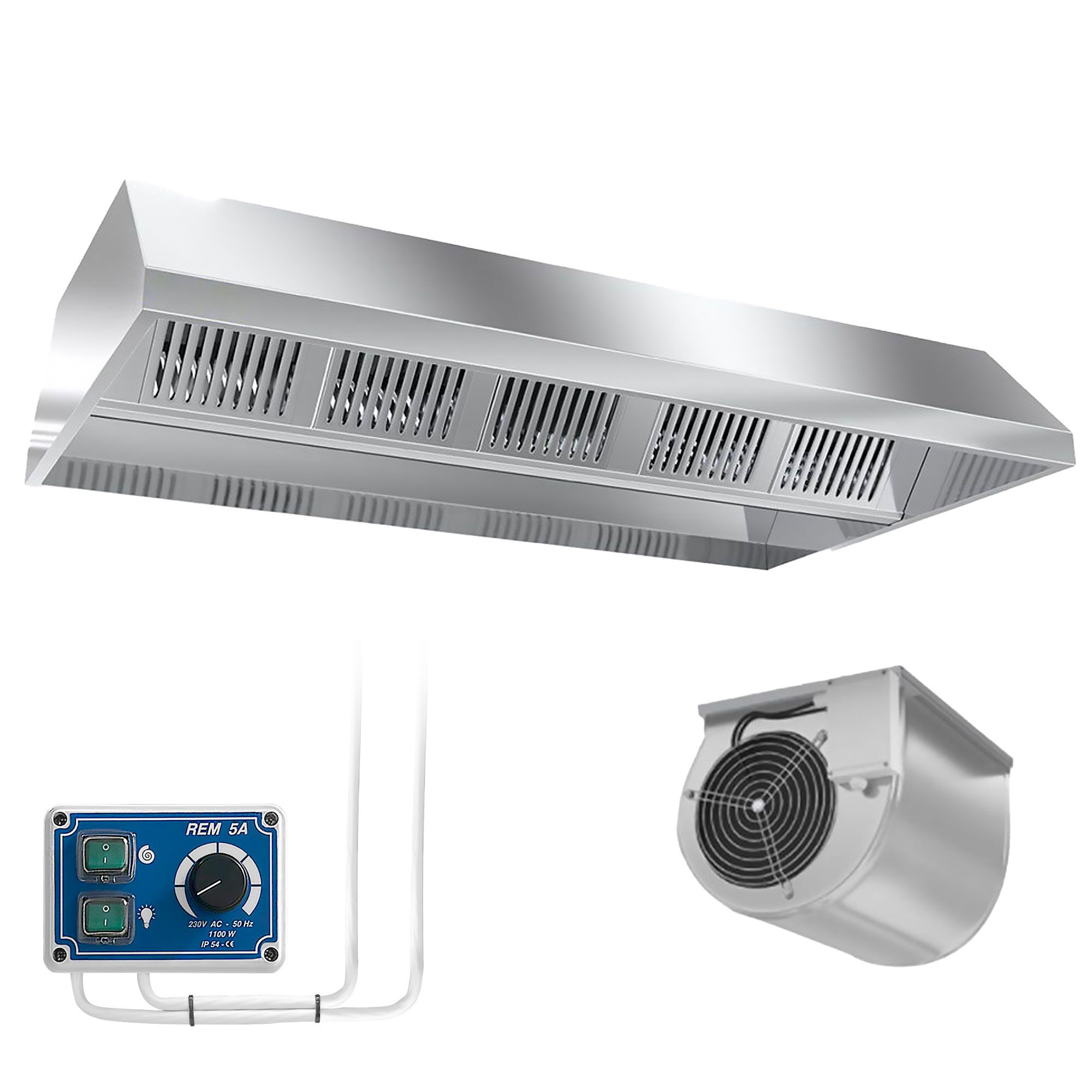

Commercial Ceiling-Mounted Extraction Canopy with Integral Fan - 1600mm - with External Speed Controller, Baffle Filters & LED Lights - 1300mm Deep
* The picture may slightly differ from the original.
Commercial Ceiling-Mounted Extraction Canopy with Integral Fan - 1600mm - with External Speed Controller, Baffle Filters & LED Lights - 1300mm Deep
Product Advantages
- Made in Italy: Represents high-quality craftsmanship and reliable quality from Italian manufacturing.
- Single-block structure made of AISI 304 stainless steel: Provides durable stability and easy cleaning thanks to robust material.
- Grease-free labyrinth filters made of 18/10 stainless steel: Ensure efficient grease separation and hygienic operation.
Description
Product Overview
The ceiling hood with motor is a high-quality solution for professional ventilation systems in the gastronomy and industrial sectors. With a length of 1600mm, it provides sufficient surface area for the efficient extraction of vapours and odours. The external control unit allows comfortable adjustment of the fan speed and lighting, making operation particularly user-friendly.
Product Details
The hood impresses with its high-quality workmanship and a welded construction that ensures stability and durability. The drip-free, hermetic gutter safely collects grease and features practical drain taps, which facilitate cleaning. The material consists of AISI 304 stainless steel with a Scotch-Brite satin finish, which is not only robust but also visually appealing. For optimal filtration, grease-free labyrinth filters made of 18/10 stainless steel effectively retain grease particles. The compact and sturdy design enables installation within minutes and a long service life.
Conclusion and Areas of Application
This ceiling hood is ideally suited for use in kitchens, large-scale kitchens, or other commercial areas where reliable ventilation is required. Thanks to the integrated lighting and the easy operation via the external controller, the workspace is optimally illuminated and air quality is effectively improved. In summary, the hood offers a durable, easy-to-clean, and powerful solution for professional ventilation systems.
Installation & Operation
- ⚠️ Pipe diameters should always remain consistent or only be reduced following professional planning.
- ⚠️ An incorrect reduction can affect the entire system.
Cleaning & Maintenance
- Modern flame-retardant filters made of stainless steel are dishwasher safe and can be cleaned in commercial dishwashers.
- Daily cleaning prevents the filters from burning on and becoming resinous.
- Carefully lift the filters out of the holder, as grease droplets may be present.
- In case of heavy soiling, rinse off coarse grease with hot water.
- Wash in the dishwasher at a minimum of 60–70 °C using a degreasing detergent.
- The filters must be completely dry before being reinserted to prevent mould and bacterial growth.
Technical data
Dimensions
| Width | 1.600 mm |
|---|---|
| Depth | 1.300 mm |
| Height | 450 mm |
Drain size
| Width | 210 mm |
|---|---|
| Height | 230 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 400 mm |
Details
| Conveyor volume | 1.800 m³/h/ h |
|---|---|
| Number of filters | 6 |
| Air turnover per hour | 1.300 m³ |
Connected load
| Power | 147 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 106 kg |
| Net weight | 78 kg |
Download / Exploded drawing
Safety and disposal instructions
