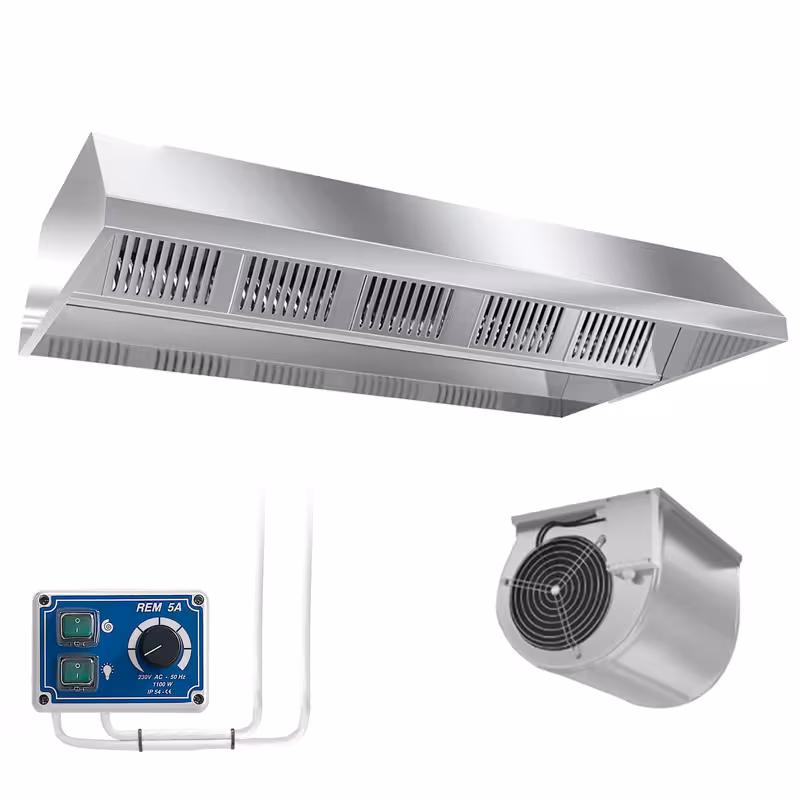

Commercial Ceiling-Mounted Extraction Canopy with Integral Fan - 1200mm - with External Speed Controller, Baffle Filters & LED Lights - 1300mm Deep
* The picture may slightly differ from the original.
Commercial Ceiling-Mounted Extraction Canopy with Integral Fan - 1200mm - with External Speed Controller, Baffle Filters & LED Lights - 1300mm Deep
Product Advantages
- Made in Italy: Represents high-quality workmanship and long-lasting durability.
- Single-block structure made of AISI 304 stainless steel: Provides robust stability and easy cleaning.
- Grease-free labyrinth filters made of 18/10 stainless steel: Ensure efficient grease separation and hygienic operation.
Description
Product Overview
The ceiling hood with motor offers an efficient solution for professional ventilation in commercial kitchens and other demanding environments with a width of 1200mm. It is specifically designed for ceiling mounting and impresses with its robust construction and high-quality workmanship. The external control unit allows easy adjustment of the fan speed and lighting, significantly enhancing user comfort.
Product Details
The hood is made from a single-block structure of AISI 304 stainless steel, ensuring durability and easy cleaning. The surface is Scotch-Brite satin-finished, which is not only visually appealing but also facilitates maintenance. A drip-free, hermetic trough safely collects grease and features practical drain taps that simplify cleaning. For air filtration, grease-free labyrinth filters made of 18/10 stainless steel are integrated, guaranteeing high filtration performance. The compact and robust design allows for installation within minutes, keeping the installation effort low.
Conclusion and Areas of Application
This ceiling hood is ideal for use in commercial kitchens, catering establishments, and other areas where reliable and powerful ventilation is required. It impresses with efficient grease separation, ease of operation, and high-quality materials that ensure a long service life. Thanks to the integrated lighting and external controller, it is particularly user-friendly and versatile in application.
Installation & Operation
- ⚠️ Pipe diameters should always remain consistent or only be reduced professionally as planned.
- ⚠️ An incorrect reduction can affect the entire system.
Cleaning & Maintenance
- Modern flame protection filters made of stainless steel can be cleaned in the commercial dishwasher.
- Daily cleaning prevents the filters from burning on and becoming resinous.
- Carefully lift the filters out of the holder, as there may be drops of fat present.
- In case of heavy soiling, rinse coarse fat off with hot water.
- Wash in the dishwasher at a minimum of 60–70 °C using a degreasing detergent.
- The filters must be completely dry before being reinserted to prevent mould and bacterial growth.
Technical data
Dimensions
| Width | 1.200 mm |
|---|---|
| Depth | 1.300 mm |
| Height | 450 mm |
Drain size
| Width | 210 mm |
|---|---|
| Height | 230 mm |
Filter dimensions
| Width | 400 mm |
|---|---|
| Depth | 400 mm |
Details
| Conveyor volume | 1.600 m³/h/ h |
|---|---|
| Number of filters | 4 |
| Air turnover per hour | 1.300 l |
Connected load
| Power | 147 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 80 kg |
| Net weight | 70 kg |
Download / Exploded drawing
