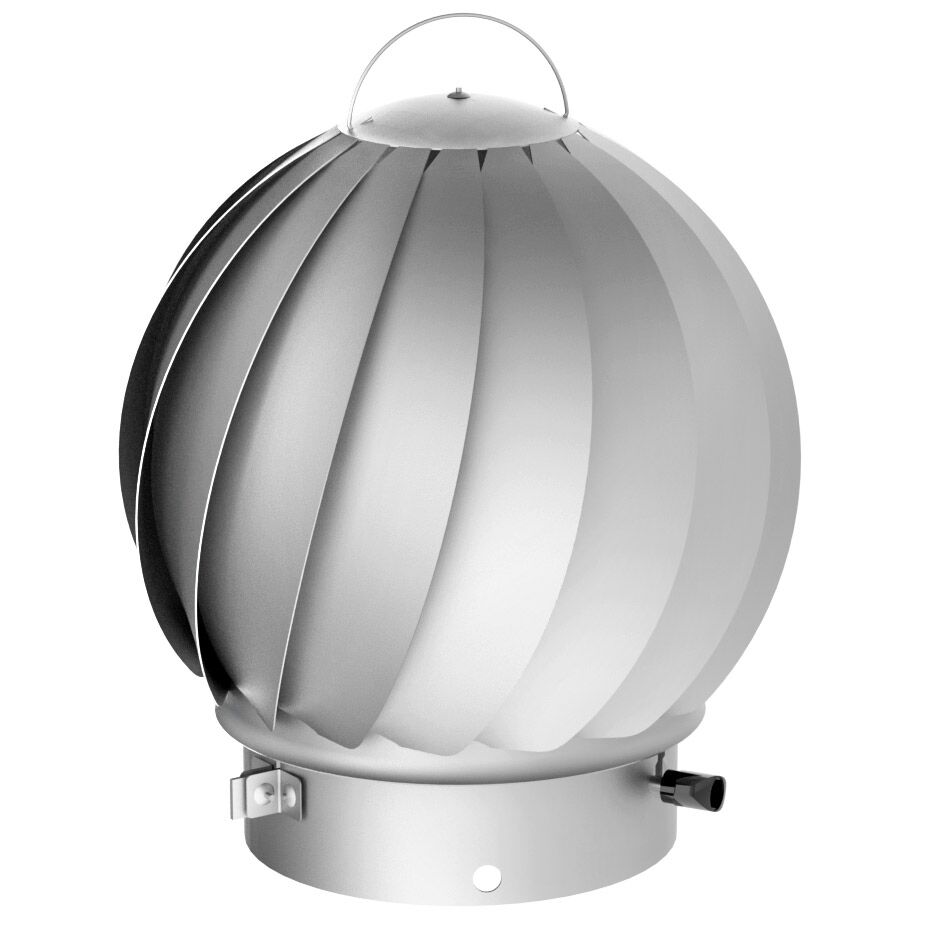

Chimney top - Rotating anti-downdraught cowl - Ø 200-250 mm - Stainless steel - 600°C solid fuel

Design

• Chimney top Ø 200-250mm

• For solid fuels up to 600 °C

• Prevents backflow of exhaust gases and ensures constant chimney intake

• Can also be used in combination with a ventilation system

• Rotates even at very low wind speeds

• The negative pressure generated in the ventilation or exhaust system improves the draught in the system.

• Requires no energy supply compared to electronic chimney fans

• Environmentally-friendly

• Suitable for the removal of trapped heat in attics, halls or barns

• Easy cleaning of top and exhaust pipe thanks to pipe holder and hinged rotor unit

• Low-vibration and quiet operation

• Simple assembly

Quality

• Made of stainless steel

• Protected against corrosion damages

• Matt stainless steel slats (anti-glare protection)

• Permanently lubricated ball bearings on moving parts

Dimensions

• Exterior dimensions W x D x H: 360 mm x 360 mm x 325 mm

Guidelines

• Manufactured in accordance with relevant hygiene and safety standards

• CE marking as proof of conformity with EU regulatory standards

Notes

• Installation should be carried out by a specialist (chimney sweep, chimney builder, chimney builder, roofer or ventilation builder).

• The chimney tops are high precision devices. To ensure proper operation, the blades must not be bent or otherwise damaged.

• The transport bracket must be removed after assembly.

• Depending on the diameter of the pipe, the adapter ESKAJ200 oder ESKAJ250 is required.
