* The picture may slightly differ from the original.

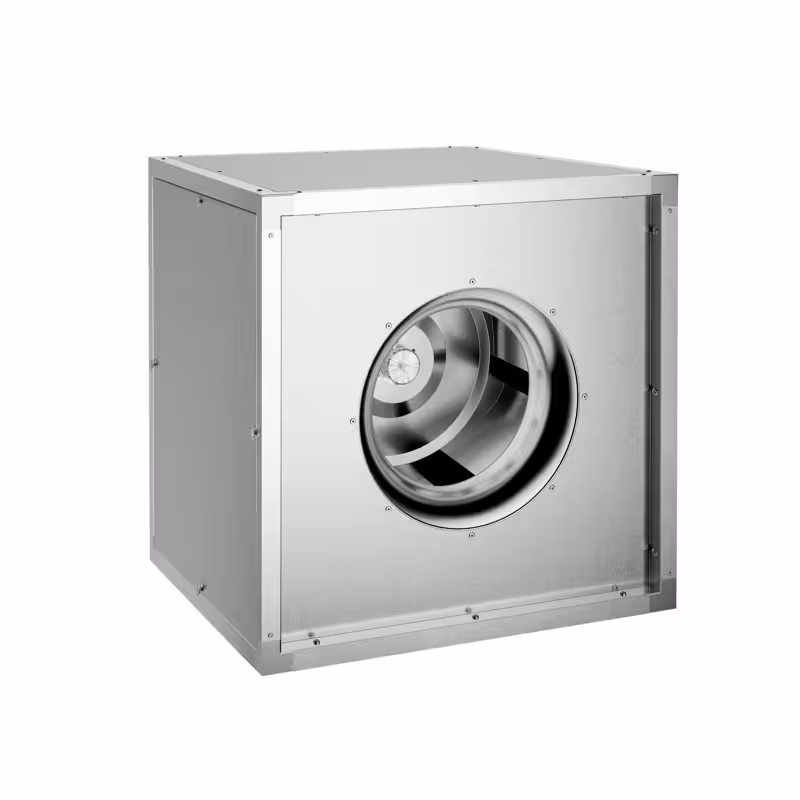

Airbox Pro Commercial Extractor Fan - 6000m³/h - 230V
SKU AS6000PRO
VDI 6000 PRO 1F 4P 1V
Guaranteed: Order by 12 noon for immediate dispatch!
Print* net price | gross price incl. 20% VAT.: £1,015.99
Accessories
Description
Design
- PREMIUM model
- Engine made in Italy
- With centrifugal ventilator
- Air intake already prepared
- Optimal performance with low electricity consumption
- Easy removable ventilator
- Easy-to-clean centrifugal fan with backward curved blades
- Motor directly coupled to the impeller
Quality
- Weatherproof covering made of galvanised steel sheet
- Heat and sound insulated (polyurethane hard foam insulation)
Notes
- To prevent possible damage to the motor and/or the appliance, it is essential to connect the thermal protection to the speed controller if the wiring diagram shows two lines provided for this purpose
- With single-phase motors, the thermal protection is often integrated in the motor so that no external connections to the speed controller are required
- Always check the electrical connections carefully before commissioning the fan and/or appliance. These may be located on the fan/device itself or in the connection box
- Damage caused by faulty electrical connections is excluded from the warranty
Guidelines
- Motor compliant with 2024/1834 EU
- Meets DIN 18869 - T1 according to VDI 2052
- Manufactured in accordance with relevant hygiene and safety standards
- CE marking as proof of conformity with EU regulatory standards
Technical data
Dimensions
| Width | 700 mm |
|---|---|
| Depth | 700 mm |
| Height | 700 mm |
Details
| Air turnover per hour | 6.000 m³ |
|---|---|
| Pumped liquid temperature | max. 110 °C |
Connected load
| Power | 650 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
| Amperage | 3,50 A |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Weight | 59 kg |
Download
Download / Exploded drawing
Download / Exploded drawing
