* The picture may slightly differ from the original.

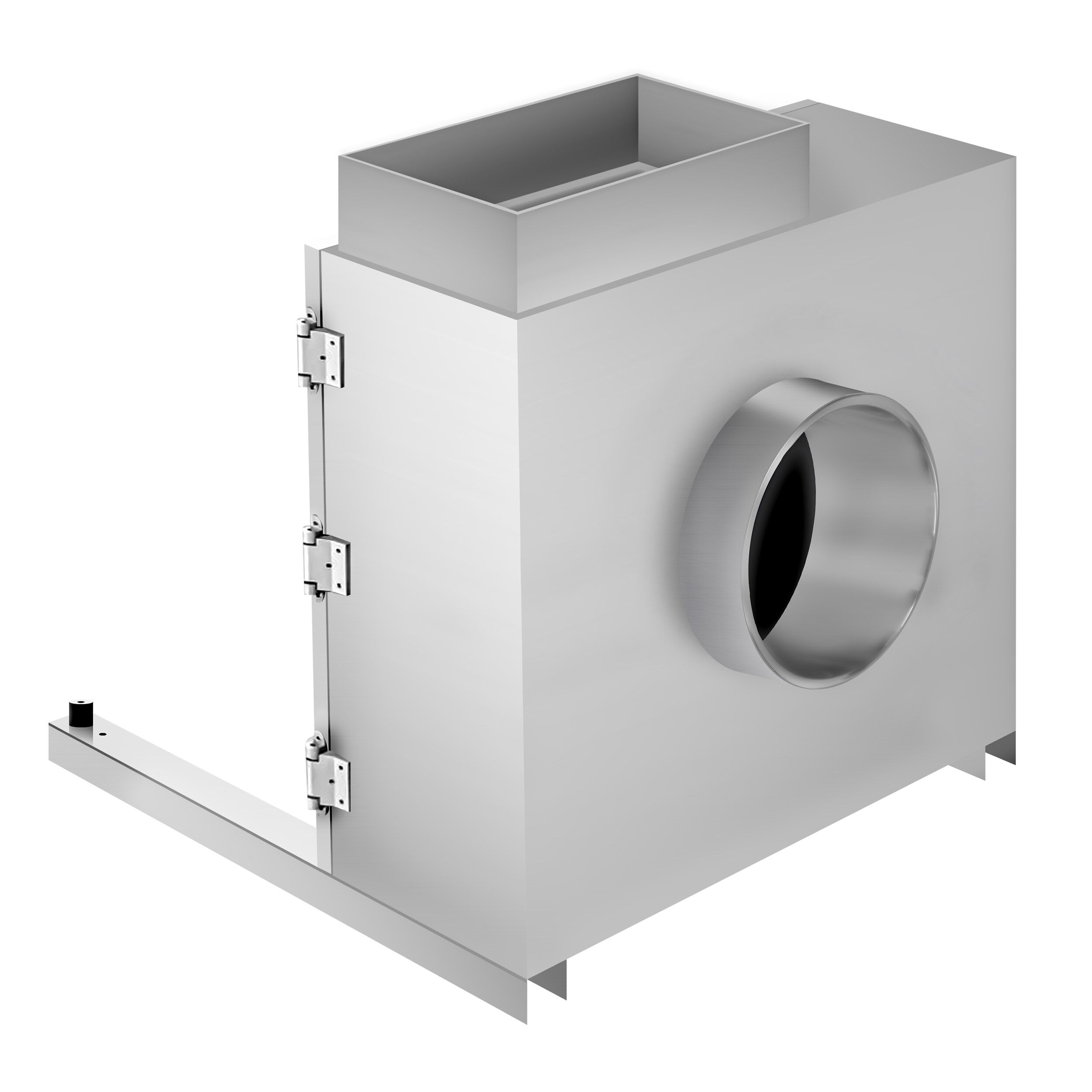

Airbox Pro Commercial Extractor Fan - 4000m³/h - 230V - Flip-top
Rate now
SKU AS4000WPRO
up to 120°C air temperature - VDI 4000 W PRO 1F 4P 1V
Guaranteed: Order by 12 noon for immediate dispatch!
Print* net price | gross price incl. 20% VAT.: £1,754.70
Accessories
Description
Product advantages
- Hinged inspection opening for easy maintenance and cleaning
- Specially designed for high temperatures up to 110 °C
- Perfectly suited for the exhaust air from charcoal barbecues
Design
- PREMIUM model
- Engine made in Italy
- Maximum engine power 4.000 m³
- With centrifugal ventilator
- Air intake already prepared
- Optimal performance with low electricity consumption
- Environmentally-friendly
- Easy removable ventilator
- Washable and easy to clean
Quality
- Weatherproof covering made of galvanised steel sheet
- Heat and sound insulated (polyurethane hard foam insulation)
- Reliable ventilation
Guidelines
- Engine according to 1253/2014 EU compliant
- Meets DIN 18869 - T1 according to VDI 2052
- Manufactured in accordance with relevant hygiene and safety standards
- CE marking as proof of conformity with EU regulatory standards
Notes
- To prevent possible damage to the motor and/or the appliance, it is essential to connect the thermal protection to the speed controller if the wiring diagram shows two lines provided for this purpose
- With single-phase motors, the thermal protection is often integrated in the motor so that no external connections to the speed controller are required
- Always check the electrical connections carefully before commissioning the fan and/or appliance. These may be located on the fan/device itself or in the connection box
- Damage caused by faulty electrical connections is excluded from the warranty
Technical data
Dimensions
| Width | 820 mm |
|---|---|
| Depth | 870 mm |
| Height | 913 mm |
Details
| Air turnover per hour | 4.000 m³ |
|---|---|
| Diameter of suction support | 360 mm |
| Pumping medium - temperature | -20 °C to 110 °C |
Connected load
| Power | 250 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
| Amperage | 2,30 A |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Weight | 72 kg |
Download
Download / Exploded drawing
Download / Exploded drawing
