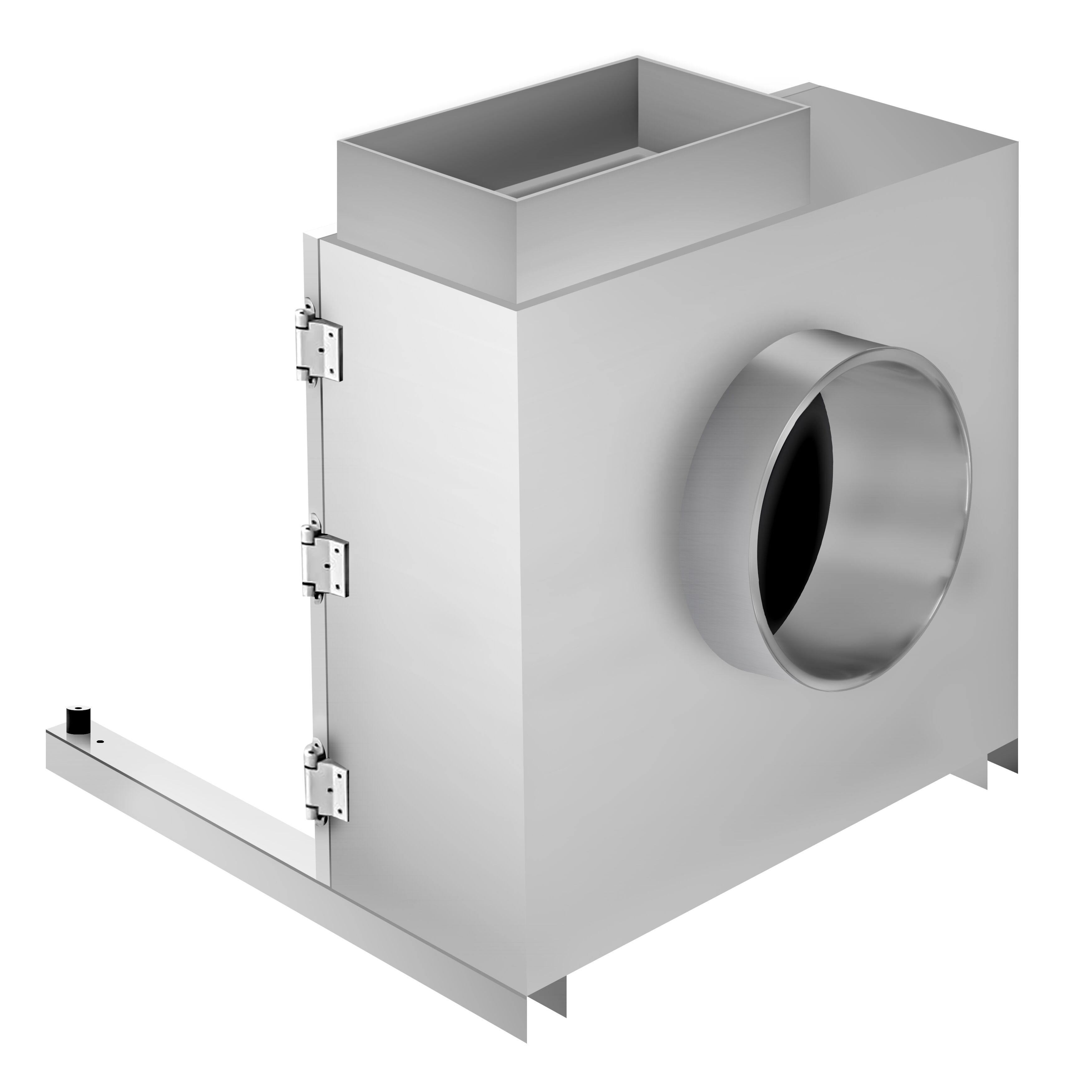

Airbox Pro Commercial Extractor Fan - 2500m³/h - 230V - Flip-top - suitable for commercial charcoal grills

Product advantages

• Hinged inspection opening for easy maintenance and cleaning

• Specially designed for high temperatures up to 110 °C

• Perfectly suited for the exhaust air from charcoal barbecues

Design

• PREMIUM model

• Engine made in Italy

• Maximum engine power 2.500 m³

• With centrifugal ventilator

• Air intake already prepared

• Optimal performance with low electricity consumption

• Environmentally-friendly

• Easy removable ventilator

• Washable and easy to clean

Quality

• Weatherproof covering made of galvanised steel sheet

• Heat and sound insulated (polyurethane hard foam insulation)

• Reliable ventilation

Guidelines

• Engine according to 1253/2014 EU compliant

• Meets DIN 18869 - T1 according to VDI 2052

• Manufactured in accordance with relevant hygiene and safety standards

• CE marking as proof of conformity with EU regulatory standards

Notes

• To prevent possible damage to the motor and/or the appliance, it is essential to connect the thermal protection to the speed controller if the wiring diagram shows two lines provided for this purpose

• With single-phase motors, the thermal protection is often integrated in the motor so that no external connections to the speed controller are required

• Always check the electrical connections carefully before commissioning the fan and/or appliance. These may be located on the fan/device itself or in the connection box

• Damage caused by faulty electrical connections is excluded from the warranty
