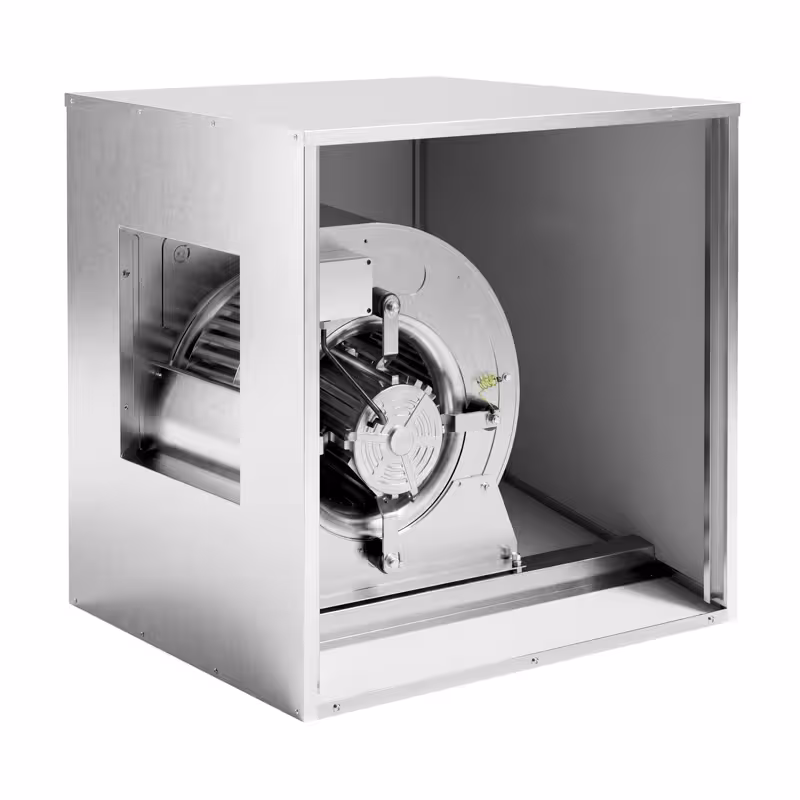

Airbox Commercial Extractor Fan - 5000m³/h - 230V
SKU AC5000
MCK 12/12 X18 2011009 1F 6P 1V
Guaranteed: Order by 12 noon for immediate dispatch!
Print* net price | gross price incl. 20% VAT.: £715.96
Accessories
Description
Design
- Engine made in Italy
- Square air outlet
- Optimal performance with low electricity consumption
- Environmentally-friendly
- Motor connected directly with the impeller
Quality
- Frame made from Aluminum profile
- Low-noise and weather-proof covering
Guidelines
- Engine according to 1253/2014 EU compliant
- ErP Guideline 2018
- Manufactured in accordance with relevant hygiene and safety standards
- CE marking as proof of conformity with EU regulatory standards
Notes
- To prevent possible damage to the motor and/or the appliance, it is essential to connect the thermal protection to the speed controller if the wiring diagram shows two lines provided for this purpose
- With single-phase motors, the thermal protection is often integrated in the motor so that no external connections to the speed controller are required
- Always check the electrical connections carefully before commissioning the fan and/or appliance. These may be located on the fan/device itself or in the connection box
- Damage caused by faulty electrical connections is excluded from the warranty
Technical data
Dimensions
| Width | 750 mm |
|---|---|
| Depth | 750 mm |
| Height | 750 mm |
Details
| Speed regulation | Governor |
|---|---|
| Air turnover per hour | 5.000 m³ |
Connected load
| Power | 560 Watt |
|---|---|
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
| Amperage | 6,30 A |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Weight | 58 kg |
Download
Download / Exploded drawing
Download / Exploded drawing
