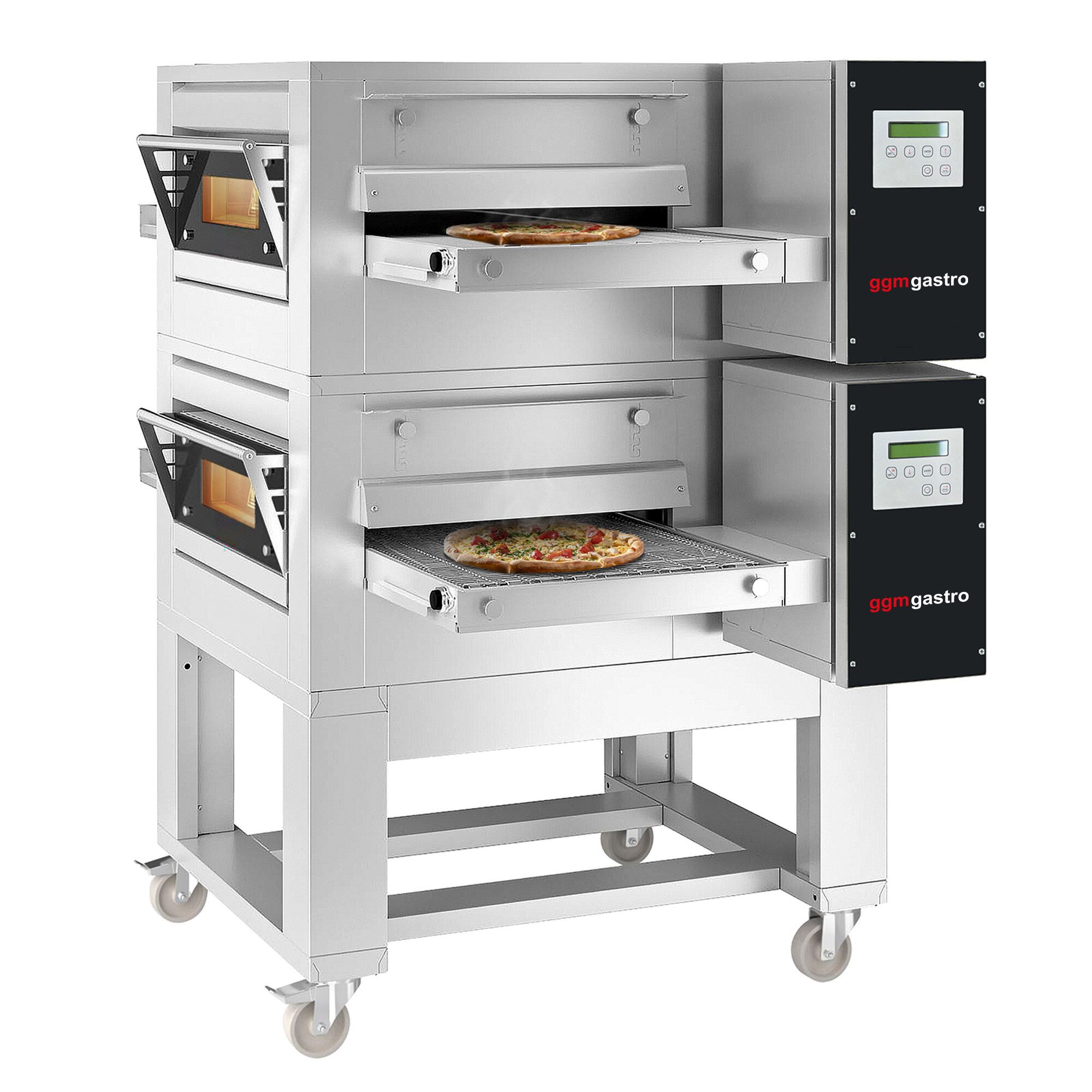

(2 pieces) Commercial Gas Conveyor Pizza Oven – Double Stack - 1000mm Belt - 400 pizzas/h
Rate now
SKU 2#DPZ20030G#UDZ2003G3
Ca. 400 pizzas per hour
Print* net price | gross price incl. 20% VAT.: £25,529.86
Accessories
Description
Product advantages
- Made in Italy - quality product made in Italy
- No. 1 among continuous ovens in Europe
- The maximum temperature of 320 °C is more than sufficient to achieve perfect results, thanks to the optimized ventilation system
- 10 Cooking programs - setting options for each program: cooking time, temperature and power for the upper and lower part of the oven
- ECONOMY function for lower production quantities - save money and energy
Notes
- When first turning on the oven, allow it to heat up slowly. Increase the temperature by 50°C every 30 minutes until a temperature of 300 °C is achieved. Keeping the door open, maintain a temperature of 300 °C for a period of four hours.
- The direction of travel of the conveyor belt can be changed by a specialist
- We would like to point out that the use of an exhaust air system is recommended to ensure the best possible performance and optimal use of the product.
Design
- With safety thermocouple that monitors the flame and automatically switches off the gas supply to the appliance when the flame goes out
- Set article consisting of: 2 x pizza oven & base
- Professional device for staff costs savings
- For 200 pizzas in /hrs. of Ø 30 cm
- Maximum energy saving thanks to top-quality insulation
- Integrated safety thermostat
- With digital temperature display
- Programmable baking time
- Patented system for a cool external housing
- Heat-resistant control window
- Efficient use with gas
- All DPZ pass-through ovens can be stacked
- Easy to use
Quality
- Body made from high-quality Stainless Steel
- Base frame made of Stainless Steel
Oven chamber
- Optimal and even heat distribution
- Operating temperature is reached in record time
- Electronic temperature control
- Easily accessible interior
- pass-through oven ( reccirculating air ventilation)
- Temperature: 320 °C
- High hourly productivity
- Perfect baking results, even without prior experience
- Opening and closing of doors is no longer necessary
- No monitoring of the baking process necessary
- No more shovels or push-in devices necessary
- Always crispy baking results
- Product is transported directly to the area of use
- Side access ( for monitoring of the baking process)
Scope of delivery
- Frame
- 4 castors
- Nozzles for liquid gas and natural gas
Guidelines
- Manufactured in accordance with relevant hygiene and safety standards
- CE marking as proof of conformity with EU regulatory standards
- Material complies with European food standards
Technical data
Overall dimensions
| Width | 1.980 mm |
|---|---|
| Depth | 2.450 mm |
| Height | 1.920 mm |
Oven dimensions
| Width | 1.980 mm |
|---|---|
| Depth | 2.450 mm |
| Height | 720 mm |
Internal dimensions
| Width | 1.000 mm |
|---|---|
| Depth | 1.300 mm |
| Height | 100 mm |
| Conveyor belt width | 800 mm |
Base frame dimensions
| Width | 1.715 mm |
|---|---|
| Depth | 1.300 mm |
| Height | 480 mm |
Details
| Number of chambers | 2 Baking chambers |
|---|---|
| Pizzas per hour | 200 units á Ø 30 cm |
| Baking time | 3,5 min |
| Maximum lead time | 30,00 ' |
| Minimum turnaround time | 2 Minute(s) and 20 Seconds |
Cooking system
| Heating method | air circulation |
|---|---|
| Temperature up to | 320 °C |
Connected load
| Operating mode | Gas |
|---|---|
| Connection | Gas |
| Gas connection | 1/2 Zoll |
Connected loads conveyor belt
| Power | 90 kW |
|---|---|
| Connection | Electrical |
| Power | 1,76 kW |
| Voltage | 230V |
| Phase(s) | 1N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Partly Mounted |
| Weight | 1.499 kg |
