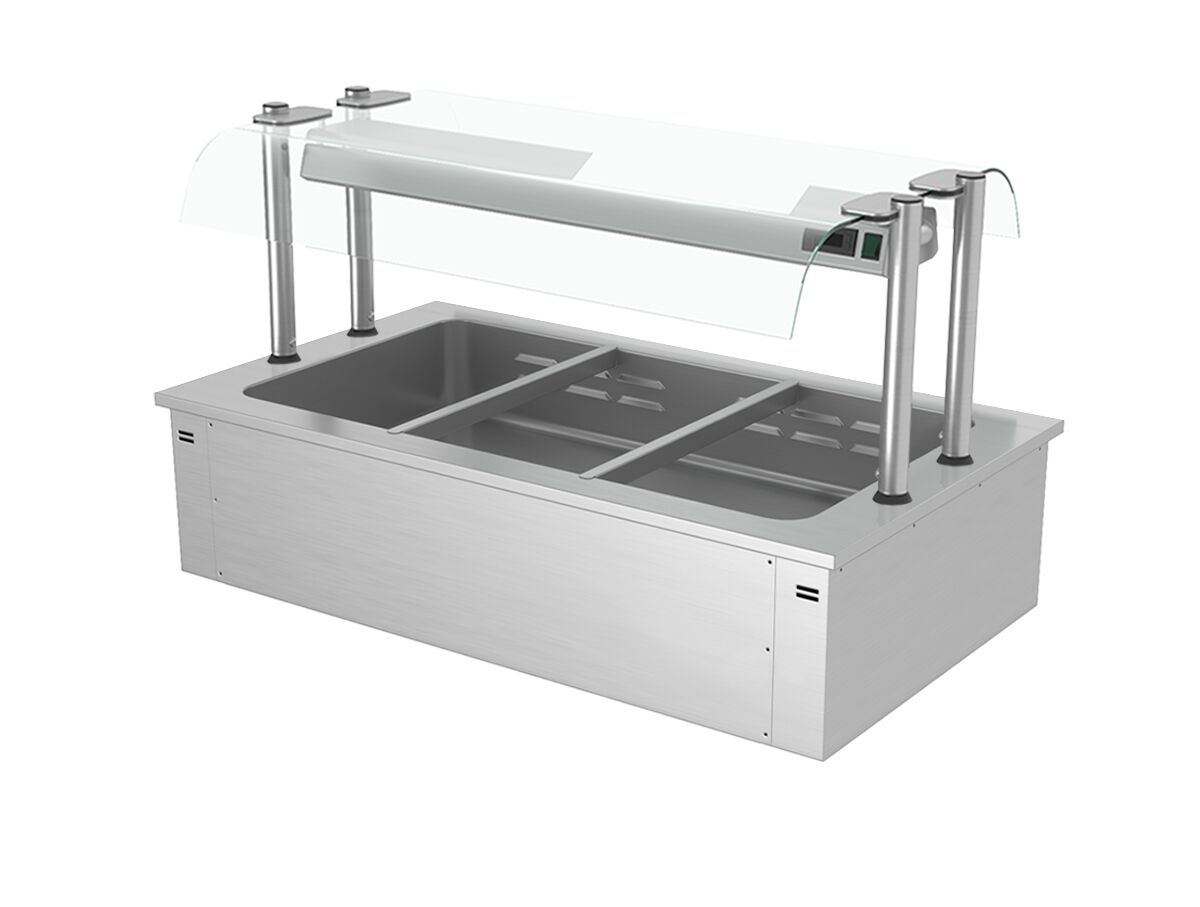

Commercial built-in bain marie - 1100 mm - 3 x GN 1/1 - incl. chilled well

Design

• Set item consisting of:

• Bain-marie

• Cooling tub for installation

• Delivered without lighting strip

• Built-in module(s)

• With contact surface and double-sided glass cough guard

• Bain Marie

• 3x 1/1 GN container (optional)

• Removable separating wall

• On / off switch

• Control in separate control box

• Water supply with solenoid valve

• Electrical heating element

• Working temperature: 65 °C - 85 °C

• Drainage through overflow pipe

• Built-in cooling tub

• Working temperature: 2 °C - 8 °C

• 5x 1/1 GN container (possible)

• Control in separate control box

• Compressor unit on pull-out bracket

• Refrigerant: R404a

Quality

• Made from high-quality Stainless Steel

• Outer panel galvanized

• Rounded corners

• Polyurethane foam insulation

Connection

• Bain Marie

• Power: 2,59 kW

• Electrical connection: 400V / 3N/PE / 50 Hz

• Built-in cooling tub

• Power: 0.41 kW

• Electric connection: 3N/PE / 230 Volt / 50 Hz

Dimensions

• Outer dimensions W x D x H: 1.135 mm x 640 mm x 965 mm

Scope of delivery

• Bars are included in the delivery

• GN containers not included in the scope of delivery

• Heating elements and lighting are not included in the delivery

Guidelines

• CE marking as proof of conformity with EU regulatory standards

• Material complies with European food standards

• Manufactured in accordance with relevant hygiene and safety standards

Notes

• The device requires a fixed water connection with a pressure between 0,5 und 1,5 BAR.
