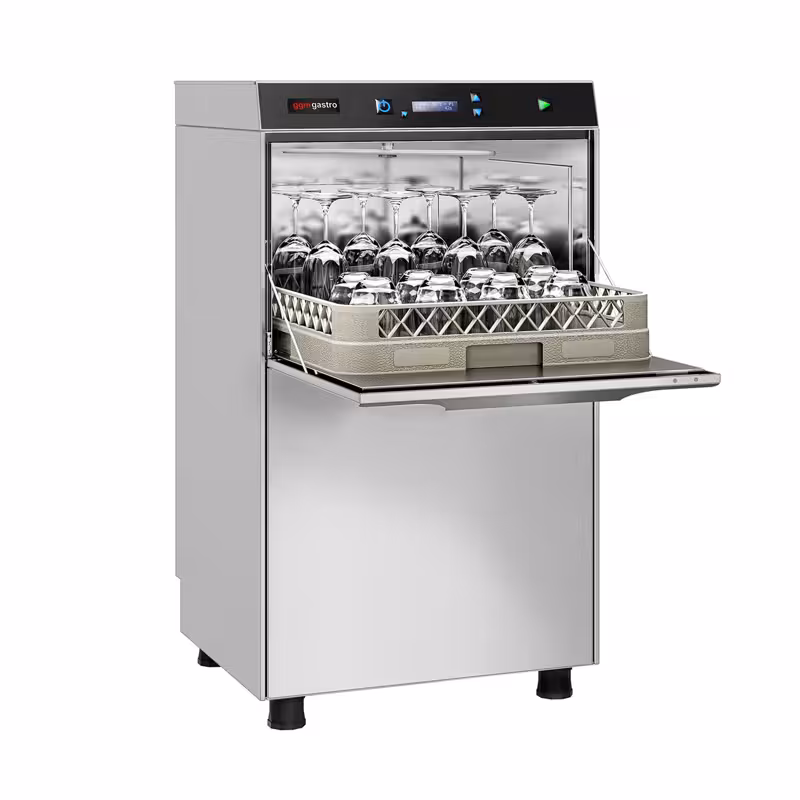

Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 3.9kW - with Detergent & Rinse Aid Dosing Pumps

* die Abbildung kann vom Original leicht abweichen.
Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 3.9kW - with Detergent & Rinse Aid Dosing Pumps
Produktvorteile
- Made in Italy: Represents high-quality workmanship and quality from Italy.
- Reduced noise level: The double-walled insulation ensures a significantly quieter working environment.
- Efficient thermal insulation: Heat radiation is minimised, saving energy and keeping the surroundings cooler.
Beschreibung
Product Overview
The double-walled dishwasher is a robust freestanding unit specially designed for professional use. With a power output of 3.9 kW, it offers high washing performance and is ideal for gastronomy, canteens, or large kitchens. The machine features an electronic control panel with an LCD display, enabling intuitive and user-friendly operation.
Product Details
This appliance is made from high-quality stainless steel, ensuring long service life and easy cleaning. The dishwasher is equipped with two wash arms as well as rotating, non-clogging wash and rinse arms that provide effective cleaning. Additionally, it is fitted with a detergent and rinse aid pump that guarantees precise dosing of cleaning agents. The wash chamber with a double filter system and a removable, roller-shaped filter facilitate the disposal of dirt and waste. The door opening includes a safety system that makes operation safer.
Conclusion and Areas of Application
The double-walled dishwasher impresses with its efficient cleaning and robust construction. It is perfectly suited for use in areas with high hygiene requirements where large quantities of crockery must be washed quickly and reliably. Thanks to the electronic control and the various programmes, it offers flexibility for different washing needs. It is ideal for gastronomy, hotels, canteens, and catering companies.
Installation & Bedienung
- Information about the mains voltage can be found in the operating instructions.
- Please note that the appliance can be operated with both a hot water connection and a cold water connection.
- The values of the washing programmes can only be guaranteed with a hot water connection.
- A detailed guide can be found under the "Download" and "Video" tabs.
Reinigung & Pflege
- For flawless operation, it is recommended to descale the device regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Use only chlorine-free cleaners to avoid damage to the device.
Technische Daten
Dimensions
| Width | 582 mm |
|---|---|
| Depth | 610 mm |
| Height | 1.230 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Height | 340 mm |
|---|
Water connection
| Water inlet | 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Max. Crockery height | 320 mm |
Flushing process
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 20 Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
| Water consumption per run | 2,60 l |
Capacity
| Tank capacity | 23 l |
|---|---|
| Boiler capacity | 5,50 l |
Connected load
| Power | 3,90 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 74 kg |
| Net weight | 55 kg |
Download / Explosionszeichnung
