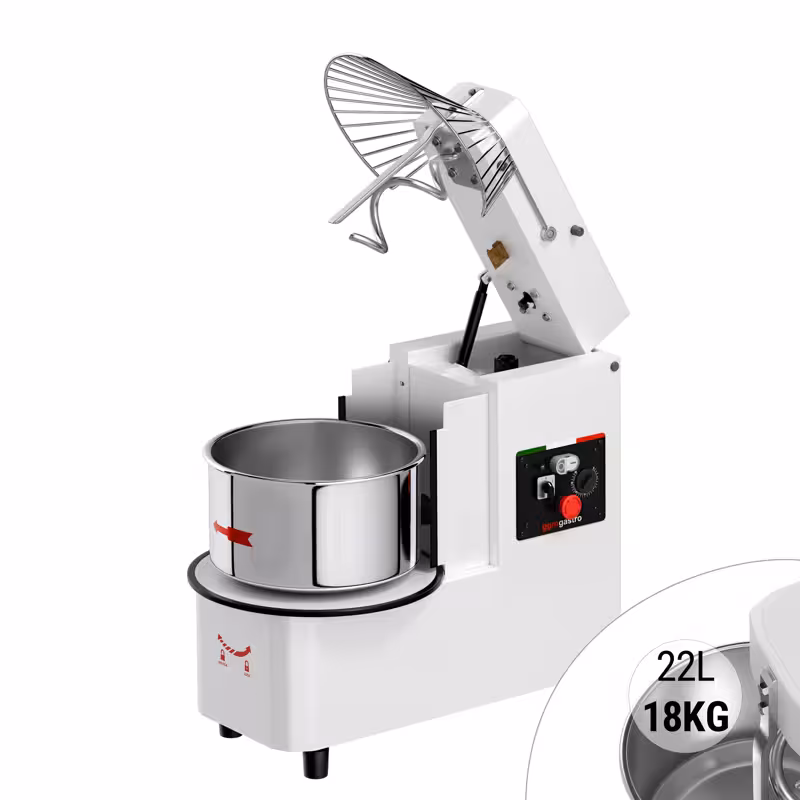

Please note filling quantity! (see picture)

• Please note that the boiler must always rotate in the direction of the arrow during the kneading process. If the boiler rotates in the direction opposite to the arrow, a specialist must check the assignment of phases

• The device must be installed by a specialist

• Installation instructions can be found on the device

Design

• Extremely low noise

• Oversized, cone-shaped spiral

• Suitable for doughs with at least 60% hydration

• Maximum filling quantity: 80% of the boiler volume

• Superior performance with low power consumption (good for the environment)

• Boiler removable

• Agitator hinged

• Revolutions per min.: dough hook 92-139 rpm

• Revolutions per min.: tank 9-14 rpm

• Manual timer

• With emergency stop switch

Quality

• High-quality stainless steel

• With removable stainless steel tank

Technology

• Gear motor in oil bath

• Chain tensioner for axis alignment

• Compressed spiral thread

Connection

• Power: 550 Watt - 750 Watt

• Electrical connection: 400V / 3N/PE / 50 Hz

Dimensions

• External dimensions W x D x H: 720 mm x 420 mm x 730 mm

Guidelines

• Manufactured in accordance with relevant hygiene and safety standards

• CE marking as proof of conformity with EU regulatory standards

• Material complies with European food standards

Notes

• Only for pizza dough
