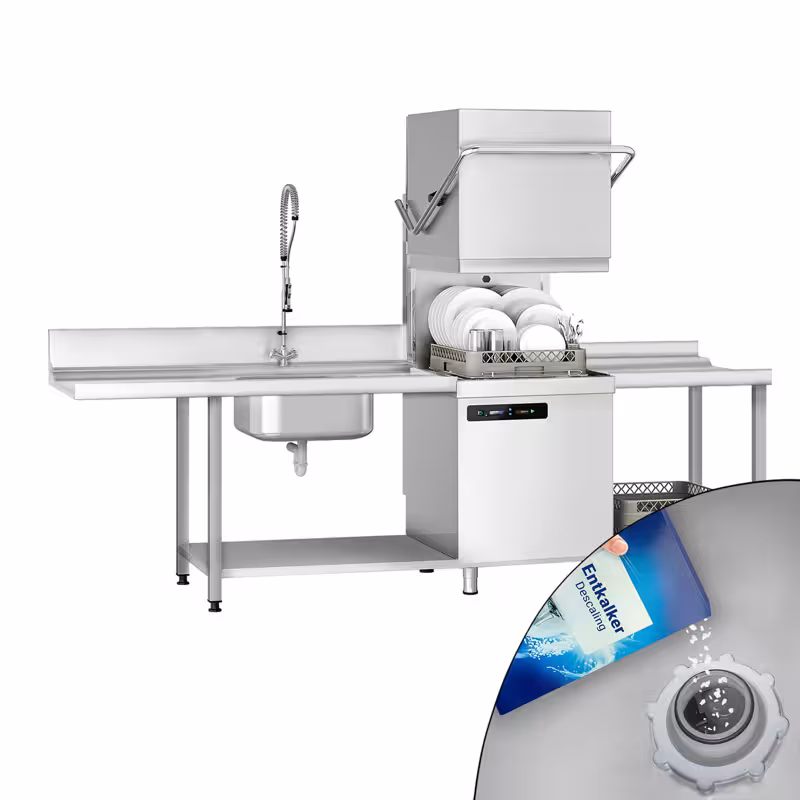

Pass Through Dishwasher - Mechanical Controls - 7.1kW - incl. Inlet Table right, Outlet Table right - with Integral Water Softener - with Detergent & Rinse Aid Dosing Pumps
Insertion height: 430mm
SKU DS430-EK#SET-R
* The picture may slightly differ from the original.
Guaranteed: Order by 12 noon for immediate dispatch!
Print* net price | gross price incl. 0% VAT.: €3,763.99
Pass Through Dishwasher - Mechanical Controls - 7.1kW - incl. Inlet Table right, Outlet Table right - with Integral Water Softener - with Detergent & Rinse Aid Dosing Pumps
Rate now
SKU DS430-EK#SET-R
Insertion height: 430mm
Print* net price | gross price incl. 0% VAT.: €3,763.99
Accessories (8)
Spare Parts (3)
Product Advantages
- Made in Italy: Represents high quality and precise workmanship, ensuring a long service life.
- Automatic wash cycle start: The wash cycle begins immediately after closing the hood, enhancing user convenience.
- Adjustable runners: Allow flexible loading and unloading of baskets, facilitating adaptation to various workflows.
- Flexible table placement: Infeed and discharge tables can also be positioned at corners, supporting integration into different kitchen layouts.
- Constant temperature and water pressure: The special rinsing system and insulated boiler ensure consistent wash results.
- Integrated descaling system: Eliminates the need for external descalers and reduces maintenance effort.
- Built-in standby system: Saves energy when the machine is not in active use and lowers operating costs.
Description
Product Overview
The pass-through dishwasher is a powerful freestanding unit specifically designed for professional use in the gastronomy and large-scale kitchens. With a power output of 7.1 kW, it ensures efficient and rapid cleaning of dishes and pots. The machine is equipped with a digital control panel, allowing easy operation and monitoring of the washing process. Particularly practical are the inlet table on the left and the outlet table on the right, which optimise the workflow.Product Details
The body and tables are made from high-quality AISI 304 stainless steel, guaranteeing robustness and durability. The machine features two wash arms and two rinse arms that rotate and are non-clogging to ensure thorough cleaning. A dual filter system in the washing chamber ensures a clean wash result and protects the technology from contamination. The electric detergent pump and the electric rinse aid dosing pump ensure optimal dosing of cleaning agents. The door is equipped with a safety system that enhances user comfort and safety.Conclusion and Areas of Application
This pass-through dishwasher is ideal for use in large kitchens, canteens, and catering businesses that require a reliable and economical solution for cleaning dishes and cookware. It impresses with its robust construction, efficient cleaning technology, and user-friendly control. Thanks to the integrated tables and compact design, the machine fits seamlessly into existing workflows and increases productivity in the dishwashing area.Installation & Operation
- ⚠️ Information on the mains voltage can be found in the operating instructions.
- ⚠️ The device can be operated with either a hot or cold water connection.
- ⚠️ The values of the wash programmes are only guaranteed with a hot water connection.
- ⚠️ A detailed manual is available under "Download" and "Video".
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the appliance regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable only for chlorine-free cleaners.
Technical data
Overall dimensions
| Width | 2.855 mm |
|---|---|
| Depth | 785 mm |
| Height closed | 1.480 mm |
| Height open | 1.930 mm |
Dimensions per item
| Dimensions push-through dishwasher W x D x H | 655 mm x 785 mm x 1.480 mm |
|---|---|
| Dimensions of feeder table W x D x H | 1.200 mm x 700 mm x 850 mm |
| Dimensions dish spray W x D x H | 140 mm x 600 mm x 1.070 mm |
| Dimensions discharge table W x D x H | 1.000 mm x 520 mm x 865 mm |
| Basin dimensions W x D x H | 500 mm x 400 mm x 260 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Insertion height | 430 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water outlet | Ja |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Max. Crockery height | 405 mm |
Flushing process
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 20 Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
| Water consumption per run | 2,60 l |
Capacity
| Tank capacity | 30 l |
|---|---|
| Boiler capacity | 7 l |
Connected load
| Power | 7,10 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N/PE |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 190 kg |
| Net weight | 161 kg |
Download / Exploded drawing
Download / Exploded drawing
Safety and disposal instructions
Safety and disposal instructions
Download / Exploded drawing
Safety and disposal instructions
