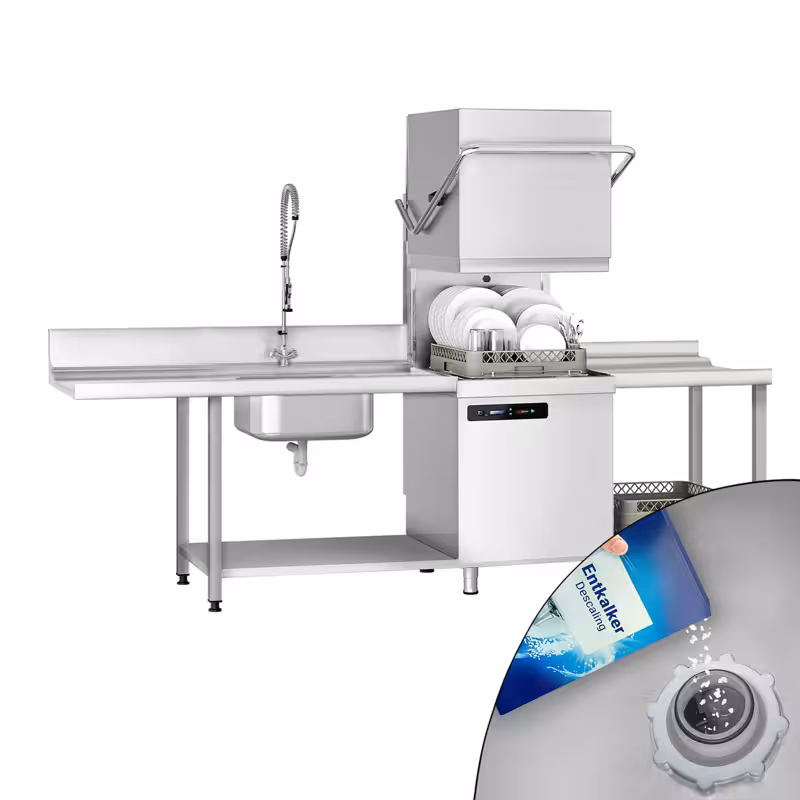

Pass Through Dishwasher - Digital Controls - 7.1kW - incl. Inlet Table left, Outlet Table right - with Detergent & Rinse Aid Dosing Pumps, Drain Pump

* The picture may slightly differ from the original.
Pass Through Dishwasher - Digital Controls - 7.1kW - incl. Inlet Table left, Outlet Table right - with Detergent & Rinse Aid Dosing Pumps, Drain Pump
Product Advantages
- Made in Italy: Represents high-quality craftsmanship and reliable quality.
- Automatic wash cycle start: Saves time by starting automatically after closing the hood.
- Adjustable running rails: Allow flexible loading and unloading of baskets from all sides.
- Flexible table placement: Inlet and outlet tables can also be positioned at an angle, facilitating installation.
- Special rinsing system with insulated boiler: Maintains temperature and rinse water pressure consistently for optimal cleaning results.
- Integrated descaling system: Eliminates the need for external descalers, reducing maintenance effort.
- Built-in standby system: Saves energy through automatic shutdown during idle periods.
Description
Product Overview
The conveyor dishwasher is a high-quality and powerful solution for professional dishwashing in the catering and large kitchen sectors. With a power output of 7.1 kW, it ensures efficient and rapid washing of dishes and pots. The machine is designed as a freestanding unit and features a practical infeed table on the left and an outfeed table on the right, which optimise workflow.
Product Details
The body and tables are made of high-quality AISI 304 stainless steel, ensuring long service life and easy cleaning. The machine is equipped with 2 wash arms and 2 rinse arms that rotate and do not clog, guaranteeing thorough cleaning. A dual filtration system in the wash chamber ensures clean water and consistently high washing results. The electronic rinse aid dosing pump and the detergent pump allow precise and automatic dosing of cleaning agents. Additionally, the machine features a alkali pump and a safety system for door opening, enhancing user comfort and safety.
Conclusion and Areas of Application
This conveyor dishwasher is ideal for use in large kitchens, canteens, and catering businesses seeking a reliable, fast, and hygienic cleaning solution. It impresses with its robust construction, ease of operation, and effective cleaning power. Thanks to the integrated infeed and outfeed tables, it is perfectly designed for a smooth workflow. Overall, this appliance offers an optimal combination of performance, safety, and user comfort for professional dishwashing applications.
Installation & Operation
- ⚠️ Information on mains voltage can be found in the operating instructions.
- ⚠️ The appliance can be operated with either a hot or cold water connection.
- ⚠️ The wash programmes function optimally only with a hot water connection.
- ⚠️ A detailed manual is available under "Download" and "Video".
Cleaning & Maintenance
- For flawless operation, it is recommended to descale the appliance regularly – suitable descalers are available as accessories.
- If a descaler is installed upstream, please note that the cartridge must be regenerated after approximately 1,500 - 2,000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable only for chlorine-free cleaners.
Technical data
Overall dimensions
| Width | 2.855 mm |
|---|---|
| Depth | 785 mm |
| Height closed | 1.480 mm |
| Height open | 1.930 mm |
Dimensions per item
| Dimensions push-through dishwasher W x D x H | 655 mm x 785 mm x 1.480 mm |
|---|---|
| Dimensions of feeder table W x D x H | 1.200 mm x 700 mm x 850 mm |
| Dimensions dish spray W x D x H | 140 mm x 600 mm x 1.070 mm |
| Dimensions discharge table W x D x H | 1.000 mm x 520 mm x 865 mm |
| Basin dimensions W x D x H | 500 mm x 400 mm x 260 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Insertion height | 430 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water outlet | Ja |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Max. Crockery height | 405 mm |
Flushing process
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 20 Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
| Water consumption per run | 2,60 l |
Capacity
| Tank capacity | 30 l |
|---|---|
| Boiler capacity | 7 l |
Connected load
| Power | 7,10 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N/PE |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 190 kg |
| Net weight | 161 kg |
Download / Exploded drawing
