• Made in Italy: Stands for high-quality workmanship and reliable quality. This guarantees a durable and robust system.
• Filtration & Deodorisation: Effectively removes unwanted odours from the air. Ensures clean and pleasant indoor air.

Efficient Exhaust Air Purification for Diverse Applications

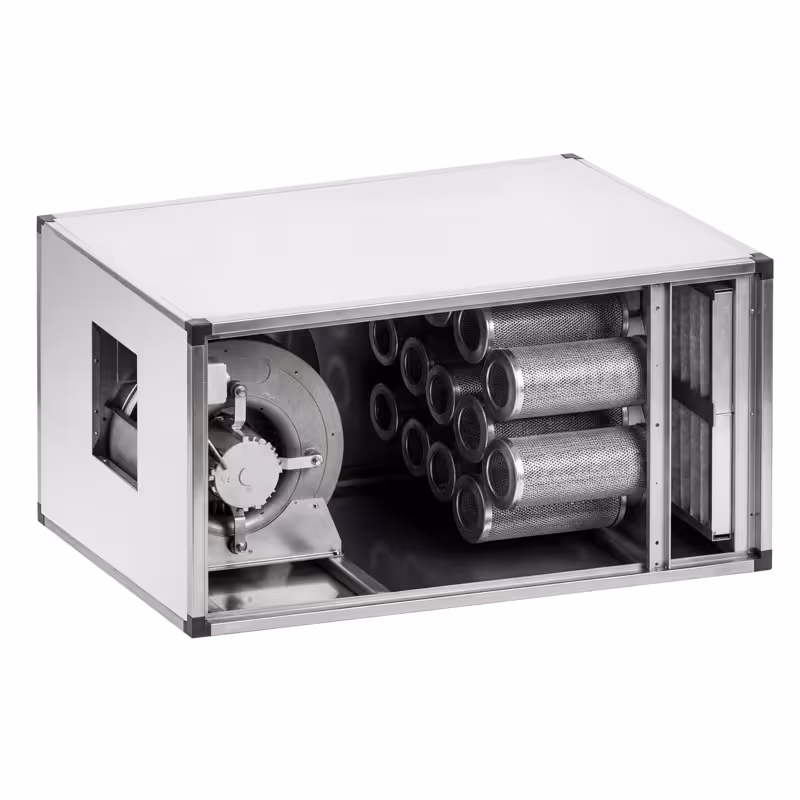

The exhaust air purification system with motor offers a high capacity of 4,400 m³ and is ideal for the extraction and purification of air in industrial and commercial environments. It reliably removes pollutants and odours from the exhaust air. Thanks to the integrated motor, a constant and powerful air flow is ensured.

Robust Construction and Powerful Filtration Technology

The system features pre-filters and activated carbon filters that together achieve a separation efficiency of 70%, effectively binding pollutants. The low-noise and weatherproof casing made of fire-galvanised sheet metal on the inside and stainless steel on the outside ensures long service life and low maintenance requirements. The frame construction made of aluminium profiles guarantees stability, while the 5 mm thick insulation, certified according to UNI EN 13501-1, provides thermal and acoustic insulation.

Conclusion and Areas of Application

This exhaust air purification system impresses with its low energy consumption and environmentally friendly operation. It is perfectly suited for businesses requiring reliable and efficient air purification, for example in production facilities, workshops, or laboratories. The combination of robust design and high-quality filtration technology makes it a sustainable solution for clean air and improved occupational safety.

• To prevent possible damage to the motor and/or the device, it is essential to connect the thermal protection to the speed controller, provided the wiring diagram shows two lines designated for this purpose.
• In single-phase motors, the thermal protection is often integrated into the motor, so no external connections to the speed controller are required.
• Before commissioning the fan and/or device, always carefully check the electrical connections. These may be located on the fan/device itself or in the terminal box.
• Damage caused by faulty electrical connections is excluded from the warranty.
• Only original spare parts guarantee the specified performance values regarding efficiency, air flow volume, and pressure.
• The use of non-original components that impair the proper functioning of the device is excluded from the warranty.
