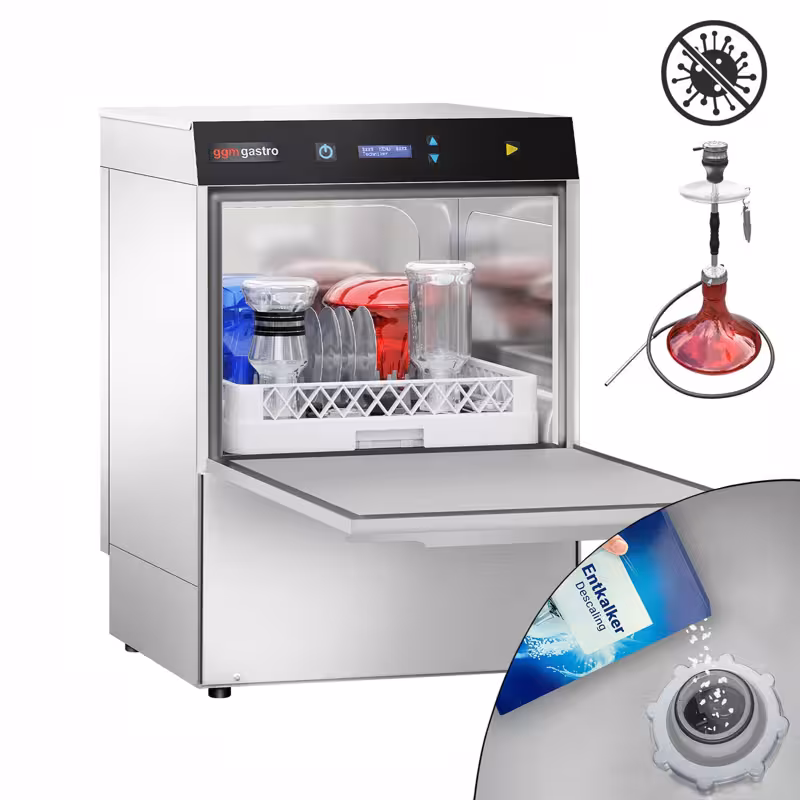

Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 4.9kW - with Drain, Rinse Aid & Detergent Pumps

* The picture may slightly differ from the original.
Double-skinned Undercounter Commercial Dishwasher - 500mm Basket - Digital Controls - 4.9kW - with Drain, Rinse Aid & Detergent Pumps
Product Advantages
- Made in Italy: Signifies high-quality craftsmanship and durable quality.
- Integrated descaling system: Eliminates the need for external descalers, saving effort and costs.
- Double-walled insulation: Significantly reduces noise levels and heat emission for a more pleasant operation.
- High rinse temperature of 90°C: Ensures thorough cleaning and optimal hygiene through effective bacteria removal.
Description
Product Overview
The double-walled SHISHA dishwasher is a powerful solution in the field of dishwashers, specially designed for efficient and thorough cleaning. With a power output of 4.9 kW, it provides sufficient power for intensive use in the gastronomy or professional sector. The unit is digitally controlled and impresses with an electronic control panel with LCD display, enabling simple and intuitive operation.
Product Details
The machine features an extra-large insertion height, which facilitates the cleaning of larger or specialised parts such as shishas. The special washing chamber is optimally tailored for cleaning shishas. Thanks to the double-walled construction, the unit is particularly robust and offers good insulation. The integrated alkaline pump ensures the removal of wastewater even over height differences. For perfect cleaning, detergent, rinse aid, and alkaline pumps are present, guaranteeing automatic dosing. The electric detergent supply and the dual filter system in the washing chamber ensure excellent cleaning results. Additionally, the machine has four programmes and a washing arm with rinse aid arms, which provide even and thorough cleaning.
Conclusion and Areas of Application
The SHISHA dishwasher is ideal for professional use in shisha bars, gastronomy establishments, and other areas where specialised cleaning solutions are required. It stands out due to its high washing performance and robust construction made of high-quality stainless steel. Thanks to the versatile functions and easy operation, it is perfectly suited to handle even demanding cleaning tasks quickly and reliably. Whether for the daily cleaning of shishas or generally in the gastronomy sector – this unit offers an efficient and hygienic solution.
Installation & Operation
- ⚠️ Information about the mains voltage can be found in the operating manual.
- ⚠️ The diameter of the hookah neck should ideally be between 26 mm and 36 mm.
- ⚠️ A cold water connection is required for this device.
Cleaning & Maintenance
- For smooth washing, the appliance and components should be descaled using the connected descaler!
- If you have a descaler installed upstream, please note that the cartridge must be regenerated after approximately 1500 - 2000 litres of water flow.
- The actual maximum flow rate depends on the water hardness.
- Suitable exclusively for chlorine-free cleaners.
Technical data
Dimensions
| Width | 582 mm |
|---|---|
| Depth | 610 mm |
| Height | 822 mm |
Basket dimensions
| Width | 500 mm |
|---|---|
| Depth | 500 mm |
Rack height
| Height | 405 mm |
|---|
Water connection
| Water inlet | R 3/4" |
|---|---|
| Water drain | 1" 3/4 |
Details
| Inlet water temperature | 55 °C |
|---|---|
| Washing temperature | 50 - 60 °C |
| Purge temperature | 82 °C - 85 °C |
| Sound level | 62 dB |
| Max. Crockery height | 320 mm |
Flushing process
| Rinse program 1 | Rinse time 60 at max 60 Baskets/h |
|---|---|
| Rinse program 2 | Rinse time 120 at max 30 Baskets/h |
| Rinse program 3 | Rinse time 180 at max 120 Sekunden Baskets/h |
| Rinse program 4 | Rinse time 480 at max 8 Baskets/h |
| Water consumption per run | 2,60 l |
Capacity
| Tank capacity | 23 l |
|---|
Connected load
| Power | 4,90 kW |
|---|---|
| Voltage | 400V |
| Phase(s) | 3N/PE |
| Frequency | 50 Hz |
Delivery
| Shipping method | Haulage |
|---|---|
| Delivered as | Mounted |
| Gross weight | 68 kg |
| Net weight | 65 kg |
Download / Exploded drawing
